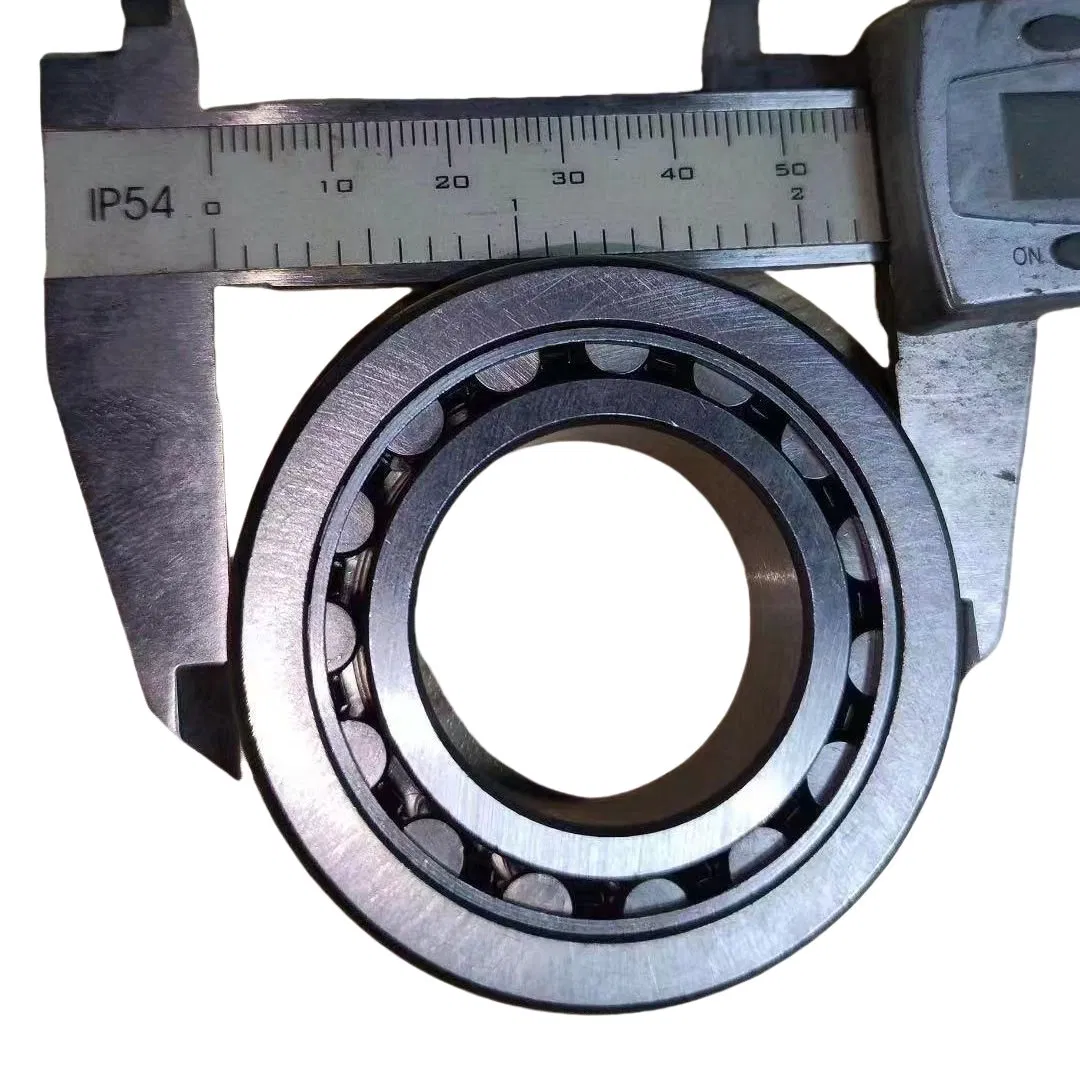

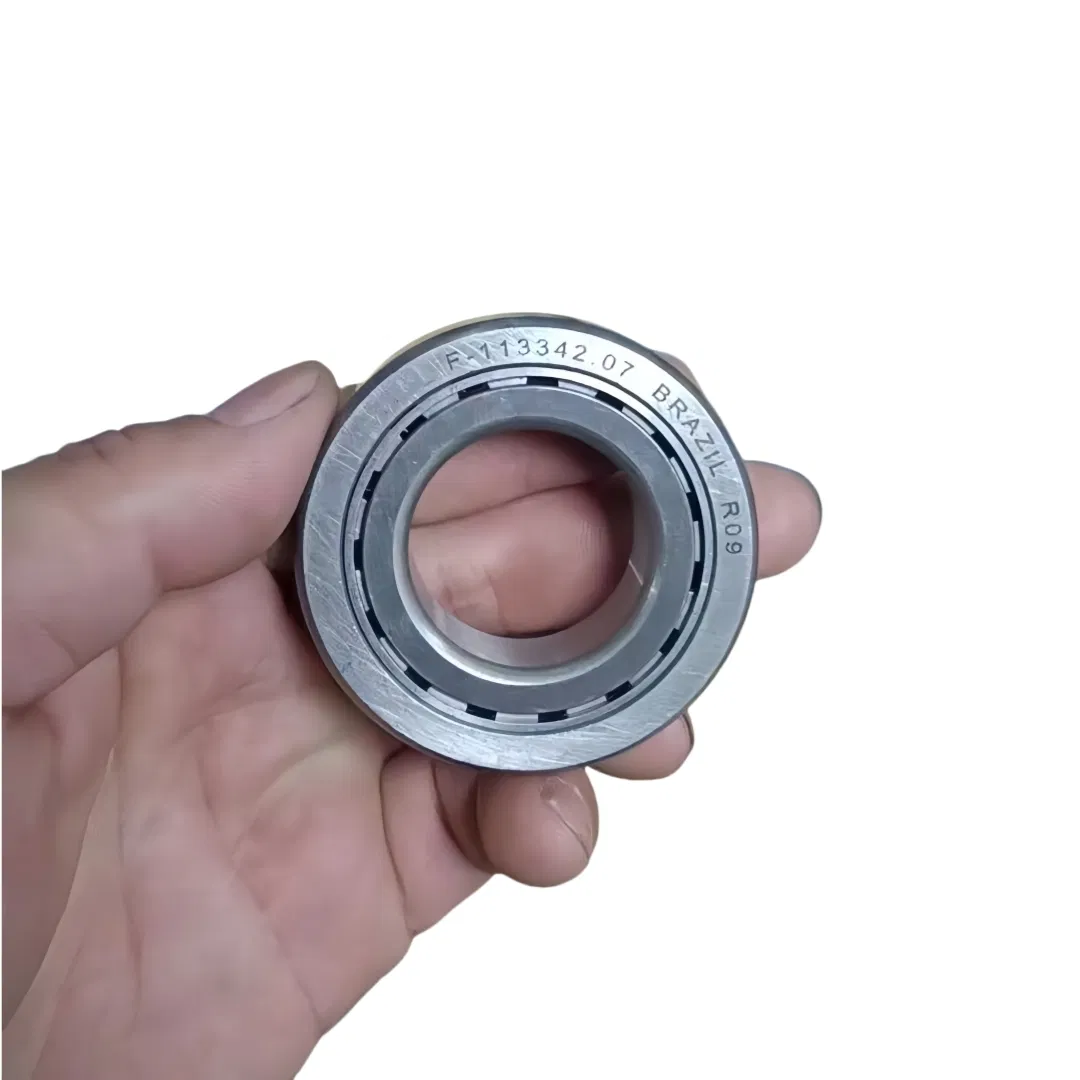

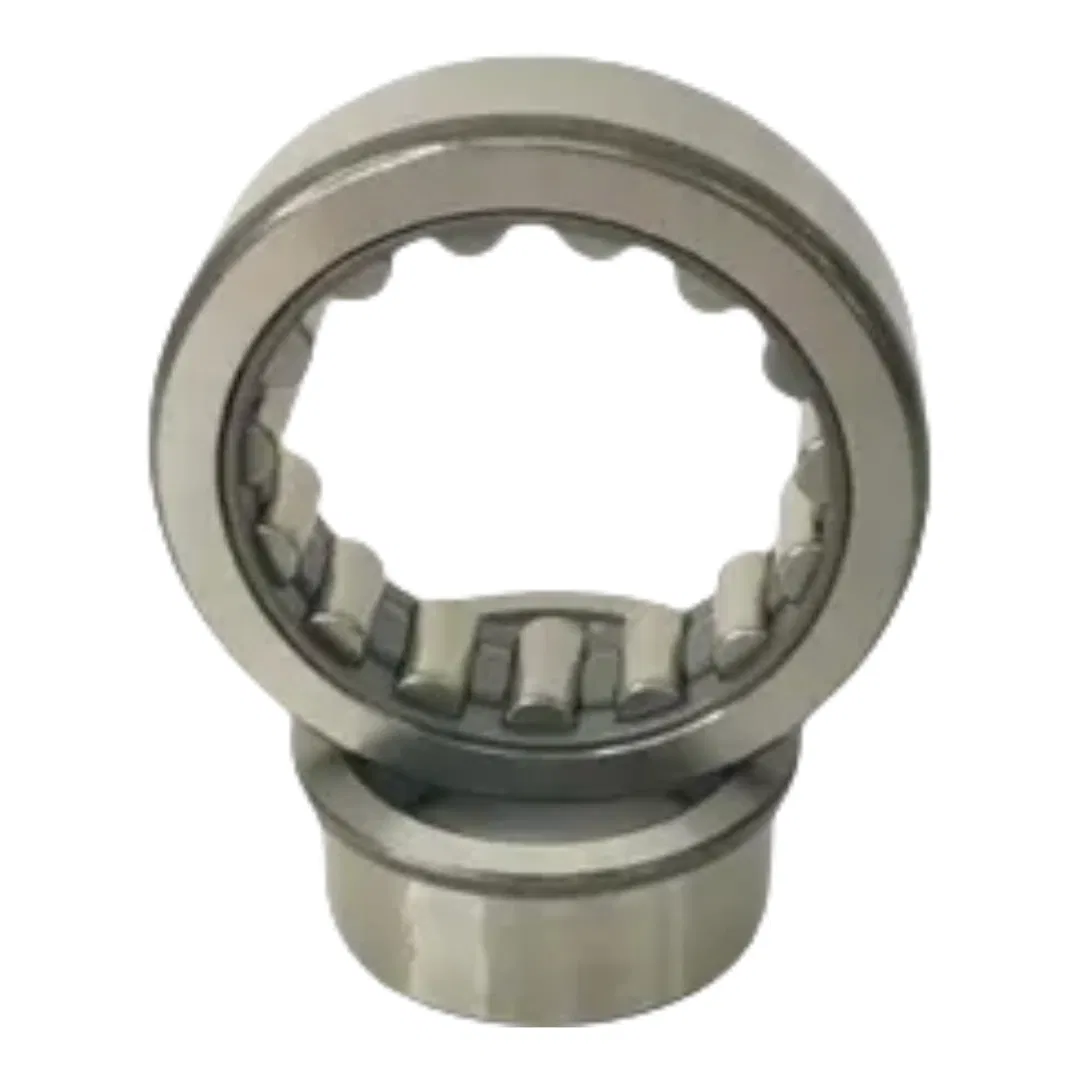

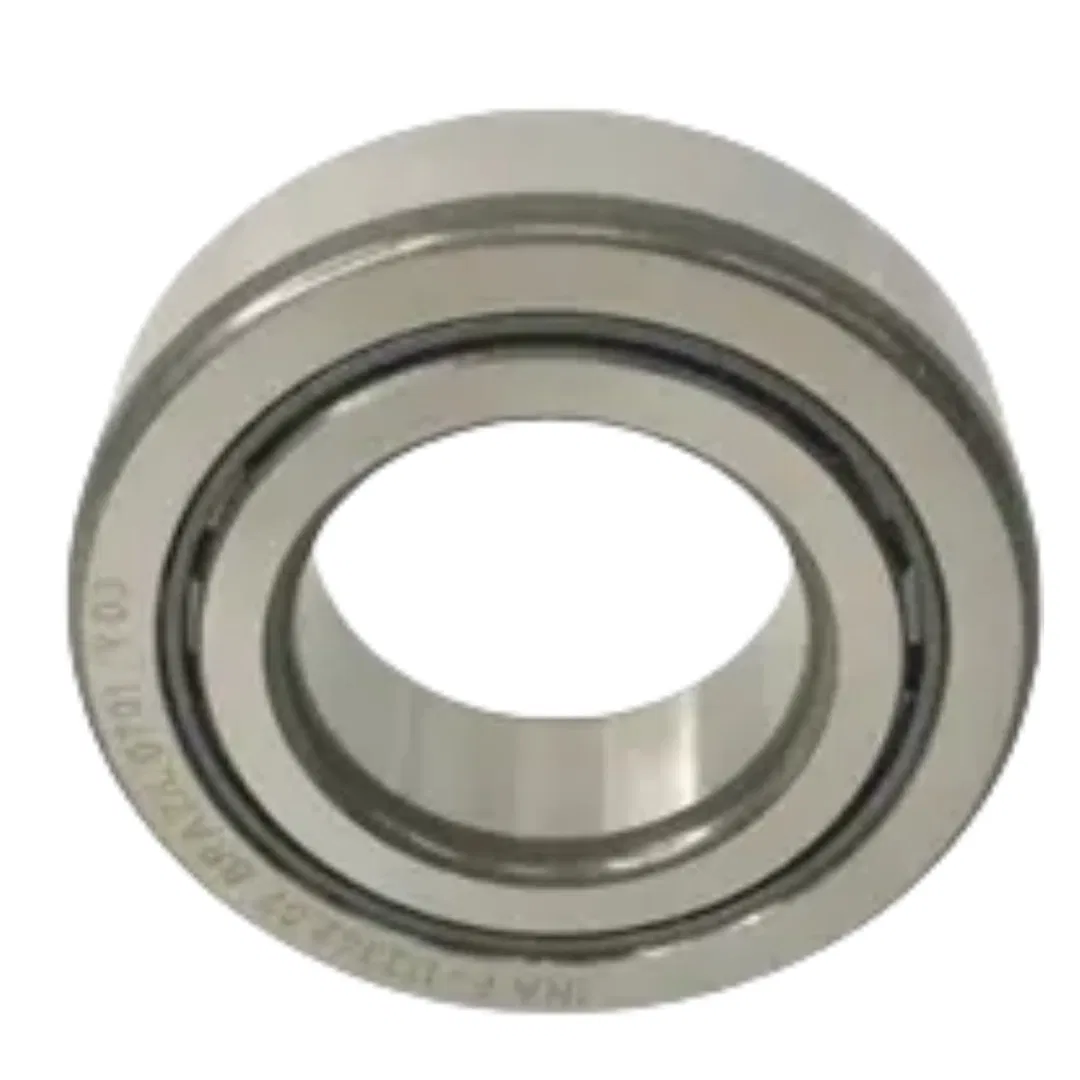

Cylindrical Roller Bearing Needle Roller Bearings Motorcycle Bearings F-113342.07 F-113282.3 F-239956.02 F-113274.01-0010 F-239956.02 F-113712 Pgdf11334207
|
Still deciding? Get samples of $ !
Request Sample
|
| Customization: | Available |
|---|---|
| Rolling Body: | Roller Bearings |
| The Number of Rows: | Single |
Suppliers with verified business licenses
Audited Supplier Audited by an independent third-party inspection agency
Basic Info.
Product Description
| Height (mm) | 16 |
| Weight (Kg) | 0.2 |
| Flange offset (mm) | |
| Inner diameter (mm) | 30.00 |
| Outer diameter (mm) | 58.00 |
| Diameter between holes (mm) |
Imperial
| Height (in) | 0.63 |
| Weight (Ib) | 0.44 |
| Flange offset (in) | 0.00 |
| Inner diameter (in) | 1.18 |
| Outer diameter (in) | 2.28 |
| Diameter between holes (in) | 0.00 |
F-113342.07.KI PGD F11334207 PGD F113342.07 F-113342.07.NJ F-113342.07 91001-KRM-870 91001-KRM-872 91001KRM870 91001KRM872 8E-NK1-30X58X17-14 PX1 NK1-30X58X17-14 PX1 NKI-30X58X17-14 PX1 8E-NKI-30X58X17-14 PX1 809020 F-809020.ZL
Technical Brief: UJK Motorcycle Bearings
1. Function & Key Features
UJK bearings are precision components designed to support rotating shafts in motorcycles, reducing friction, ensuring alignment, and enhancing durability under high-speed, high-load, and variable-temperature conditions. Key features include:
-
Material: High-carbon chromium steel (e.g., SUJ2) or stainless steel for corrosion resistance1.
-
Sealing: Options like 2RS (double rubber seals) or ZZ (metal shields) prevent contamination from dust/moisture1.
-
Precision: Tolerance classes up to P4 (ISO standard) for reduced vibration and noise1.
-
Special Designs: Angular contact bearings (e.g., AC) handle combined radial/axial loads; tapered rollers (e.g., 30200 series) suit wheel hubs1.
2. Model Identification System
UJK follows ISO/ABMA bearing codes. A typical model (e.g., 6205-2RS/C3) is decoded as:
-
Basic Code:
-
6: Type (e.g., 6 = Deep Groove Ball Bearing).
-
2: Dimension series (width/diameter profile, e.g., 2 = light series).
-
05: Bore size = 05×5 = 25 mm (for codes ≥04, multiply by 5)12.
-
-
Suffixes:
-
-2RS: Double rubber seals.
-
/C3: Radial clearance > standard (suits thermal expansion)1.
-
3. Size-to-Model Conversion
To identify a UJK model from dimensions:
-
Bore Diameter (d):
-
If 20-480 mm, calculate: d = Last two digits of model × 5 (e.g., 05 → 25 mm)2.
-
For d < 20 mm: 00=10 mm, 01=12 mm, 02=15 mm, 03=17 mm1.
-
-
Outer Diameter (D) & Width (B): Cross-reference with dimension tables (no direct formula)23.
Example: A bearing with d=25 mm, D=52 mm, B=15 mm corresponds to 62052.
4. Motorcycle-Specific Design
-
High RPM: Cage designs (e.g., brass M or polymer T) minimize centrifugal force1.
-
Load Capacity: Cylindrical roller bearings (e.g., NU, NJ series) for drive sprockets; thrust bearings for clutch assemblies1.
-
Temperature: Suffixes like X28 (200°C limit) for exhaust/crankcase areas1.
