Gearbox Long Bearing Deep Groove Ball Bearing Bearing Distributors Inc 031bc05 30.6X59X16.6 with ISO
|
Still deciding? Get samples of $ !
Request Sample
|
| Customization: | Available |
|---|---|
| Package: | Plastic Tube or Single Box |
| Precision: | P0 P6 P5 |
Suppliers with verified business licenses
Audited Supplier Audited by an independent third-party inspection agency
Basic Info.
Product Description

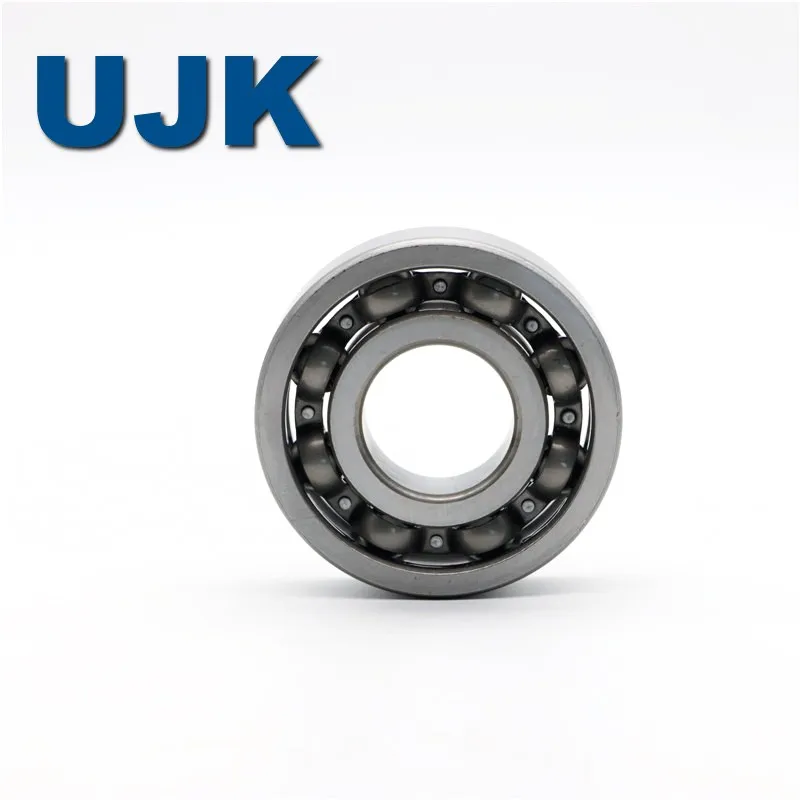

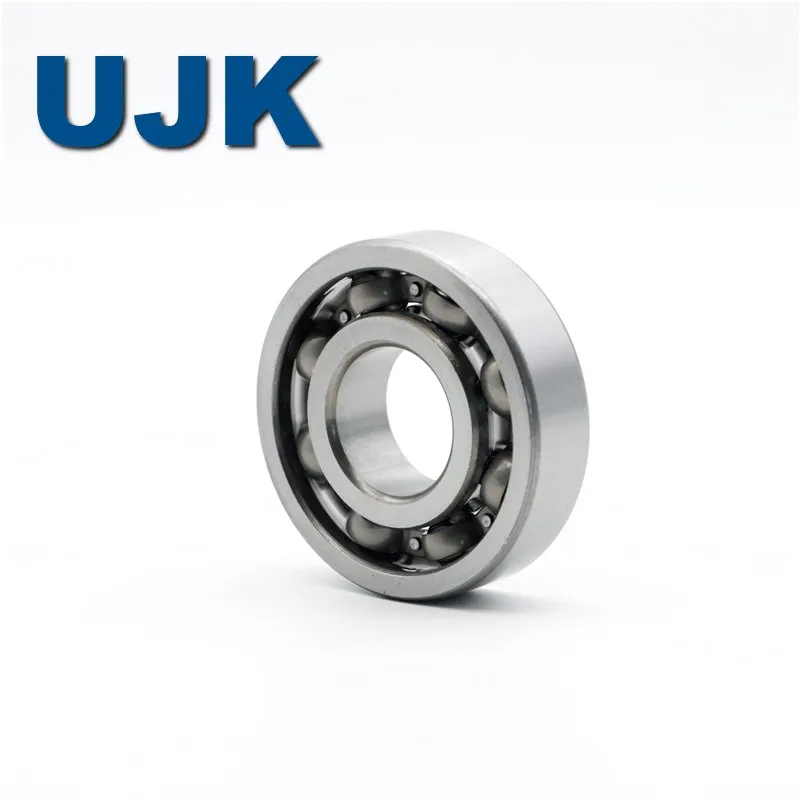

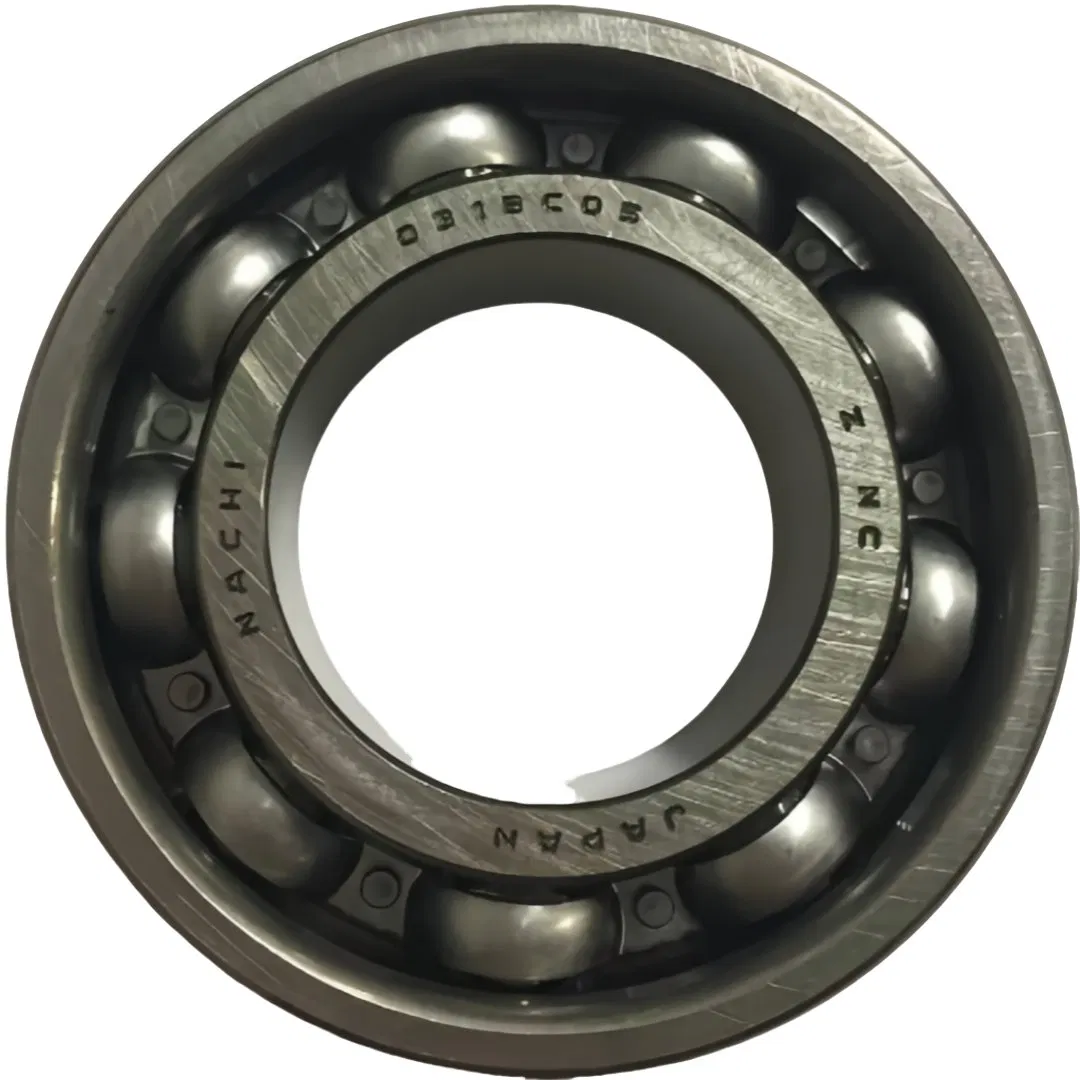

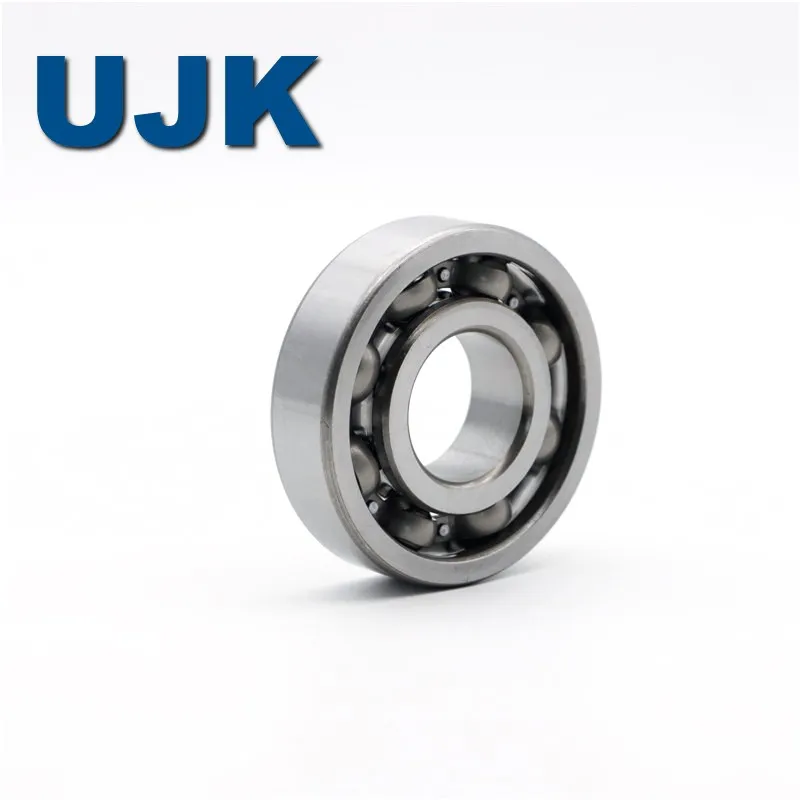

Gearbox deep groove ball Bearing 031BC05 30.6x59x16.6 with ISO
Technical Brief: UJK Motorcycle Bearings
1. Function & Key Features
UJK bearings are precision components designed to support rotating shafts in motorcycles, reducing friction, ensuring alignment, and enhancing durability under high-speed, high-load, and variable-temperature conditions. Key features include:
-
Material: High-carbon chromium steel (e.g., SUJ2) or stainless steel for corrosion resistance1.
-
Sealing: Options like 2RS (double rubber seals) or ZZ (metal shields) prevent contamination from dust/moisture1.
-
Precision: Tolerance classes up to P4 (ISO standard) for reduced vibration and noise1.
-
Special Designs: Angular contact bearings (e.g., AC) handle combined radial/axial loads; tapered rollers (e.g., 30200 series) suit wheel hubs1.
2. Model Identification System
UJK follows ISO/ABMA bearing codes. A typical model (e.g., 6205-2RS/C3) is decoded as:
-
Basic Code:
-
6: Type (e.g., 6 = Deep Groove Ball Bearing).
-
2: Dimension series (width/diameter profile, e.g., 2 = light series).
-
05: Bore size = 05×5 = 25 mm (for codes ≥04, multiply by 5)12.
-
-
Suffixes:
-
-2RS: Double rubber seals.
-
/C3: Radial clearance > standard (suits thermal expansion)1.
-
3. Size-to-Model Conversion
To identify a UJK model from dimensions:
-
Bore Diameter (d):
-
If 20-480 mm, calculate: d = Last two digits of model × 5 (e.g., 05 → 25 mm)2.
-
For d < 20 mm: 00=10 mm, 01=12 mm, 02=15 mm, 03=17 mm1.
-
-
Outer Diameter (D) & Width (B): Cross-reference with dimension tables (no direct formula)23.
Example: A bearing with d=25 mm, D=52 mm, B=15 mm corresponds to 62052.
4. Motorcycle-Specific Design
-
High RPM: Cage designs (e.g., brass M or polymer T) minimize centrifugal force1.
-
Load Capacity: Cylindrical roller bearings (e.g., NU, NJ series) for drive sprockets; thrust bearings for clutch assemblies1.
-
Temperature: Suffixes like X28 (200°C limit) for exhaust/crankcase areas1.
