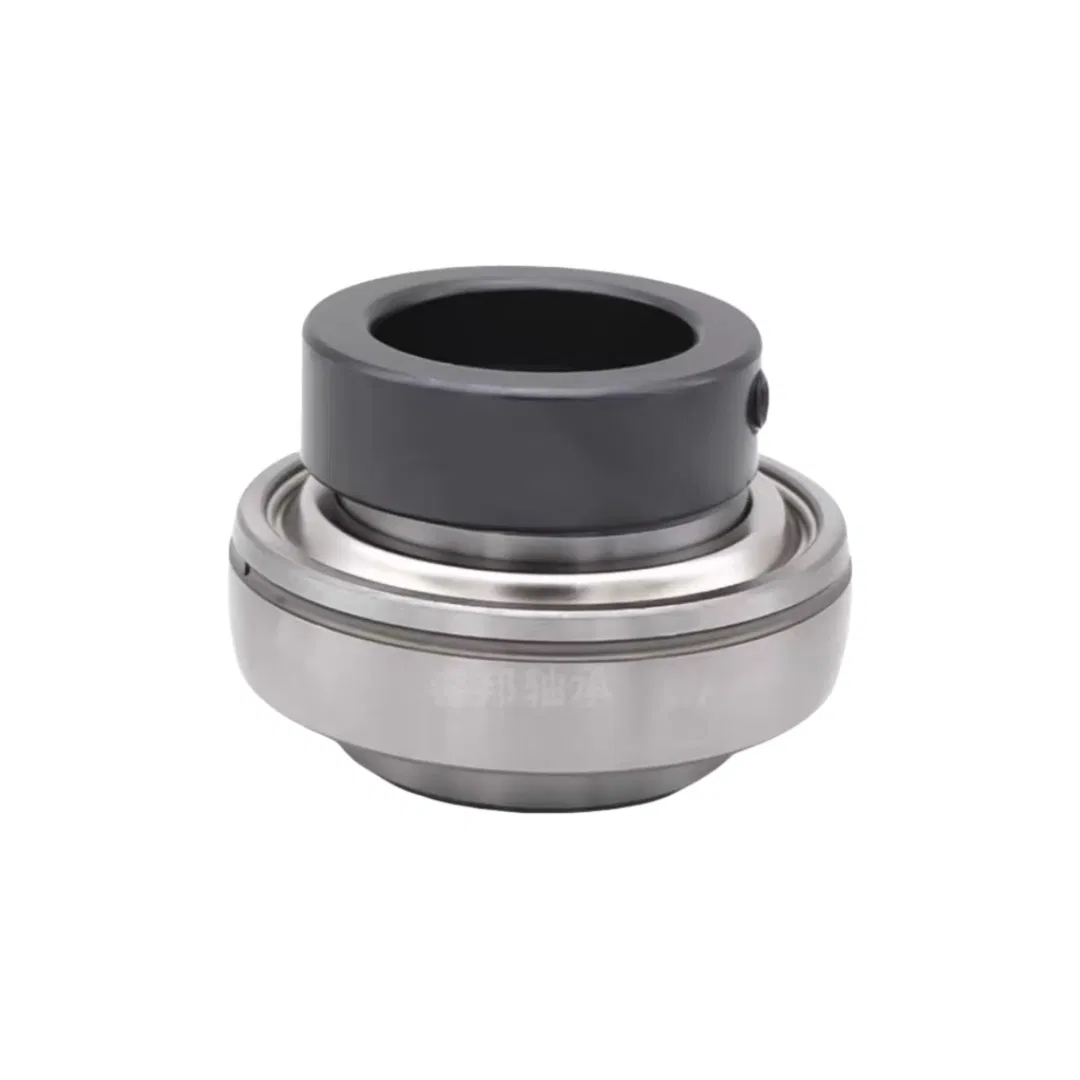

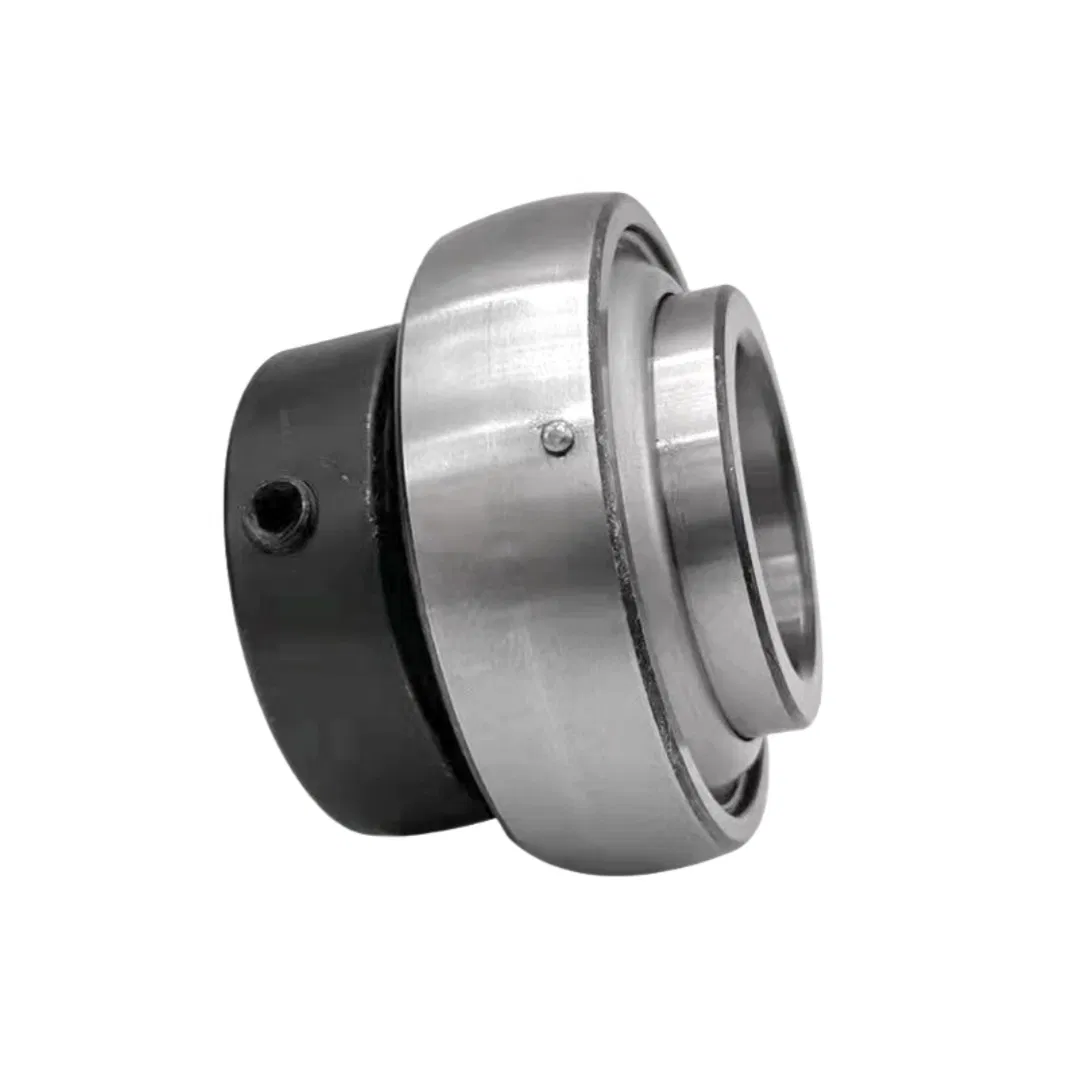

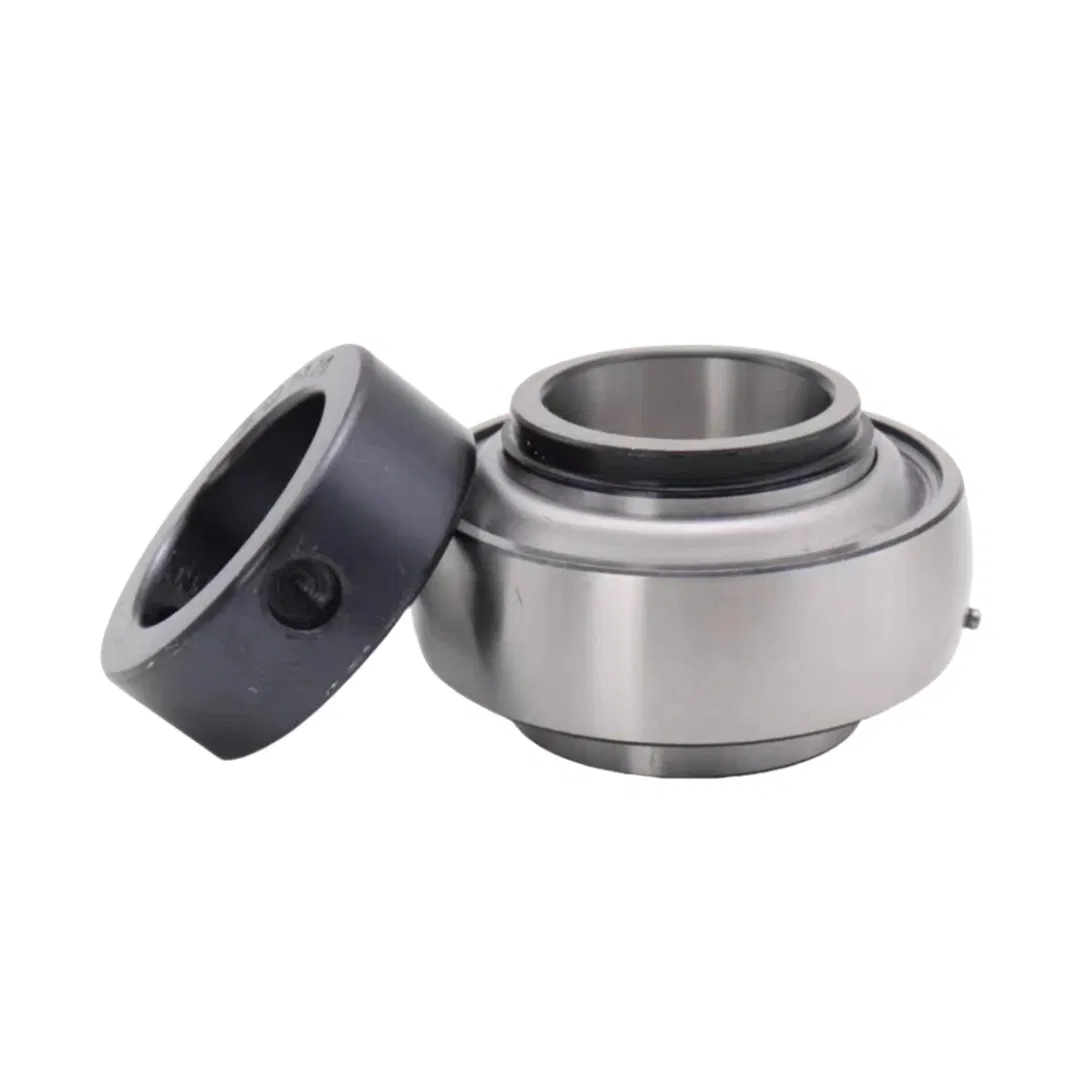

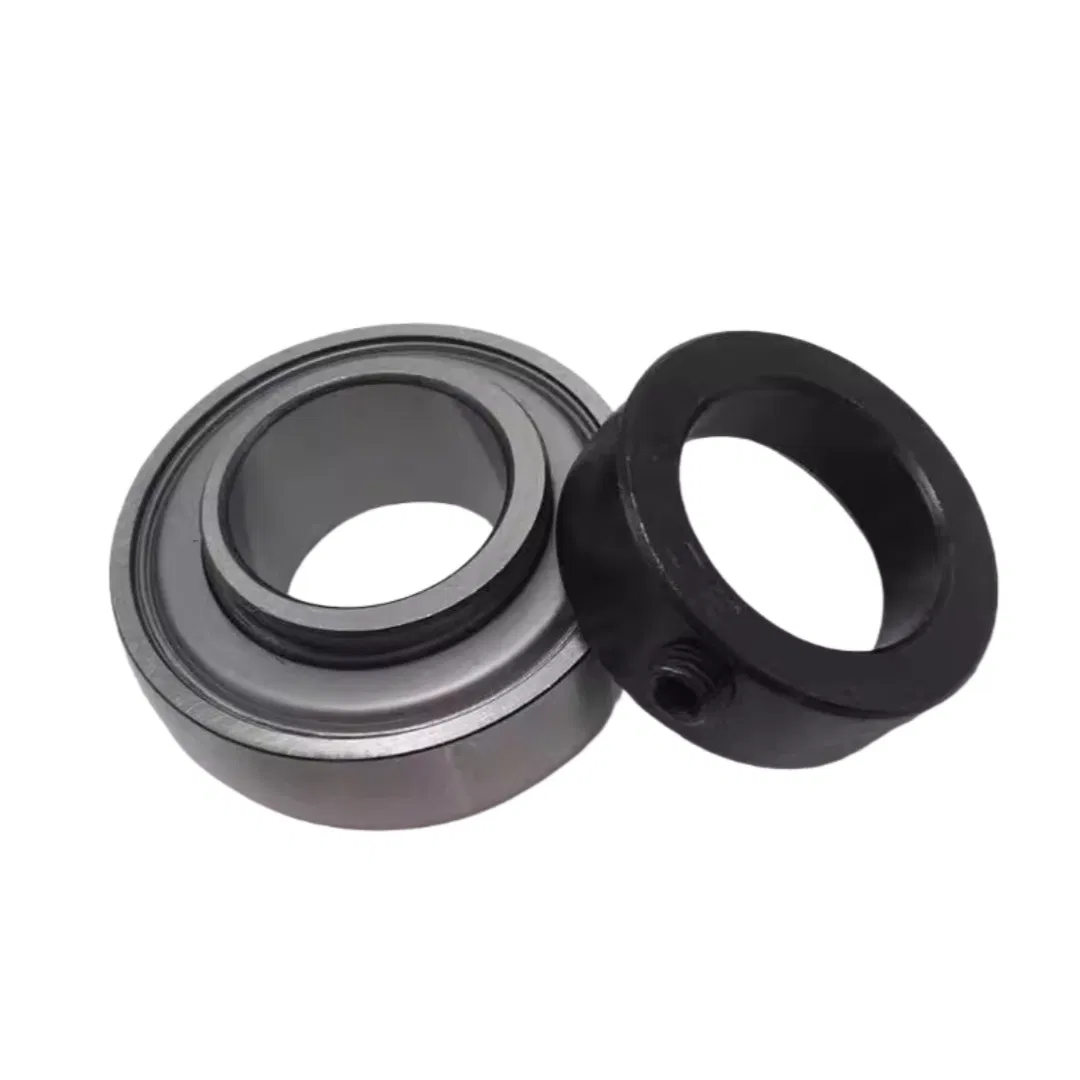

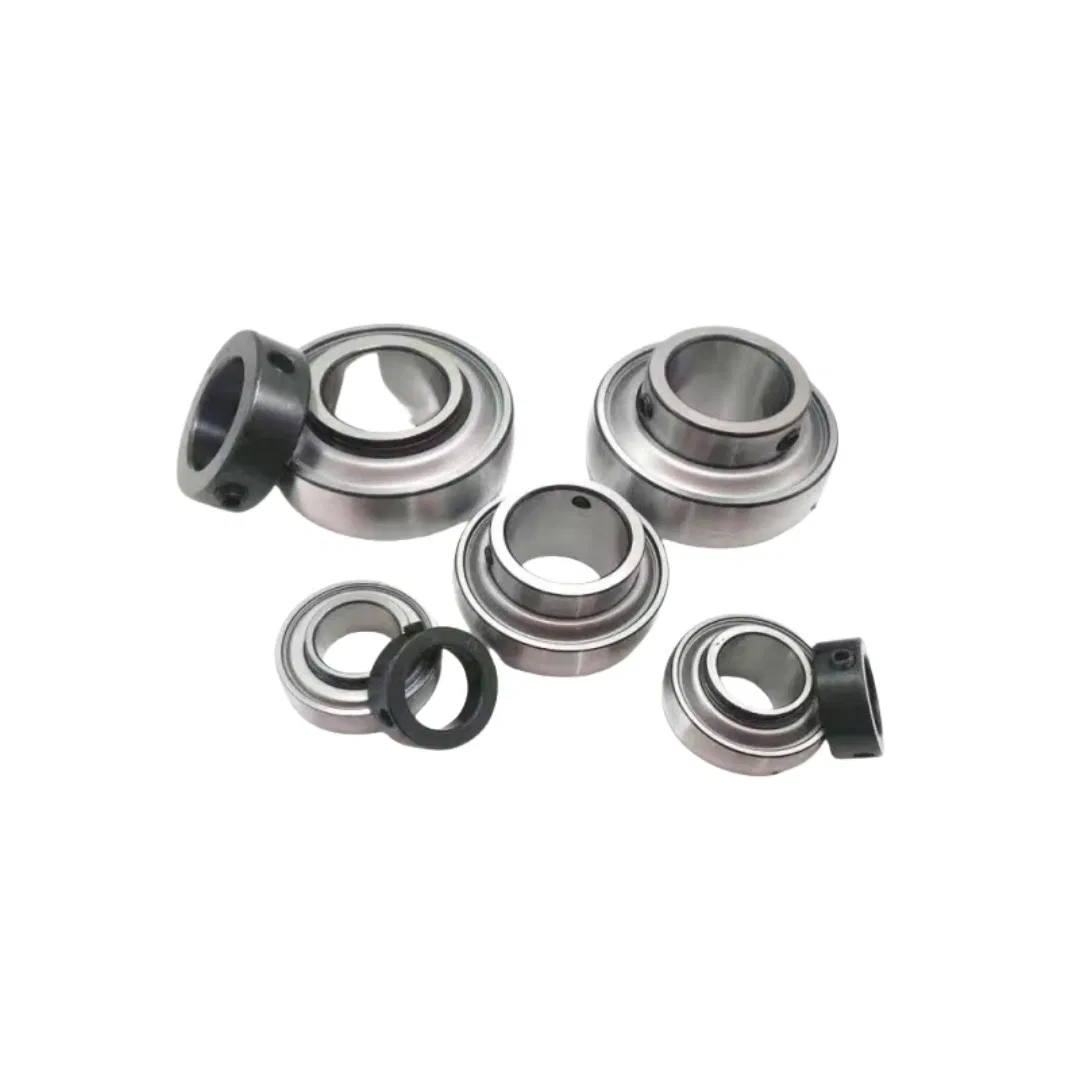

Hc206 Hc206-17 Hc206-18 Hc206-19 Hc206-20 Insert Bearing Unit 17-20mm Bore for Textile Machine
|
Still deciding? Get samples of $ !
Order Sample
|
Product Details
| Customization: | Available |
|---|---|
| Vibration: | Zv1 Zv2 Zv3 |
| Hardness: | HRC60--62 |
Shipping
| Shipping Cost: | Contact the supplier about freight and estimated delivery time. |
|---|
Payment Guarantee
| Payment Methods: |
|
|---|---|
| Support payments in USD |
| Secure payments: | Every payment you make on Made-in-China.com is protected by the platform. |
|---|
| Refund policy: | Claim a refund if your order doesn't ship, is missing, or arrives with product issues. |
|---|
Secured Trading Service
Diamond Member Since 2018
Suppliers with verified business licenses
Audited Supplier Audited by an independent third-party inspection agency
Find Similar Products
- Overview
- Product Description
Basic Info.
Model NO.
HC206 HC206-17 HC206-18 HC206-19 HC206-20 Insert B
Cage
Steel Nylon Brass
Material
Chrome Steel Gcr15
Service
OEM
Grease
Sheel Great Wall
Precision
P0 P6 P5
Package
Industry or Single Box
Transport Package
Industry or Single Box
Specification
Standard
Trademark
UJK
Origin
China
HS Code
84821020
Production Capacity
100000
Packaging & Delivery
Package Size
10.00cm * 15.00cm * 12.00cm
Package Gross Weight
0.500kg
Product Description
| Bearing NO. | Dimensions(mm/in.) | Dynamic load ratings(N) | Static load ratings(N) | Weight(kg) | ||||||||||
| d | D | B1 | B | C | S | ds | G | B5 | d3 | F | ||||
| HC201 | 12 | 47 | 43.7 | 34.2 | 17 | 17.1 | M6x1 | 4.8 | 13.5 | 33.3 | 3.7 | 12800 | 6600 | 0.29 |
| HC201-8 | 1/2 | 1.8504 | 1.720 | 1.3465 | 0.6693 | 0.673 | 1/4-28UNF | 0.189 | 0.531 | 1.311 | 0.146 | 12800 | 6600 | 0.29 |
| HC202 | 15 | 1.8504 | 1.720 | 1.3465 | 0.6693 | 0.673 | 1/4-28UNF | 0.189 | 0.531 | 1.311 | 0.146 | 12800 | 6600 | 0.27 |
| HC202-9 | 9/16 | 1.8504 | 1.720 | 1.3465 | 0.6693 | 0.673 | 1/4-28UNF | 0.189 | 0.531 | 1.311 | 0.146 | 12800 | 6600 | 0.26 |
| HC202-10 | 5/8 | 1.8504 | 1.720 | 1.3465 | 0.6693 | 0.673 | 1/4-28UNF | 0.189 | 0.531 | 1.311 | 0.146 | 12800 | 6600 | 0.26 |
| HC203 | 17 | 1.8504 | 1.720 | 1.3465 | 0.6693 | 0.673 | 1/4-28UNF | 0.189 | 0.531 | 1.311 | 0.146 | 12800 | 6600 | 0.25 |
| HC203-11 | 11/16 | 1.8504 | 1.720 | 1.3465 | 0.6693 | 0.673 | 1/4-28UNF | 0.189 | 0.531 | 1.311 | 0.146 | 12800 | 6600 | 0.25 |
| HC204 | 20 | 47 | 43.7 | 34.2 | 17 | 17.1 | M6x1 | 4.8 | 13.5 | 33.3 | 3.7 | 12800 | 6600 | 0.21 |
| HC204-12 | 3/4 | 1.8504 | 1.720 | 1.3465 | 0.6693 | 0.673 | 1/4-28UNF | 0.189 | 0.531 | 1.311 | 0.146 | 12800 | 6600 | 0.21 |
| HC205 | 25 | 52 | 44.4 | 34.9 | 17 | 17.5 | M6x1 | 4.8 | 13.5 | 38.1 | 3.9 | 14000 | 7850 | 0.25 |
| HC205-13 | 13/16 | 2.0472 | 1.748 | 1.3740 | 0.6693 | 0.689 | 1/4-28UNF | 0.189 | 0.531 | 1.500 | 0.154 | 14000 | 7850 | 0.3 |
| HC205-14 | 7/8 | 2.0472 | 1.748 | 1.3740 | 0.6693 | 0.689 | 1/4-28UNF | 0.189 | 0.531 | 1.500 | 0.154 | 14000 | 7850 | 0.29 |
| HC205-15 | 15/16 | 2.0472 | 1.748 | 1.3740 | 0.6693 | 0.689 | 1/4-28UNF | 0.189 | 0.531 | 1.500 | 0.154 | 14000 | 7850 | 0.27 |
| HC205-16 | 1 | 2.0472 | 1.748 | 1.3740 | 0.6693 | 0.689 | 1/4-28UNF | 0.189 | 0.531 | 1.500 | 0.154 | 14000 | 7850 | 0.25 |
| HC206 | 30 | 62 | 48.4 | 36.5 | 19 | 18.3 | M8x1 | 6 | 15.9 | 44.5 | 5 | 19450 | 11250 | 0.37 |
| HC206-17 | 1-1/16 | 2.4409 | 1.906 | 1.4370 | 0.7480 | 0.720 | 5/16-24UNF | 0.236 | 0.626 | 1.752 | 0.197 | 19450 | 11250 | 0.42 |
| HC206-18 | 1-1/8 | 2.4409 | 1.906 | 1.4370 | 0.7480 | 0.720 | 5/16-24UNF | 0.236 | 0.626 | 1.752 | 0.197 | 19450 | 11250 | 0.39 |
| HC206-19 | 1-3/16 | 2.4409 | 1.906 | 1.4370 | 0.7480 | 0.720 | 5/16-24UNF | 0.236 | 0.626 | 1.752 | 0.197 | 19450 | 11250 | 0.37 |
| HC206-20 | 1-1/4 | 2.4409 | 1.906 | 1.4370 | 0.7480 | 0.720 | 5/16-24UNF | 0.236 | 0.626 | 1.752 | 0.197 | 19450 | 11250 | 0.34 |
| HC207 | 35 | 72 | 51.1 | 37.6 | 20 | 18.8 | M8x1 | 6.8 | 17.5 | 55.6 | 5.7 | 25700 | 15200 | 0.58 |
| HC207-20 | 1-1/4 | 2.8346 | 2.012 | 1.4803 | 0.7874 | 0.740 | 5/16-24UNF | 0.268 | 0.689 | 2.189 | 0.224 | 25700 | 15200 | 0.65 |
| HC207-21 | 1-5/16 | 2.8346 | 2.012 | 1.4803 | 0.7874 | 0.740 | 5/16-24UNF | 0.268 | 0.689 | 2.189 | 0.224 | 25700 | 15200 | 0.61 |
| HC207-22 | 1-3/8 | 2.8346 | 2.012 | 1.4803 | 0.7874 | 0.740 | 5/16-24UNF | 0.268 | 0.689 | 2.189 | 0.224 | 25700 | 15200 | 0.58 |
| HC207-23 | 1-7/16 | 2.8346 | 2.012 | 1.4803 | 0.7874 | 0.740 | 5/16-24UNF | 0.268 | 0.689 | 2.189 | 0.224 | 25700 | 15200 | 0.56 |
| HC208 | 40 | 80 | 56.3 | 42.8 | 21 | 21.4 | M8x1 | 6.8 | 18.3 | 60.3 | 6.2 | 29500 | 18100 | 0.73 |
| HC208-24 | 1-1/2 | 3.1496 | 2.217 | 1.6850 | 0.8268 | 0.843 | 5/16-24UNF | 0.268 | 0.720 | 2.374 | 0.244 | 29500 | 18100 | 0.78 |
| HC208-25 | 1-9/16 | 3.1496 | 2.217 | 1.6850 | 0.8268 | 0.843 | 5/16-24UNF | 0.268 | 0.720 | 2.374 | 0.244 | 29500 | 18100 | 0.74 |
| HC209 | 45 | 85 | 56.3 | 42.8 | 22 | 21.4 | M8x1 | 6.8 | 18.3 | 63.5 | 6.4 | 32700 | 20900 | 0.78 |
| HC209-26 | 1-5/8 | 3.3465 | 2.217 | 1.6850 | 0.8661 | 0.843 | 5/16-24UNF | 0.268 | 0.720 | 2.5000 | 0.252 | 32700 | 20900 | 0.89 |
| HC209-27 | 1-11/16 | 3.3465 | 2.217 | 1.6850 | 0.8661 | 0.843 | 5/16-24UNF | 0.268 | 0.720 | 2.5000 | 0.252 | 32700 | 20900 | 0.84 |
