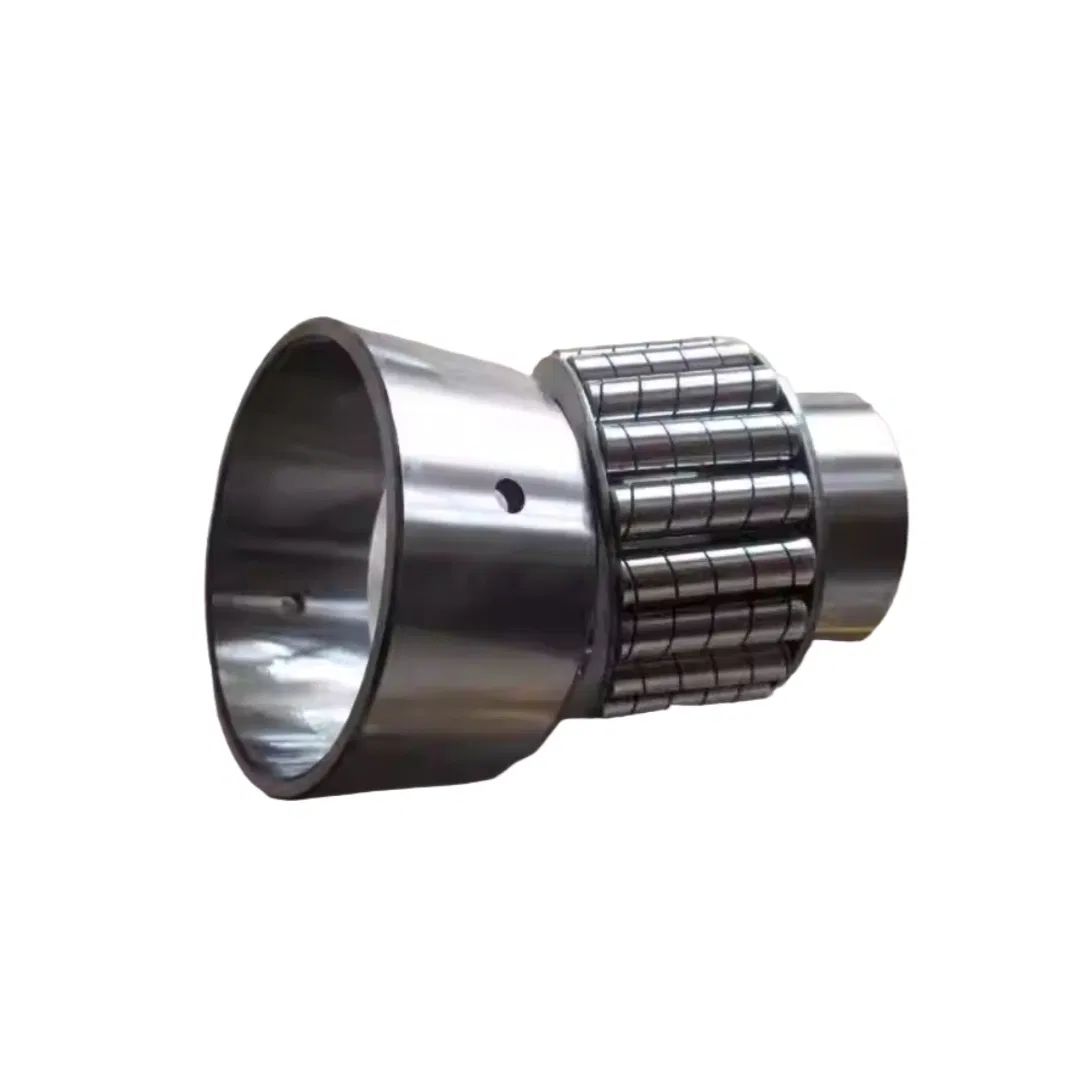

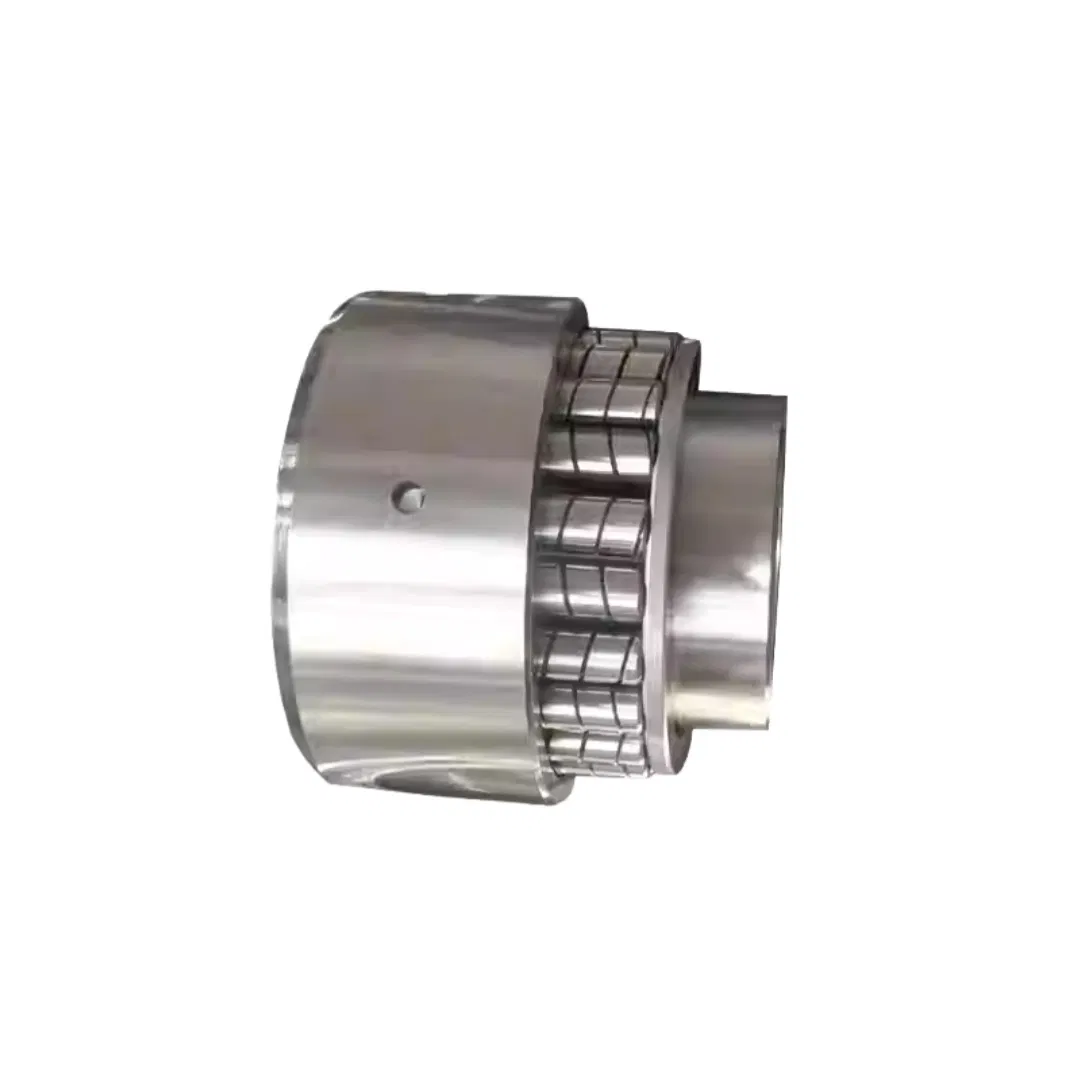

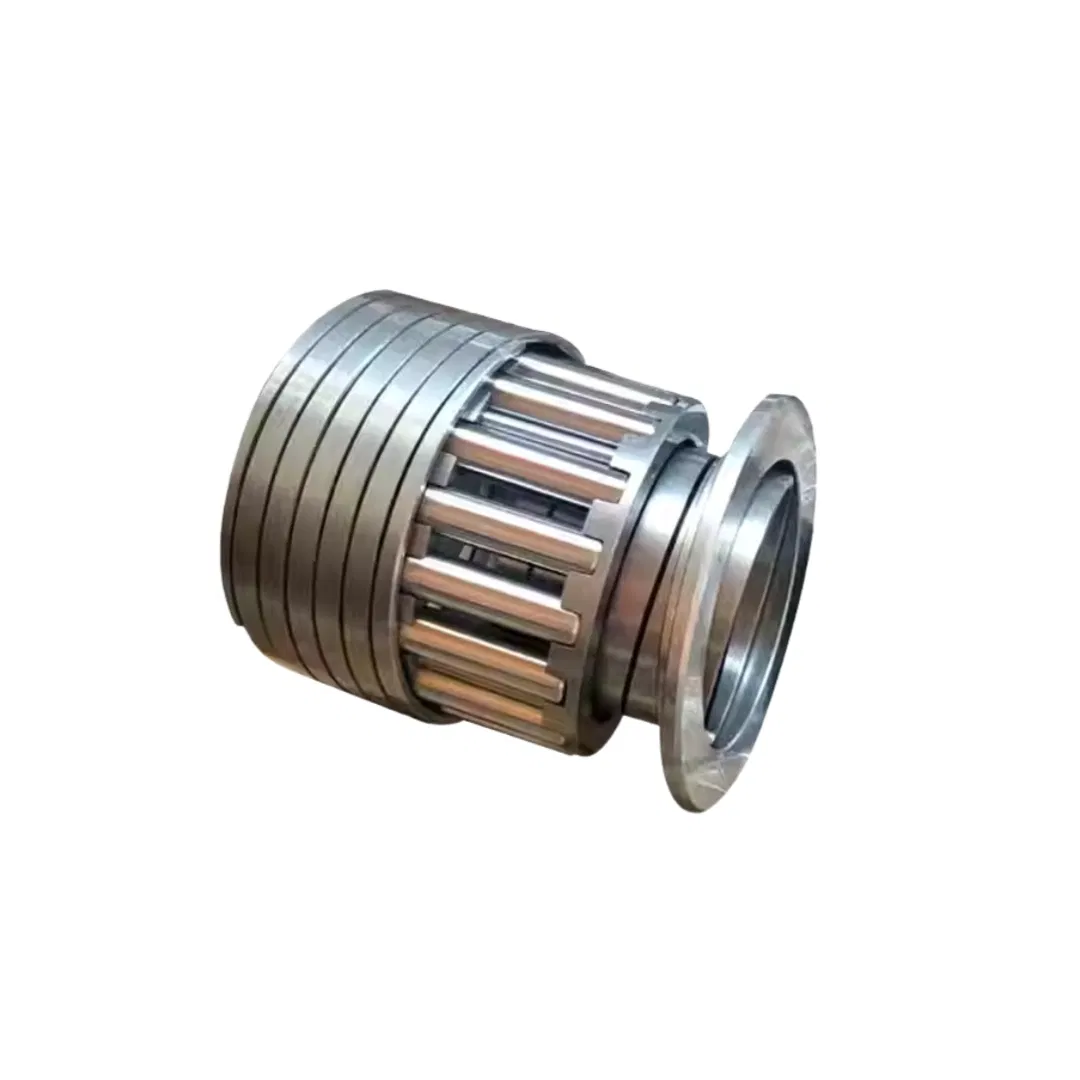

Cylindrical Spring Spiral Roller Bearing 5326 130*280*110 Cylindrical Spiral Roller Bearing 5226 130X230X108

Version 1: Comprehensive Technical Overview

Spiral Roller Bearings: Engineered for Heavy Loads and Misalignment

A Spiral Roller Bearing is a specific type of radial roller bearing characterized by its unique rolling elements: hollow, spirally wound rollers made from pre-hardened strip steel. This innovative construction differs fundamentally from solid, machined rollers and provides a set of distinct advantages, particularly in applications involving heavy loads, shock, vibration, and misalignment.

Key Design Features & Characteristics:

• Hollow, Spiral-Wound Rollers: The core feature. These rollers are not solid; they are formed by tightly coiling steel strip into a cylindrical shape. This design creates a flexible, lightweight roller that can compress slightly under extreme load, distributing stress more evenly.

• Superior Shock Load Absorption: The hollow, flexible nature of the rollers allows them to absorb and dampen impact loads, vibrations, and shock far more effectively than solid rollers. This protects both the bearing and the surrounding machinery from damage.

• Misalignment Accommodation: The flexibility of the rollers allows the bearing to tolerate minor static misalignment and shaft deflection better than many other roller bearing types.

• Lightweight & Low Inertia: Hollow rollers significantly reduce the weight of the rolling element assembly, resulting in lower rotational inertia, which can be beneficial in certain applications.

• Continuous Lubrication: The spiral-wound structure inherently retains lubricant within the coil, promoting continuous lubrication and enhancing service life.

• Maintenance-Friendly: Many designs are easy to disassemble, clean, inspect, and re-lubricate.

Trade-offs:

• Speed Limitation: Generally not suited for extremely high-speed applications due to the higher friction and flexibility of the rollers compared to precision-ground solid rollers.

• Limited Precision: While excellent for heavy, shock-load applications, they are not typically used in high-precision spindle applications where rigid, solid rollers are required.

Primary Applications:
Spiral roller bearings are workhorses in industries dealing with severe operating conditions:

• Vibrating Screens and Shakers: Their ability to handle shock and vibration is unparalleled here.

• Construction and Mining Equipment: Conveyors, crushers, and screens where contamination and heavy loads are common.

• Agricultural Machinery: Hay balers, combines, and other equipment subject to shock loads.

• Material Handling Systems: Heavy-duty conveyor rollers in harsh environments.

• Paper Mill Equipment: Rollers handling significant loads and misalignment.

Version 2: Concise & Impactful Summary

Spiral Roller Bearings: The Heavy-Duty Shock Absorber

Spiral roller bearings are engineered for the toughest environments. Their unique hollow, spirally wound rollers excel at absorbing extreme shock loads, dampening vibration, and accommodating misalignment where other bearings fail.

Ideal for vibrating machinery, mining, construction, and heavy industrial applications, these robust bearings deliver exceptional durability and reliability, maximizing uptime and protecting your equipment.
