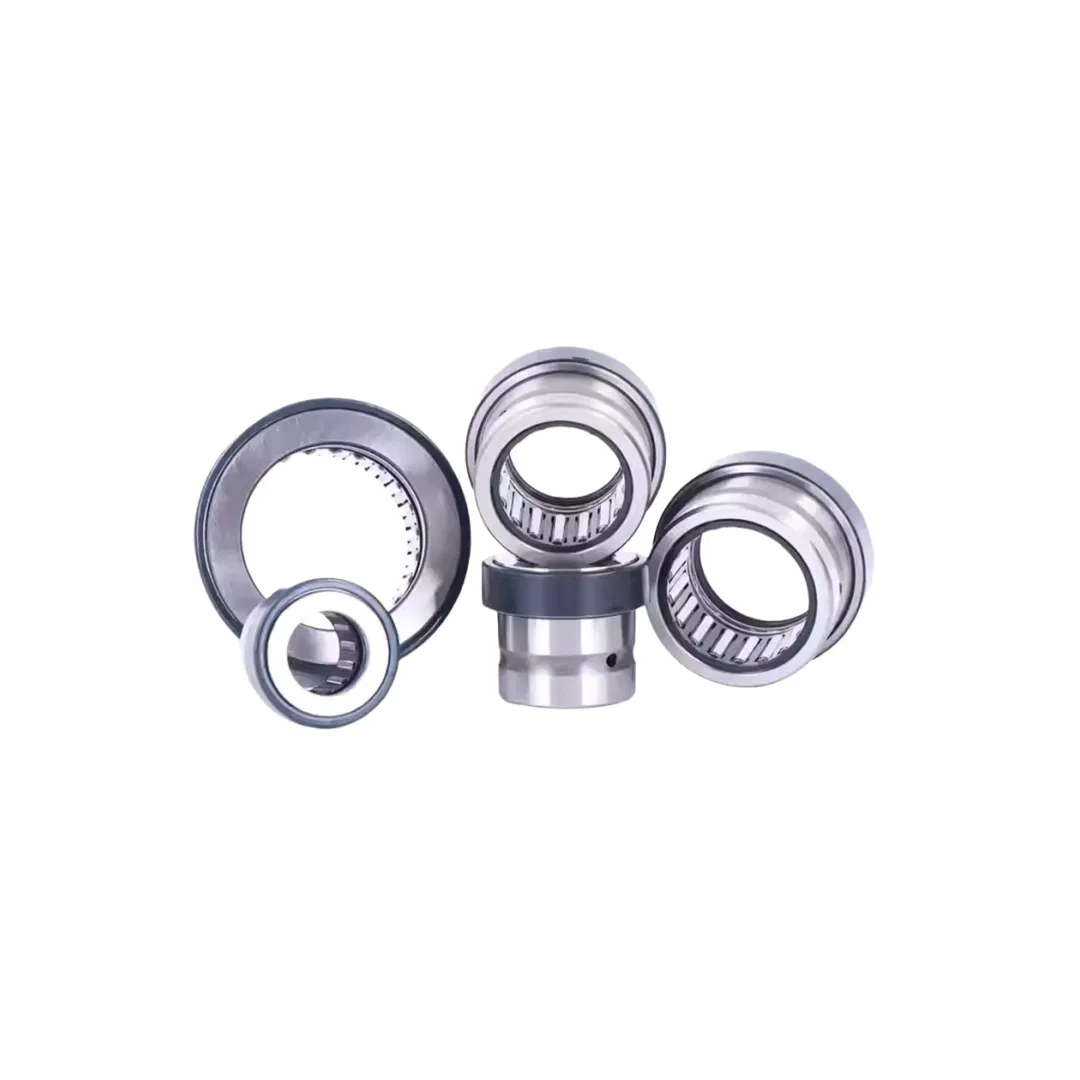

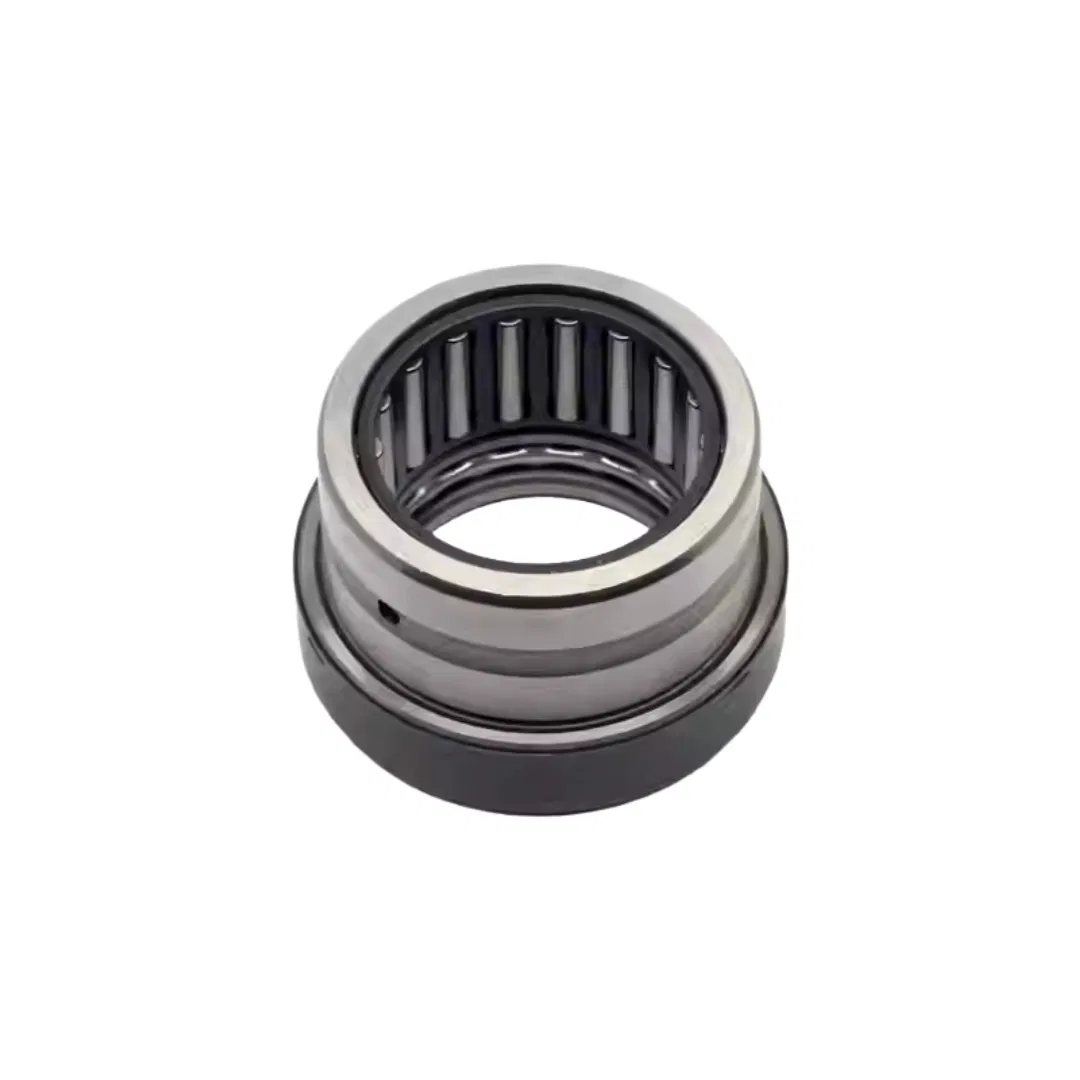

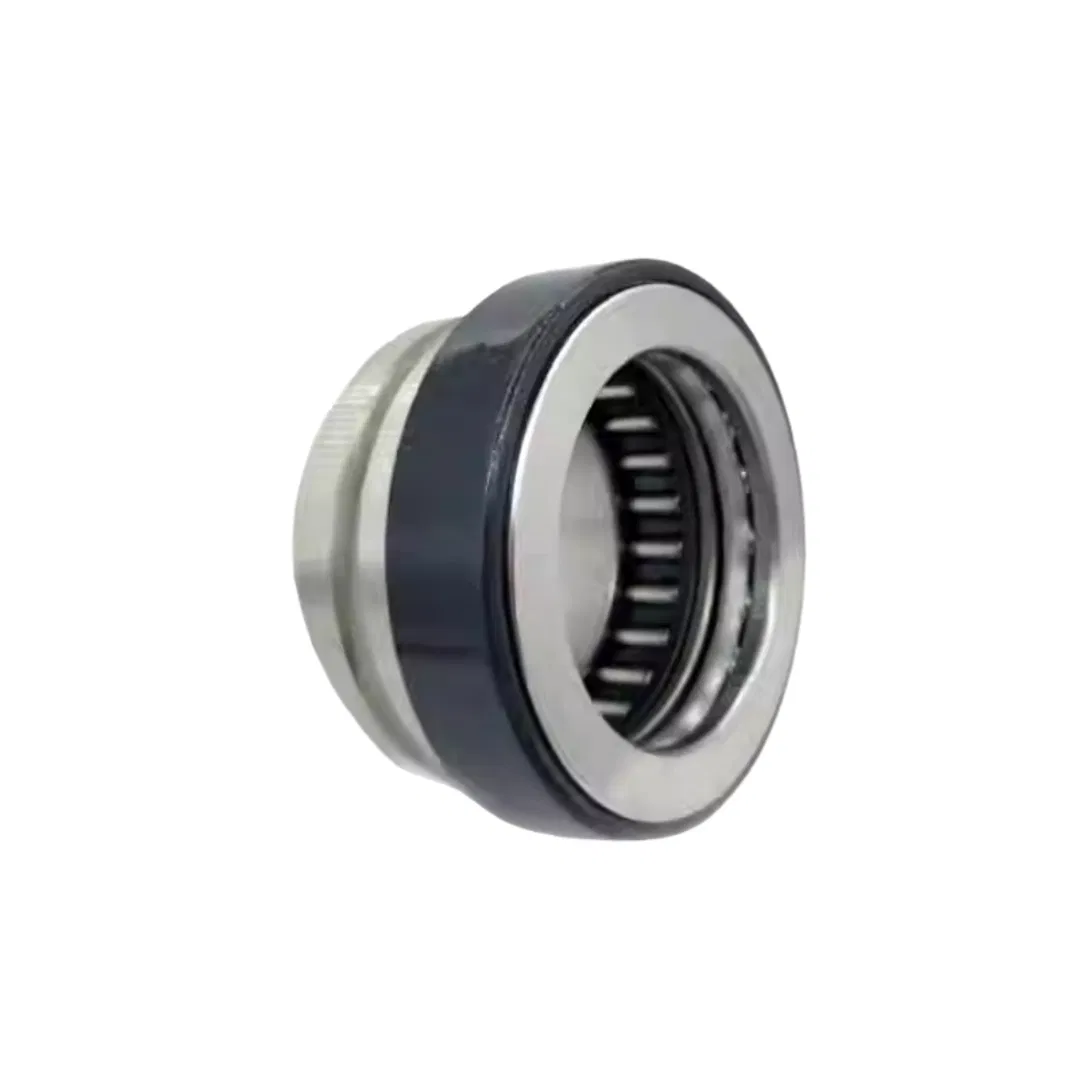

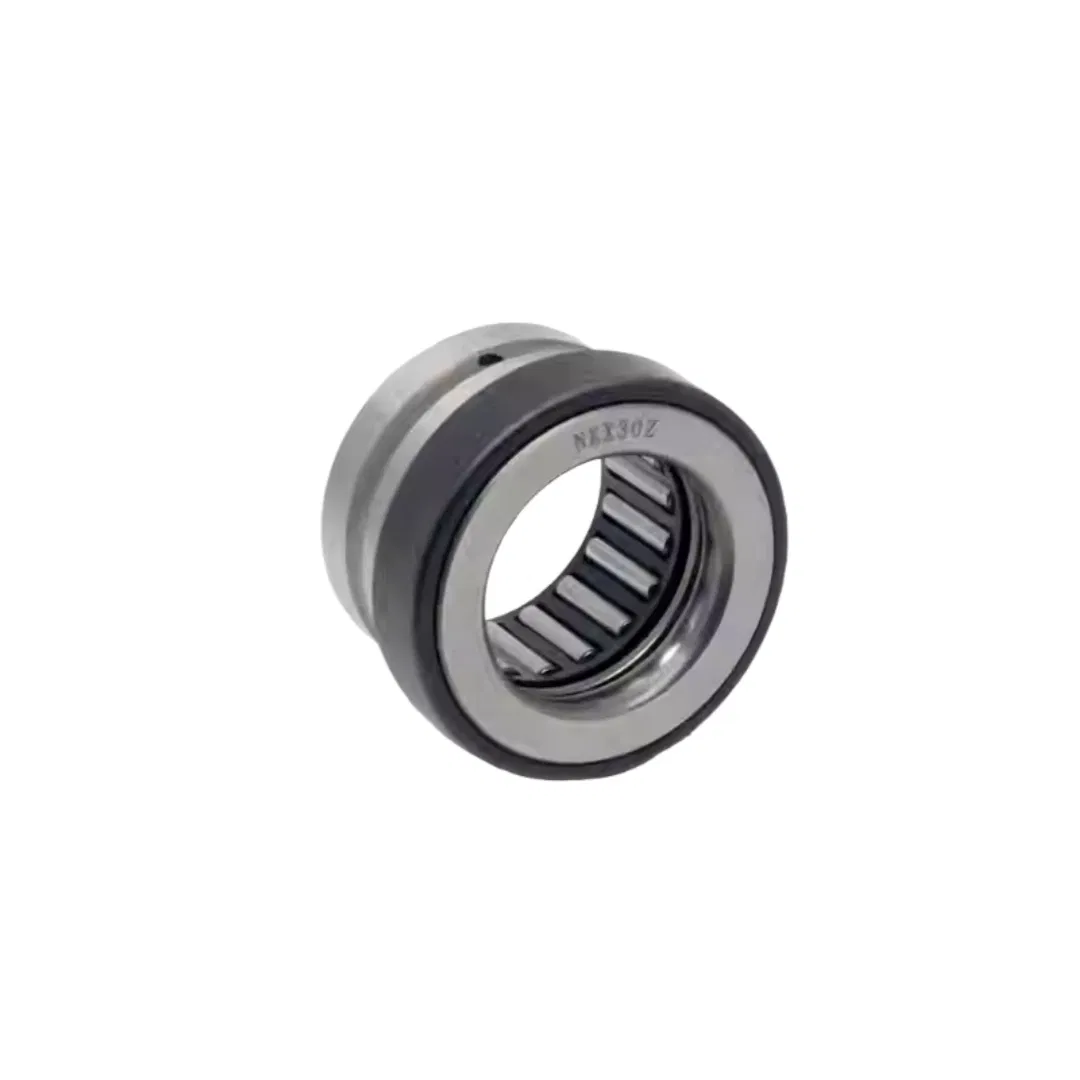

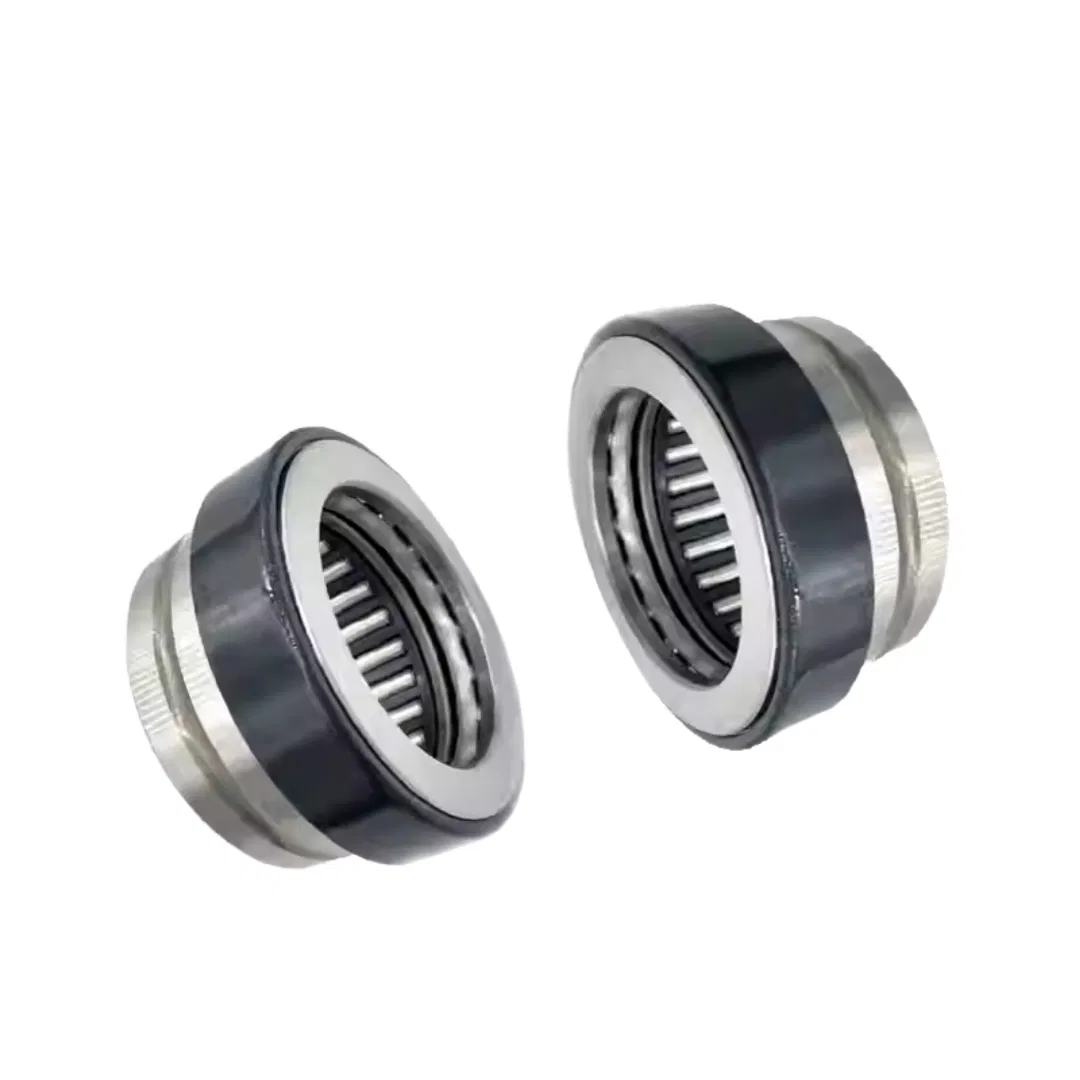

Original Quality Nkib5910 Combined Needle Roller Bearing, Nkib5910-XL Double Direction Axial/Radial Bearing for Precision Machinery

Introduction to Combined Bearings

Combined bearings are a specialized category of bearing units that integrate two or more different types of bearing structures into a single, compact assembly. Unlike standard bearings designed to accommodate a specific type of load (radial, axial, or moment), combined bearings are engineered to simultaneously support multiple load combinations. This makes them an ideal solution for applications where space is limited and complex loading conditions are present.

Key Features and Design

The primary design principle of a combined bearing is the combination of a radial bearing (typically a needle roller or deep groove ball bearing) with an axial bearing (typically a four-point contact ball bearing or a thrust needle roller assembly). This unique construction is often housed within a single, hardened steel washer or a flanged outer ring, providing a unified and robust unit.

Common combinations include:

• Radial and Axial Loads: The most frequent combination, handling loads perpendicular to the shaft (radial) and parallel to the shaft (axial).

• Radial and Moment Loads: Some designs are optimized to handle overturning moments in addition to radial loads.

Advantages

• Space and Weight Savings: By combining two functions into one unit, combined bearings significantly reduce the required installation space and overall weight of the machinery, enabling more compact and streamlined designs.

• High Load Capacity: They offer high load-carrying capacity in multiple directions within a confined volume, often outperforming two separate bearings.

• Simplified Design and Assembly: Using a single, pre-assembled unit simplifies the design process for engineers, reduces the number of components, and eases the installation and maintenance procedures.

• High Precision and Rigidity: The integrated design ensures precise alignment of the bearing elements, resulting in high system rigidity, accurate rotational performance, and reduced deflection under complex loads.

• Cost-Effectiveness: While sometimes more expensive per unit, they often lead to overall cost savings by reducing machining requirements, assembly time, and inventory needs for multiple bearing types.

Common Applications

Combined bearings are critical components in industries where precision, compactness, and reliability are paramount. Typical applications include:

• Robotics: Robotic arms, joints, and rotary modules where multiple axes of movement create complex load patterns.

• Machine Tools: Rotary tables, indexing heads, and CNC machining centers where high precision and rigidity under combined loads are essential.

• Material Handling: Slewing rings in forklifts, stackers, and cranes.

• Aerospace and Defense: Landing gear systems, radar platforms, and missile guidance systems.

• Medical Equipment: Advanced imaging systems like CT and MRI scanners, and surgical robots.

• Packaging and Textile Machinery.
