High Temperature Resistant Full Ball Bearings 606 607 608 609 626 627 628 629 639 625 Types of Bearings Ball Bearings Loose 625 Ball Bearing

Version 1: Comprehensive Technical Overview

Full Complement Ball Bearings: Maximum Load Capacity in a Compact Design

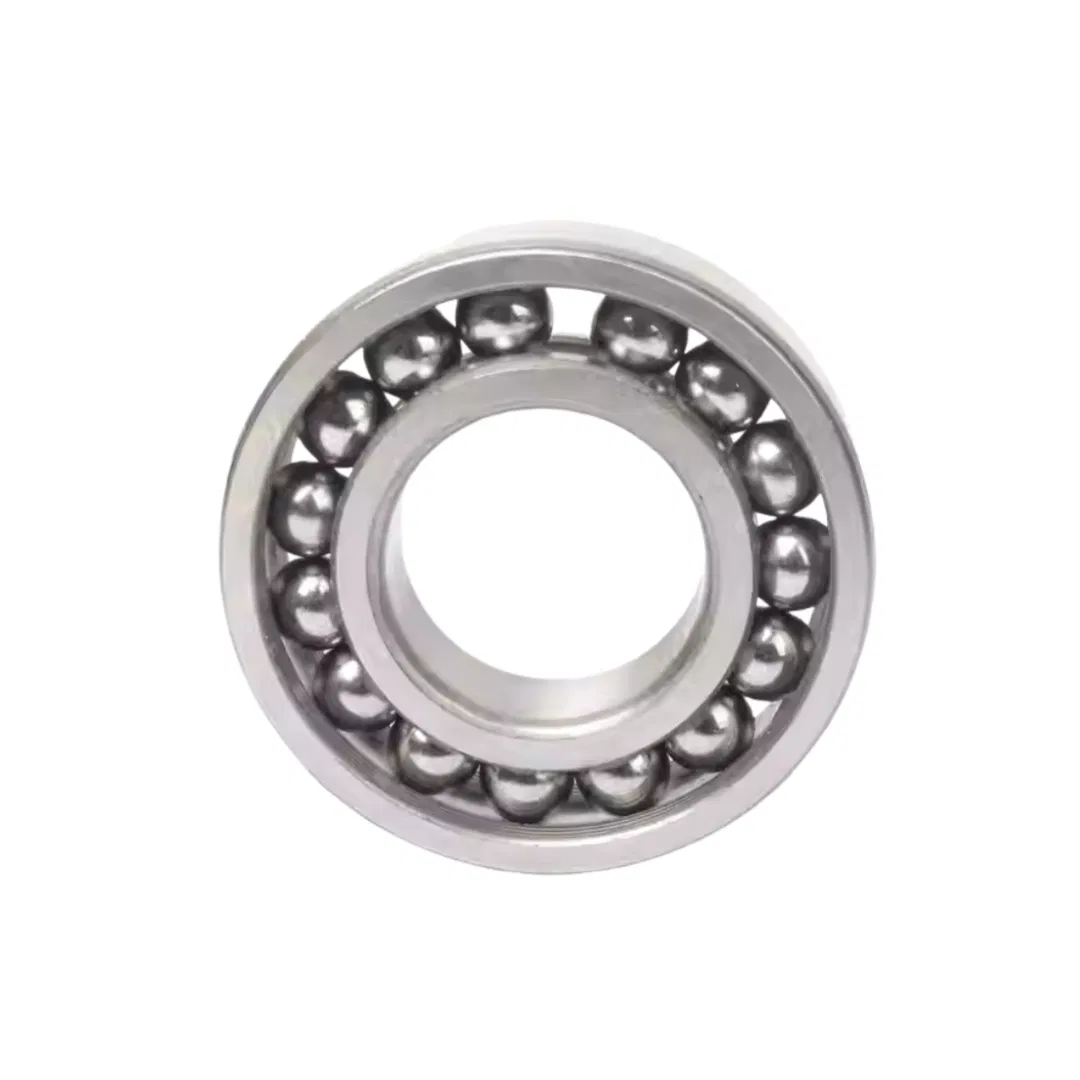

A Full Complement Ball Bearing is a specialized type of deep groove ball bearing that omits the cage (or retainer) to accommodate the maximum possible number of rolling elements. By filling the entire annular space between the inner and outer rings with balls, this design significantly increases the bearing's radial load capacity compared to a standard caged bearing of the same dimensions.

Key Design Features & Characteristics:

• No Cage/Retainer: The defining feature is the absence of a cage. This allows for a fuller complement of balls to be inserted, typically through a filling slot or by eccentric displacement of the rings.

• High Load Capacity: The increased number of bearing balls directly translates to a much higher radial load rating, often 20-40% greater than a caged counterpart. This makes them ideal for applications where space is limited but load requirements are severe.

• Speed Limitation: The primary trade-off for higher load capacity is a lower maximum operating speed. Without a cage to separate them, the balls contact each other during operation, leading to higher friction, increased heat generation, and higher torque. This makes them unsuitable for high-speed applications.

• Robust Construction: Often manufactured with high-grade steel and designed to handle heavy loads and shock conditions.

Applications:
Full complement ball bearings are selected where high radial load and compactness are paramount, and rotational speed is low to moderate. Typical applications include:

• Heavy Industrial Gearboxes

• Agricultural Machinery

• Construction Equipment

• Vibrating Screens and Shakers

• Material Handling Systems

• Pumps and Compressors

Important Distinction: They should not be confused with Full Type Ball Bearings (a less common term sometimes referring to standard deep groove ball bearings with deep, continuous raceways) or Caged Bearings. The "Full" here specifically denotes the complement of balls.

Version 2: Concise & Impactful Summary

Full Complement Ball Bearings: For When Load Capacity is Critical

Full complement ball bearings are engineered for maximum performance in demanding, low-to-moderate speed applications. By eliminating the cage and maximizing the number of balls, they deliver superior radial load capacity within a compact footprint.

Choose these bearings for heavy-duty industrial equipment, machinery, and systems where handling significant loads is more critical than achieving high rotational speeds.
