T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System
Contact Supplier
Product Highlights
- High Axial Load Capacity: Optimized for one-direction thrust loads with increased capacity via contact angle.
- Combined Load Bearing: Capable of handling both axial loads and limited radial loads simultaneously.
- Rigid and Stable Structure: Ensures accurate shaft positioning under heavy-duty working conditions.
- Separable Components: Convenient design for mounting, dismounting, and inspection processes.
- Long Service Life: Durable performance under heavy impact and shock loads.
- Wide Size Range: Bore diameter from 90 mm to 800 mm, outside diameter up to 1100 mm.
- Multiple Precision Grades: Available in P0, P6, and P5 precision levels.
- Customizable Cage Material: Options include Steel, Nylon, and Brass cages.
Product Attributes
- Customization
- Available
- Vibration
- Zv1 Zv2 Zv3
- Hardness
- HRC60--62
- Model NO.
- T135 Tapered Roller Thrust Bearing Single Directio
- Cage
- Steel Nylon Brass
- Material
- Chrome Steel Gcr15
- Service
- OEM
- Grease
- Sheel Great Wall
- Precision
- P0 P6 P5
- Package
- Industry or Single Box
- Transport Package
- Industry or Single Box
- Specification
- Standard
- Trademark
- UJK
- Origin
- China
- HS Code
- 84821020
- Production Capacity
- 100000
- Package Size
- 13.00cm * 20.00cm * 10.00cm
- Package Gross Weight
- 2.000kg
- Lead Time
-
5 days (1 - 100 Sets)
To be negotiated ( > 100 Sets)
Shipping
- Shipping Cost:
- Contact the supplier about freight and estimated delivery time.
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

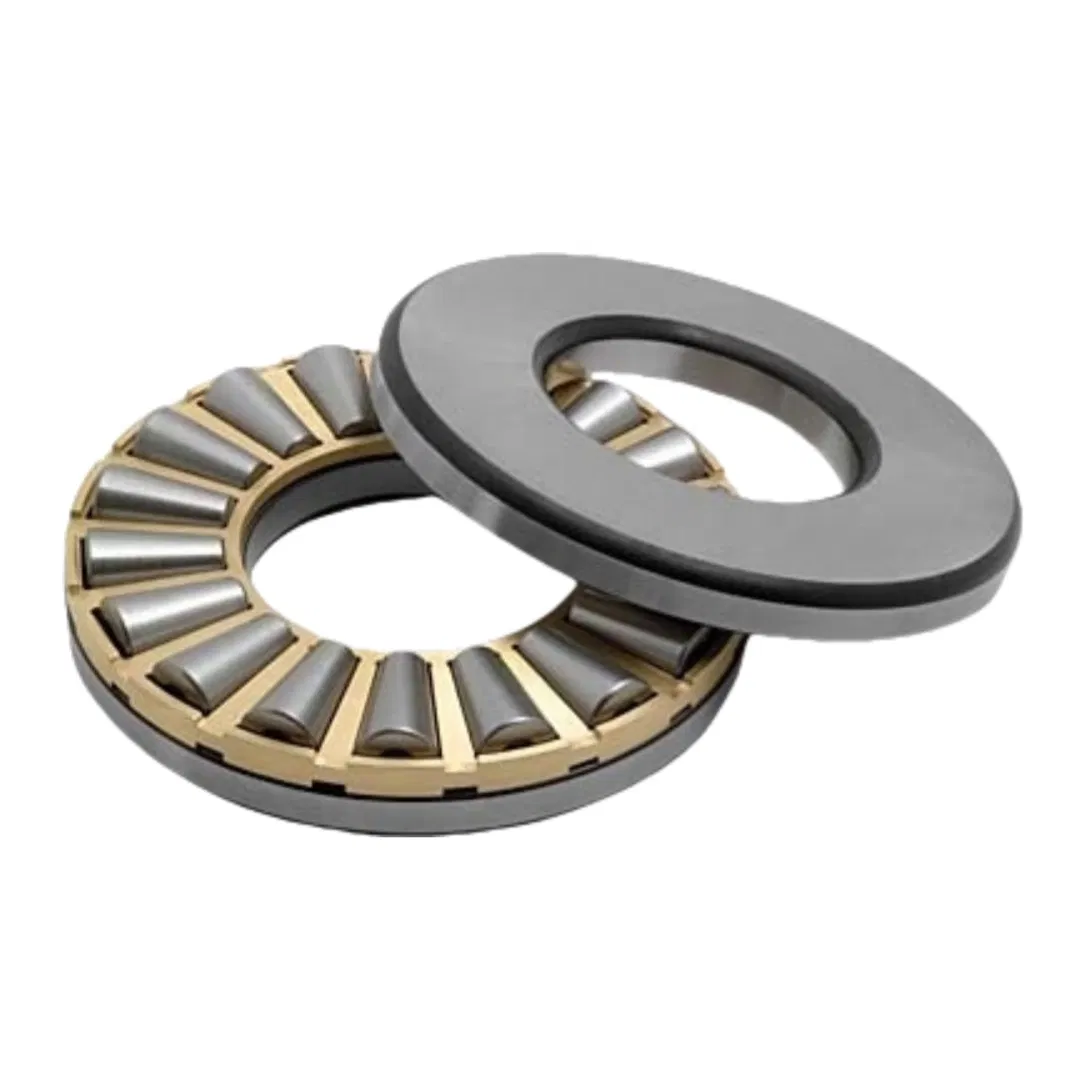

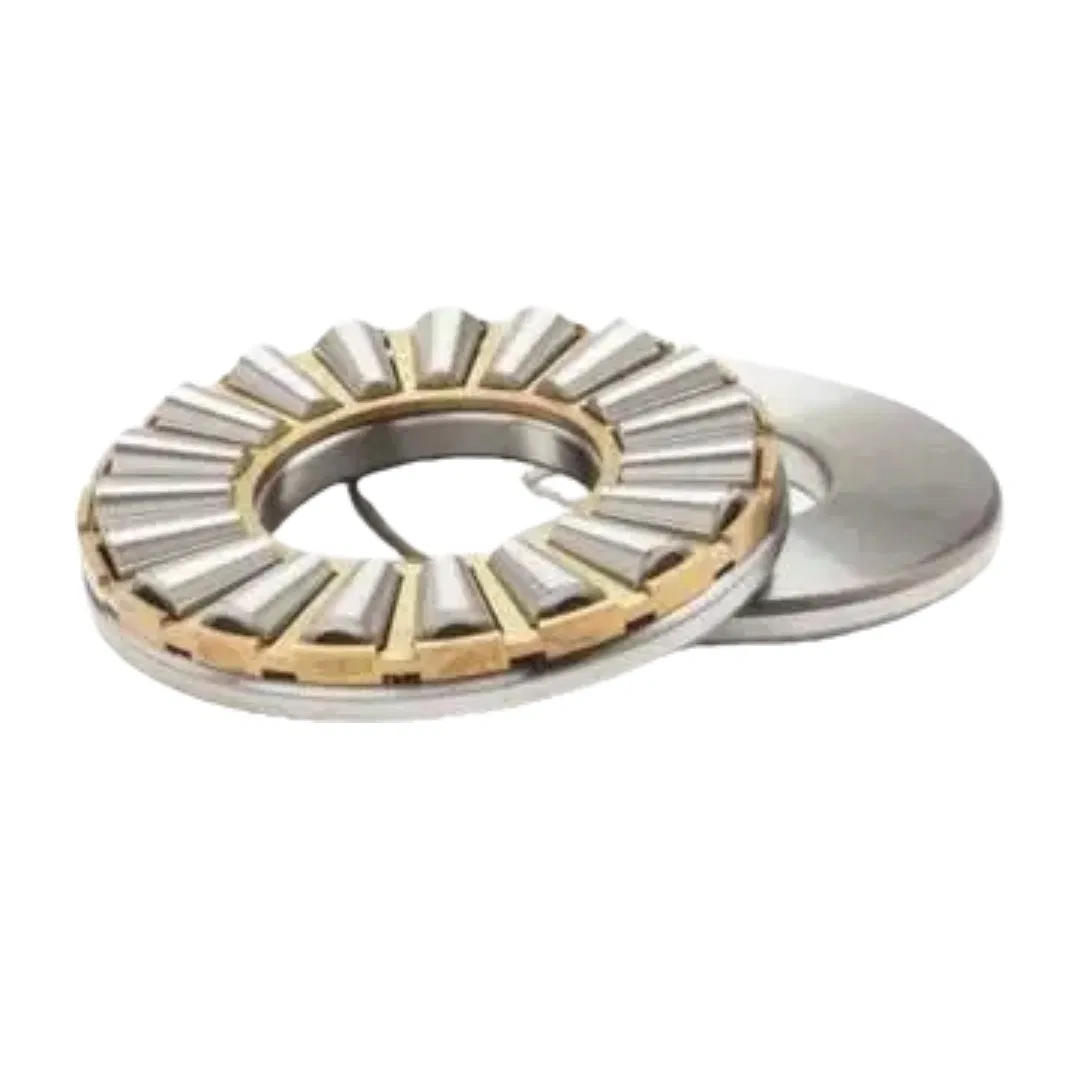

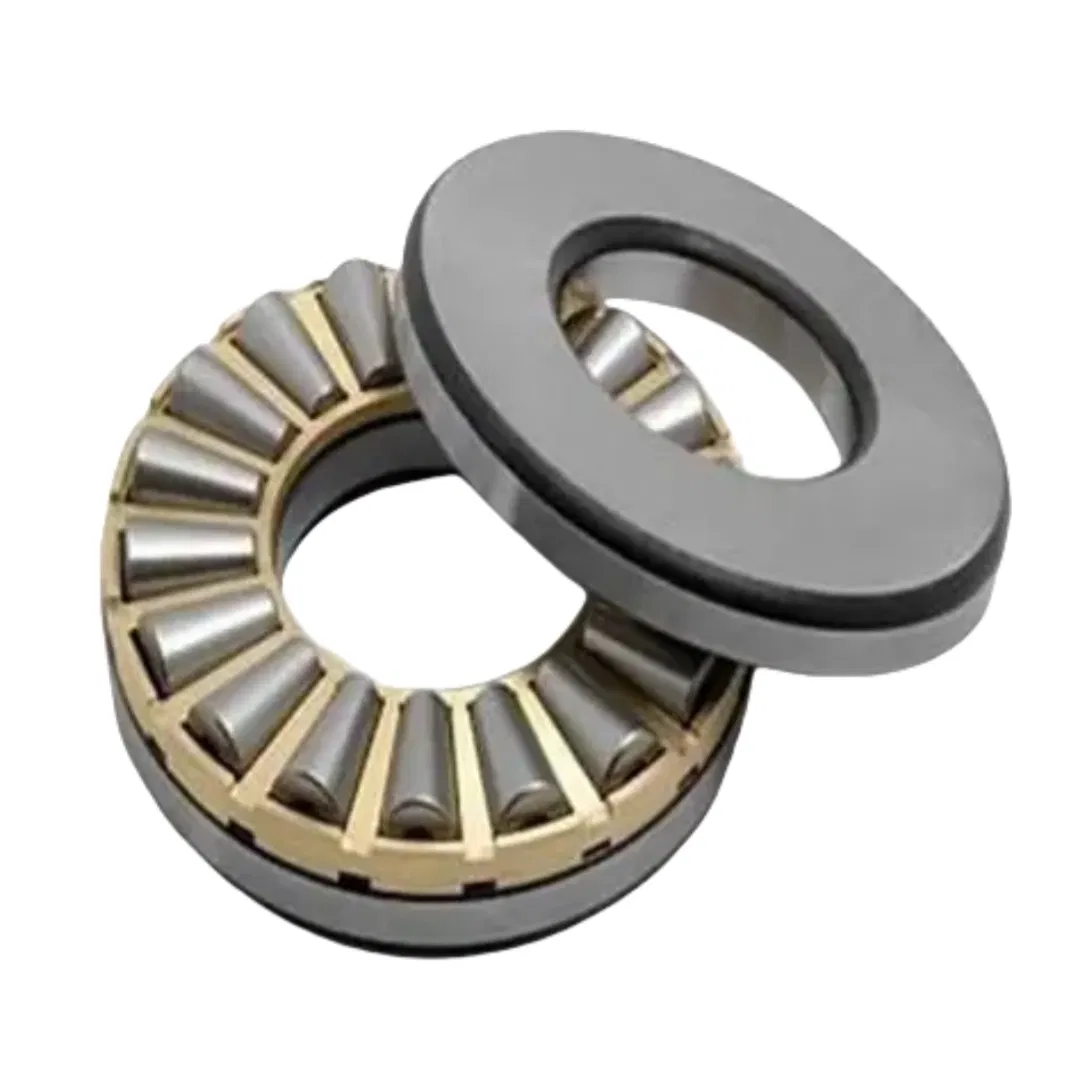

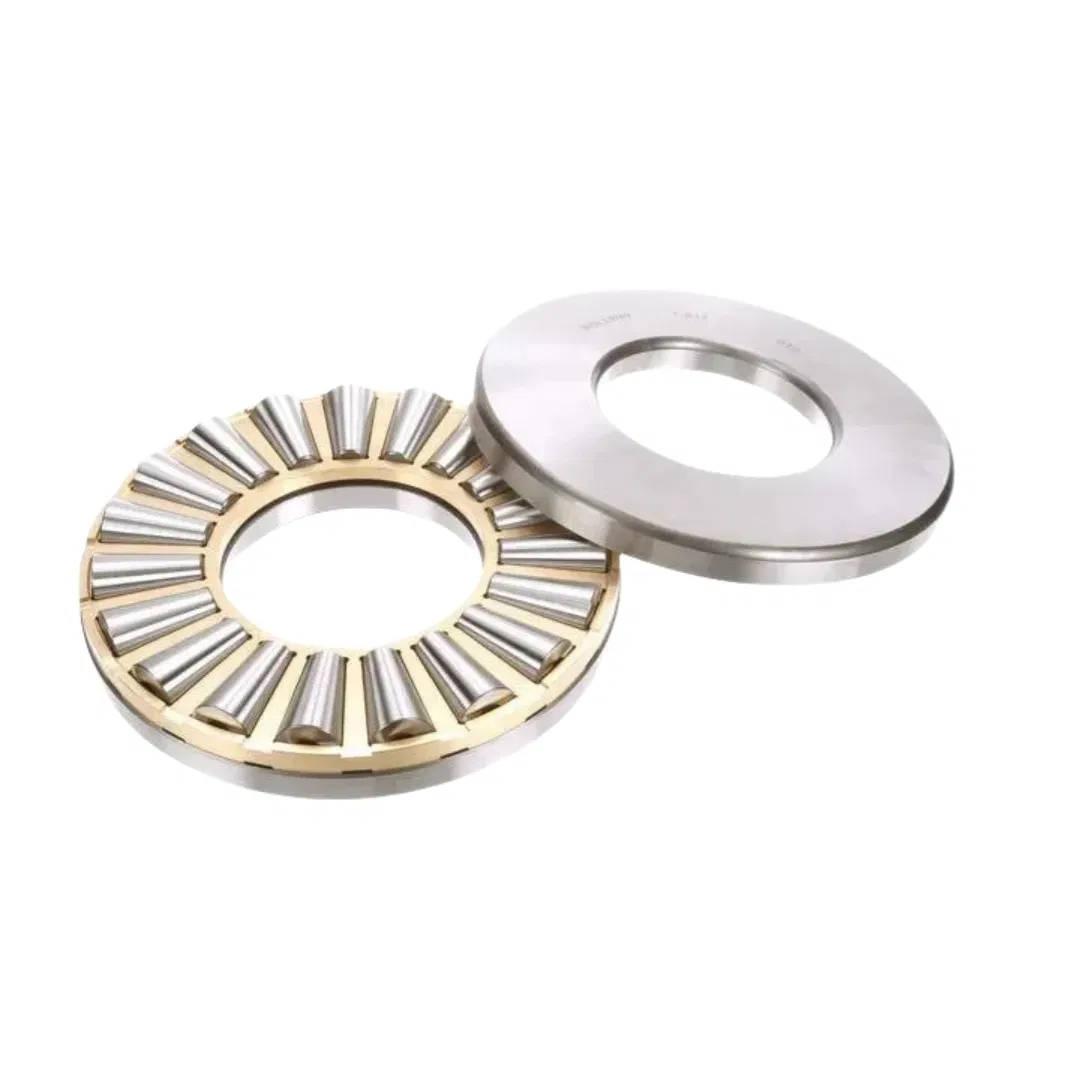

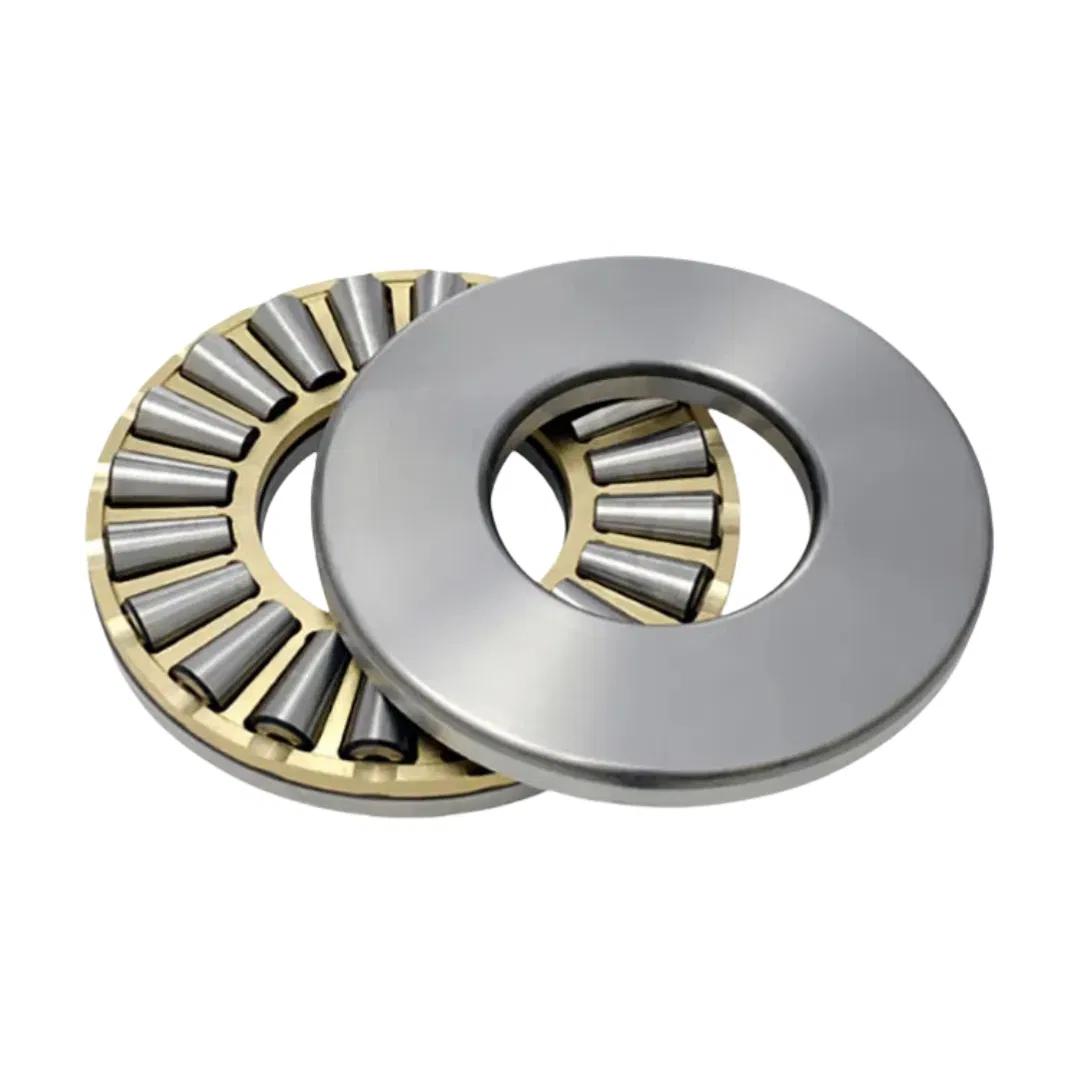

Product Images of T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System
-
T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System -
T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System -
T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System -
T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System -
T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System -
T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System -
T135 Tapered Roller Thrust Bearing Single Direction T135-902A1 Bearing for Energy & Mining Automotive Transmission System
Find Similar Products
Product Description
Thrust Tapered Roller Bearings are designed to accommodate high axial loads in one direction, while also withstanding a certain degree of radial loads due to the tapered raceway and rolling elements. Their axial load-carrying capacity increases with the contact angle, making them suitable for applications that require both durability and reliability under heavy-duty working conditions.
Main Features
-
High axial load capacity - optimized for one-direction thrust loads.
-
Can bear combined loads - axial and limited radial loads.
-
Rigid and stable structure - ensures accurate shaft positioning.
-
Separable components - convenient for mounting, dismounting, and inspection.
-
Long service life - durable under heavy impact and shock loads.
Common Series & Dimensions
Thrust tapered roller bearings are available in single-direction and double-direction designs. The common series include 90000 / 97000 series.
Typical Models (d × D × B, mm):
-
90019: 95 × 135 × 37
-
90027: 135 × 200 × 49
-
90038: 190 × 290 × 67
-
90048: 240 × 360 × 85
-
90060: 300 × 440 × 118
-
97152: 260 × 380 × 90 (double direction)
-
97220: 460 × 600 × 134 (double direction)
Size Range: Bore diameter from 90 mm up to 800 mm, outside diameter up to 1100 mm.
Applications
Thrust tapered roller bearings are mainly used in applications with heavy axial loads and impact, where shaft rigidity and positioning are critical:
-
Rolling mills (steel and non-ferrous)
-
Vertical shafts and heavy gearboxes
-
Mining and metallurgical machinery
-
Marine propulsion systems
-
Heavy-duty machine tools
-
Hydraulic turbines and large pumps
About the Supplier
){kind=link}
Company Profile
Shandong UJK Bearing Co., Ltd. is an experienced manufacturer and exporter in China. The address is located in Jinan City, Shandong Province.
We mainly produce deep groove ball bearings, tapered roller bearings, pillow block bearings, cylindrical roller bearings, spherical roller bearings and customized non-standard bearings. There are many types of bearings and a huge inventory. It can respond quickly to customer orders and meet the diversified needs of customers to the greatest extent.
Our main export markets are Germany, Spain, France, Turkey, Russia, Ukraine, Vietnam, Thailand, Malaysia, the United States, Brazil, Argentina, Singapore.
We can undertake OEM orders from large international bearing factories. We have established partnerships with some international bearing brands. We produce bearings in strict accordance with ISO standards, and all bearings meet international standards. Bearing material: Bearing steel, stainless steel, ceramic. Can be used in a variety of complex environments.
Products are mainly used in machine tools, automobiles, trucks, buses, trailers, construction machinery, industrial gearboxes, mining conveyor belts, petroleum machinery, mining machinery, motorcycles, general machinery and agricultural markets.
UJK Bearings will adhere to the long-term policy of "providing the most cost-effective bearings", and welcomes domestic and foreign customers. We sincerely invite UJK brand global agents to provide better prices.
About Our Factory & Business Background
- Address
- Room 24-C48, Building 3, Aosheng Building, No. 1166, Xinluo Street, High-Tech Zone, Jinan, Shandong, China
- Terms of Payment
- LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
- International Commercial Terms(Incoterms)
- FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW, Others
- Average Lead Time
-
Peak Season Lead Time: one month
Off Season Lead Time: within 15 workdays - Nearest Port
- Qingdao
Our Production Capability & Technical Expertise
Our Industry Experience & Global Business Record
- Export Year
- 2018-12-22
- Main Markets
- North America, South America, Eastern Europe, Southeast Asia, Mid East
FAQ
- What types of loads can this bearing handle?
- It is designed to accommodate high axial loads in one direction and can also withstand a certain degree of radial loads.
- What is the size range for this bearing?
- The bore diameter ranges from 90 mm up to 800 mm, and the outside diameter can reach up to 1100 mm.
- What materials are used for the bearing cage?
- Cage options include Steel, Nylon, and Brass.
- What precision grades are available?
- The bearings are available in P0, P6, and P5 precision grades.
- What are the main applications for this bearing?
- It is mainly used in rolling mills, vertical shafts, mining machinery, marine propulsion, heavy-duty machine tools, and hydraulic turbines.
- What is the lead time for production?
- Peak season lead time is one month, while off-season lead time is within 15 workdays.
- What payment terms are accepted?
- Accepted terms include LC, T/T, D/P, PayPal, Western Union, Small-amount payment, and Money Gram.
- Is OEM service available?
- Yes, OEM service is available for this product.
