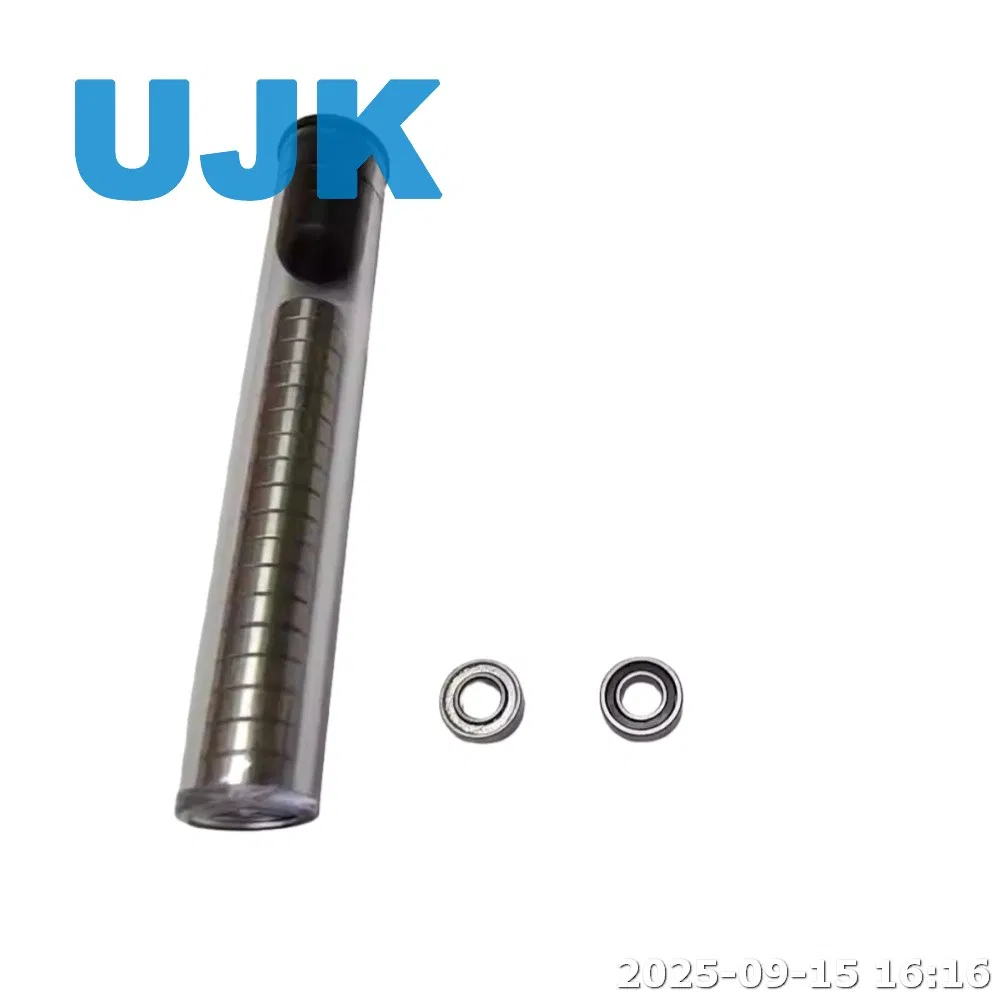

High Speed 400000rpm Sr144 Dental Ceramic Bearing Dental Drill Handpiece Hybrid Ceramic Dental Bearing for NSK - W&H Bearing

Dental drill bearings are ultra-precision, miniature bearings specifically engineered for the high-speed rotational tools used in dentistry, such as high-speed handpieces, low-speed motors, and endodontic motors. These bearings are critical components that directly influence the performance, accuracy, vibration levels, noise, and longevity of the dental handpiece.

Key Characteristics and Requirements:

1. Extremely High Speed: Dental handpieces operate at phenomenal speeds, often ranging from 20,000 to over 400,000 RPM. Bearings must be designed to handle these speeds with minimal heat generation and wear.

2. High Precision and Low Vibration: To ensure patient comfort and procedural accuracy, these bearings are manufactured to the highest precision grades (e.g., ABEC 7 or ABEC 9). Any imperfection causes vibration that is transmitted to the clinician and patient.

3. Miniature Size: Due to the compact nature of dental handpieces, the bearings are very small, typically with outer diameters (OD) ranging from 4mm to 7mm.

4. Lubrication: They are often pre-lubricated with a minimal amount of a specific, medically acceptable high-speed grease. Some very high-speed designs may even use air-oil mist lubrication systems integrated into the dental unit.

5. Materials: Made from high-grade bearing steel (like 440C stainless steel) or advanced ceramics (silicon nitride - SiN) for superior performance.

6. Sterilization Compatibility: They must withstand repeated sterilization cycles (autoclaving) at high temperatures and pressures without degrading.

Common Types and Configurations:

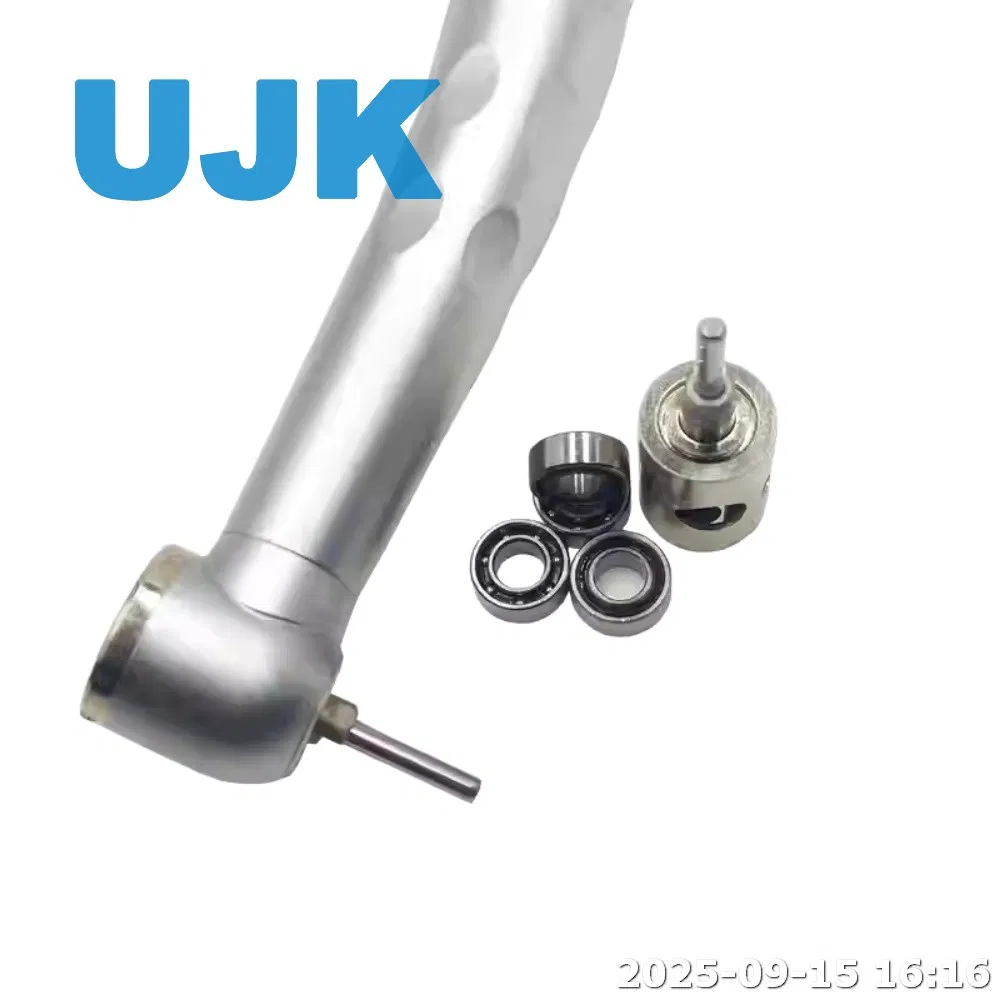

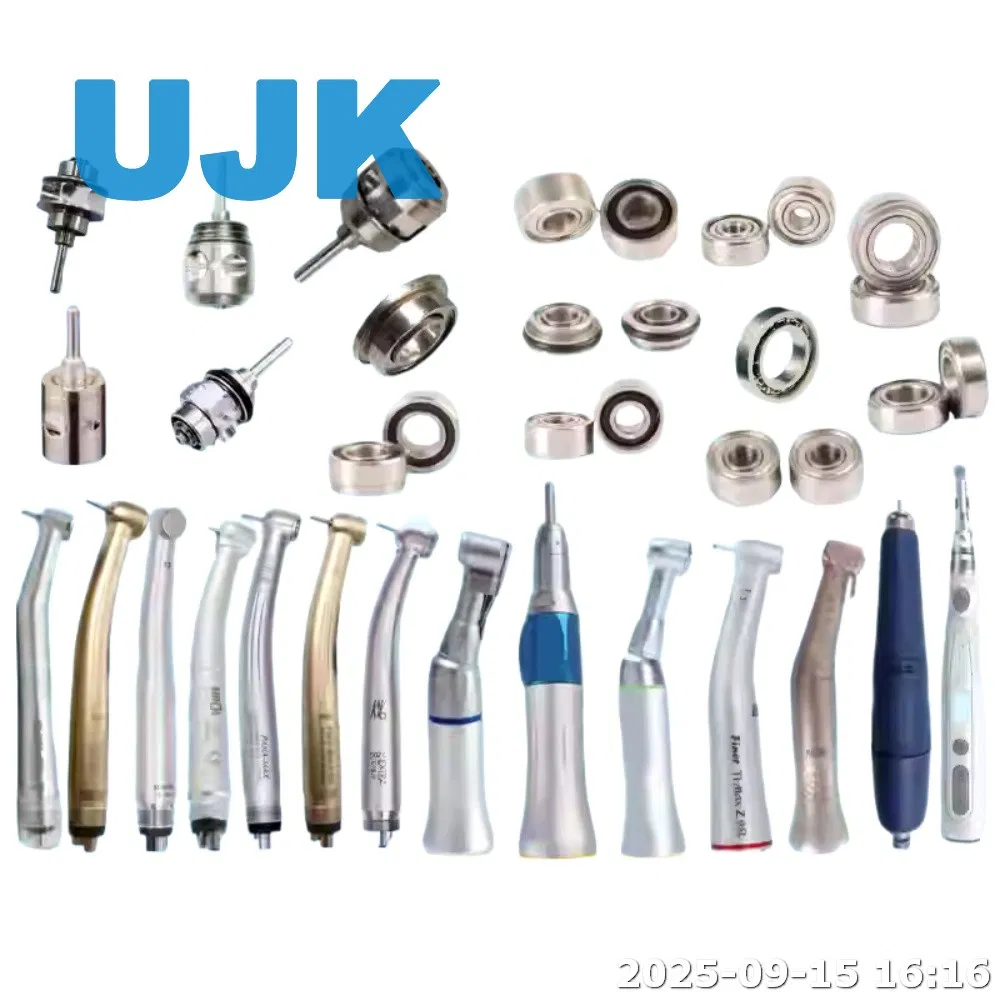

Dental handpieces typically use a pair of bearings to support the turbine or motor rotor.

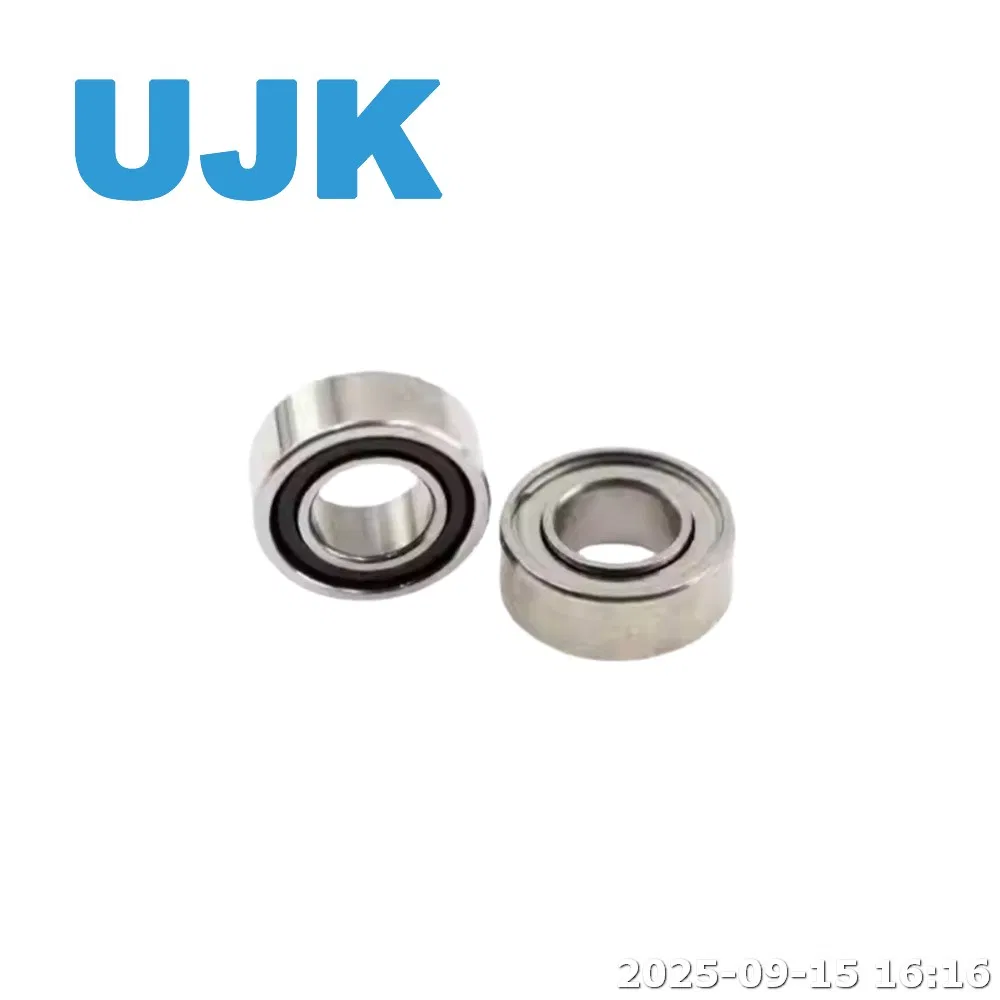

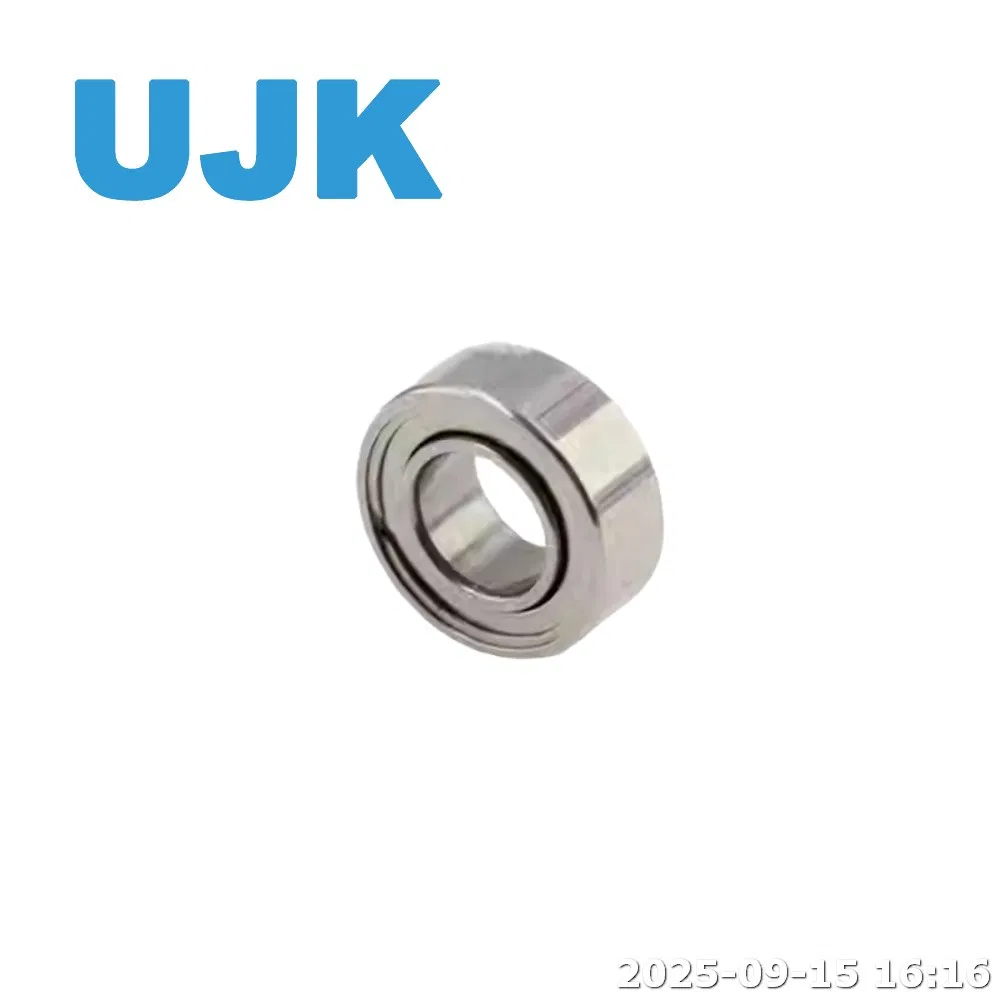

1. Standard Steel Ball Bearings (ZZ / 2RS)

• Description: The most common and cost-effective type. Features steel rings and steel balls.

• Shielding/Sealing: Usually have shields (ZZ metal shields) or rubber seals (2RS) to retain grease and protect against contamination.

• Application: Standard workhorse bearings for a wide range of high- and low-speed handpieces.

2. Hybrid Ceramic Bearings

• Description: This is the premium and most performance-oriented type. They feature steel rings but with ceramic (silicon nitride) balls.

• Advantages:

  • Lighter Weight: Ceramic balls are about 60% lighter than steel balls, significantly reducing centrifugal force at ultra-high speeds.

  • Higher Hardness: Much harder than steel, leading to greatly extended service life.

  • Reduced Heat Generation: Lower density and superior smoothness reduce friction.

  • Non-Magnetic: Resistant to corrosion.

• Application: High-end, premium dental handpieces where maximum speed, low noise, and long life are critical.

3. Full Ceramic Bearings

• Description: Less common and very specialized. Constructed entirely from ceramic (rings and balls).

• Application: Used in specific applications where extreme corrosion resistance or non-magnetic properties are absolutely paramount.

Common Models and Sizing:

Dental bearing model numbers are typically standardized based on their dimensions. The most common numbering system follows the ISO "R" series for miniature bearings.

The model number is usually a combination of numbers indicating the bore size and a standard series code.

Note on "7ZZ": The 7 in bearings like R6-7ZZ often denotes a specific internal design, cage type, or tolerance level that is optimized for very high-speed operation compared to a standard R6ZZ.

Conclusion:

Selecting the correct dental bearing is crucial for handpiece repair and performance. While standard steel bearings (R4ZZ, R6ZZ) are economical, upgrading to Hybrid Ceramic Bearings (HCB) is the standard for restoring or enhancing a handpiece to its quietest, smoothest, and most durable state. Technicians must match the model number precisely based on the old bearings removed from the handpiece.
