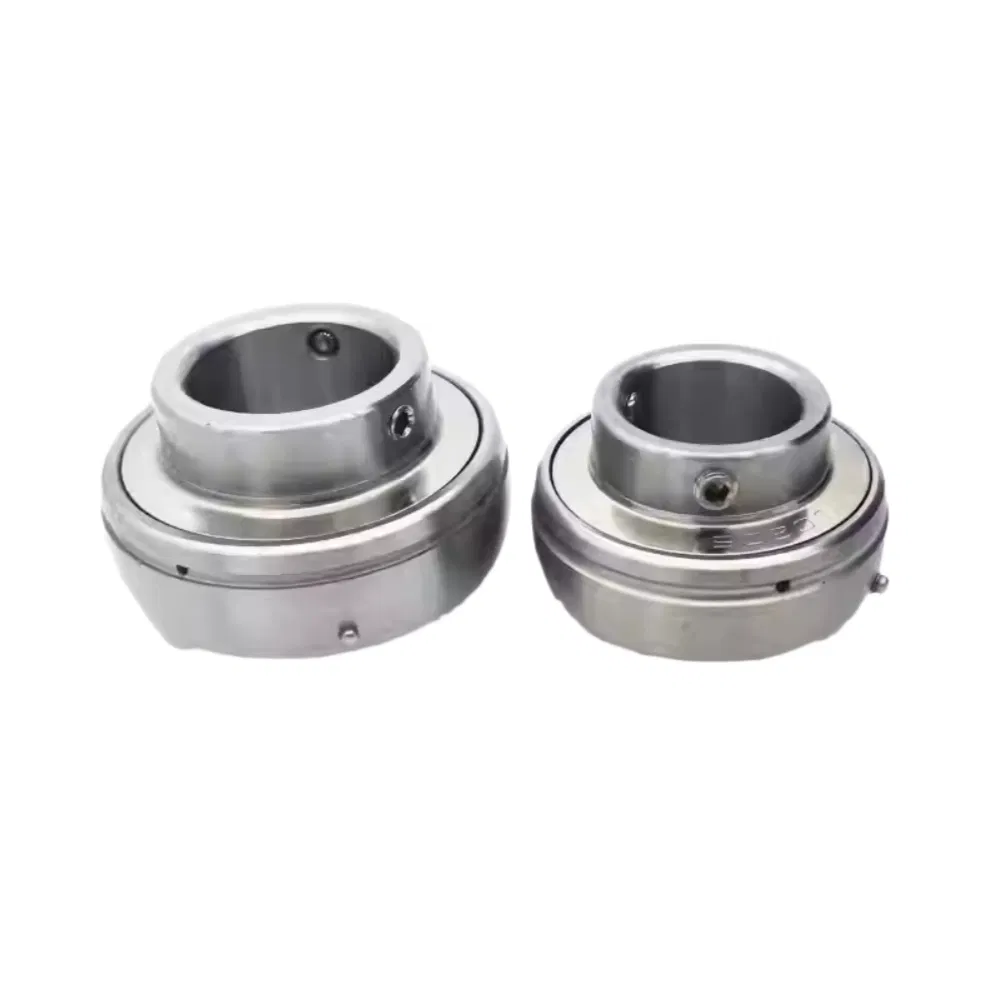

Stainless Insert Ball Bearings Insert Bearing UC Ucf UC204-12 UC205 F207 UC209 Ufc 208 P205 Bearings Pillow Block House Pillow Block Bearing

Stainless Steel Insert Bearing Units (External Spherical Bearings)

Overview:
Stainless steel insert bearing units, commonly known as external spherical bearings or "pillow block bearings," are self-contained, pre-assembled units consisting of a deep groove ball bearing with a spherical outer ring, housed in a bearing seat. The key feature of these units is their construction from stainless steel, which provides superior resistance to corrosion, rust, and chemical attack, making them ideal for harsh operating environments.

Key Design Features:

• Corrosion Resistance: Manufactured primarily from AISI 304 or AISI 316 stainless steel, these bearings excel in wet, humid, and chemically aggressive environments where standard carbon steel units would fail.

• Self-Alignment: The spherical outer ring of the bearing allows it to pivot within the stamped steel or cast housing, providing automatic self-alignment. This compensates for shaft misalignment and mounting inaccuracies, reducing stress and wear.

• Sealing: Typically equipped with highly effective labyrinth seals or contact seals (often made from FDA-approved materials like  for food applications). These seals protect the bearing interior from contaminants like water, dust, and abrasive particles.

• Easy Installation & Maintenance: The set-screw or eccentric collar locking mechanism ensures a secure fit on the shaft. Their pre-lubricated and pre-assembled design simplifies installation and requires minimal maintenance.

Common Series & Designations:
These units follow standardized numbering systems based on their housing style and bore size.

• Housing Types:

  • Pillow Block (UCP, SBP): The most common type, with a base for mounting on a flat surface.

  • Flange Block (UCF, SBF): Feature a flange for perpendicular mounting to a surface.

  • Take-Up Unit (UCT): Feature adjustable housing for setting belt or chain tension.

• Bearing Insert Codes: The bearing itself is often designated by a standard number (e.g., UC203, UC304). The "UC" typically denotes a set-screw locking type, while "UK" may denote an eccentric locking collar.

• Stainless Steel Designation: Often indicated by a prefix or suffix like SS, SUS, or -2A (e.g., SS UCP 204).

Primary Material Types:

• AISI 304 (SUS304) Stainless Steel: Offers excellent general corrosion and rust resistance. Suitable for most applications involving water, food products, and many chemicals.

• AISI 316 (SUS316) Stainless Steel: Provides enhanced resistance to chlorides and acids (e.g., saltwater, bleaching agents). Ideal for marine, pharmaceutical, and highly aggressive chemical environments.

Typical Applications:
Their durability and corrosion resistance make them essential in industries where hygiene and moisture are constant factors:

• Food & Beverage Processing: Conveyor systems, bottling lines, mixers, and packaging equipment that require frequent wash-downs.

• Chemical & Pharmaceutical Industry: Equipment exposed to solvents, acids, and sterilizing agents.

• Wastewater Treatment & Marine Applications: Machinery operating in consistently wet or saltwater environments.

• Agricultural Machinery: Equipment exposed to weather, fertilizers, and organic matter.
