An Introduction to Flanged Linear Ball Bearings (LMF, LMK, LMH, LME, LMB Series)

Flanged linear ball bearings are a specialized type of linear motion bearing that incorporates an integral flange (a protruding rim or collar) on the outer housing. This flange is a critical feature, as it allows for straightforward mounting and securing of the bearing onto a machine frame or plate using screws or bolts, eliminating the need for a press-fit into a housing bore.

They are ideal for applications where space is limited, a simple mounting solution is desired, or where the bearing needs to be positioned at the end of a support structure.

Here is a breakdown of the common flanged series:

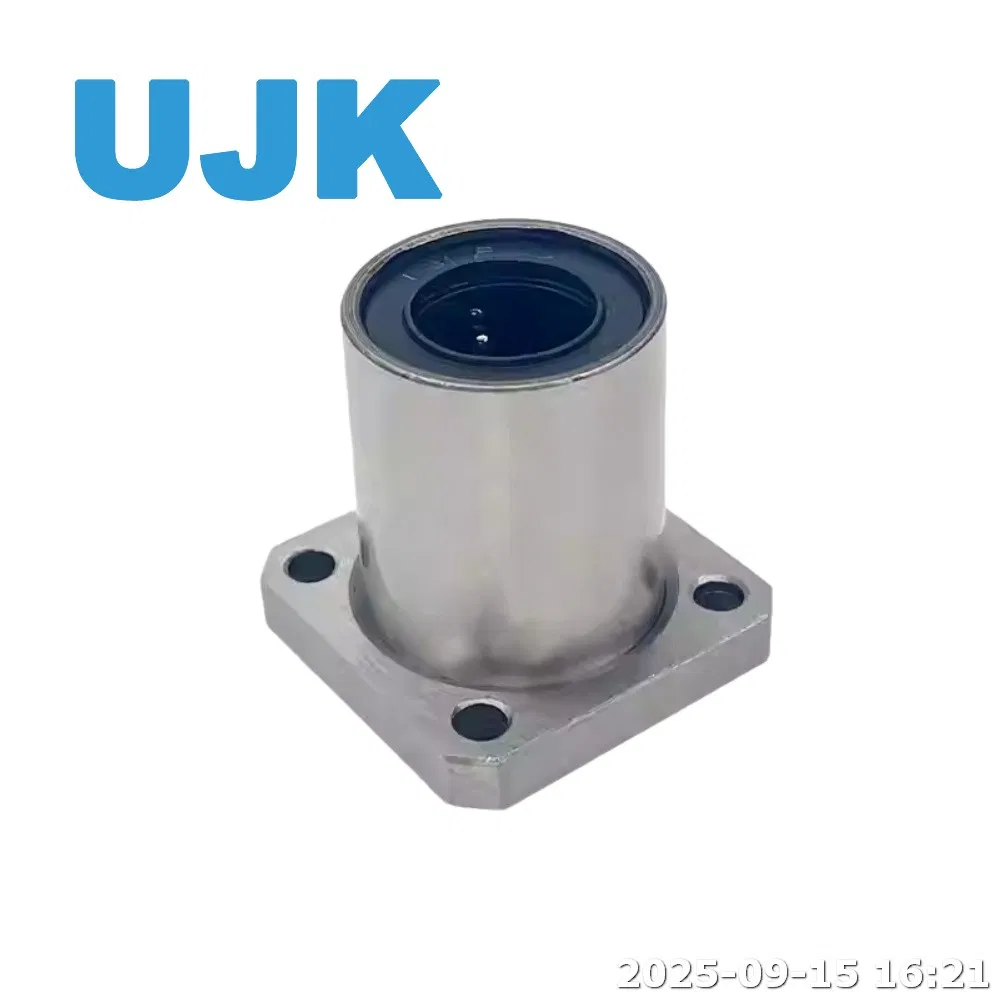

1. LMF Series (Square Flange Linear Bearing)

• Description: The LMF series features a compact, square-shaped flange with a mounting hole in each corner. This design provides a stable and secure mounting base, resisting rotation effectively.

• Key Feature: Square profile is space-efficient and offers excellent resistance to torque. The four mounting holes ensure a rigid connection.

• Application: Perfect for applications with limited radial space and where high stability is required, such as in compact automation modules, Z-axis drives, and precision stages.

2. LMK / LMH Series (Circular Flange Linear Bearing)

• Description: This series is characterized by a circular (round) flange. The "LMK" designation often refers to a specific size or standard. The circular shape is machined with several threaded mounting holes (typically 2, 3, or 4) arranged on a bolt circle.

• Key Feature: The circular design is versatile and can be easily aligned. It is often more compact in its lateral profile compared to the square flange.

• Application: Widely used in general machinery, packaging equipment, and anywhere a robust and simple flanged solution is needed. The circular design is also common in applications where the bearing might need to be pivoted for alignment during installation.

3. LME Series (Flanged Bearing with Eccentric Collar Groove)

• Description: The LME series combines the benefits of a flange with the precision-adjustment feature of an eccentric locking collar groove on its outer diameter. It can have either a square or circular flange.

• Key Feature: The integrated groove allows for the installation of a locking collar. This collar enables precise radial adjustment to eliminate internal clearance (play) between the bearing and the shaft, ensuring zero backlash and high positional accuracy.

• Application: Essential for high-precision applications like CNC machining centers, measuring instruments, and robotic arms where any amount of play is unacceptable. It also secures the bearing firmly in its mounted position.

4. LMB Series (Flanged Bearing with Closed-End / Self-Aligning)

• Description: The LMB series refers to flanged bearings that are closed at one or both ends. This design helps to retain lubrication and provides a basic level of protection against large contaminants.

• Key Feature: The primary feature is the built-in sealing from the closed ends. Some LMB-style bearings are also designed to be self-aligning, allowing them to compensate for minor misalignments between the bearing and the guide shaft.

• Application: Suitable for environments with light dust or debris where simple protection is needed. The self-aligning capability is valuable in applications where perfect shaft parallelism is difficult to achieve.

Summary and Selection Guide:

• Mounting Simplicity: All flanged series (LMF, LMK, LMH, LME, LMB) offer easy mounting onto a flat surface.

• Space Constraints: Choose LMF (square) for a compact, torque-resistant solution. Choose LMK/LMH (round) for versatile, general-purpose use.

• Precision & Zero Backlash: The LME series with its eccentric collar is the definitive choice for high-accuracy applications.

• Durability & Misalignment: The LMB series offers basic sealing and can often accommodate slight mounting misalignments.
