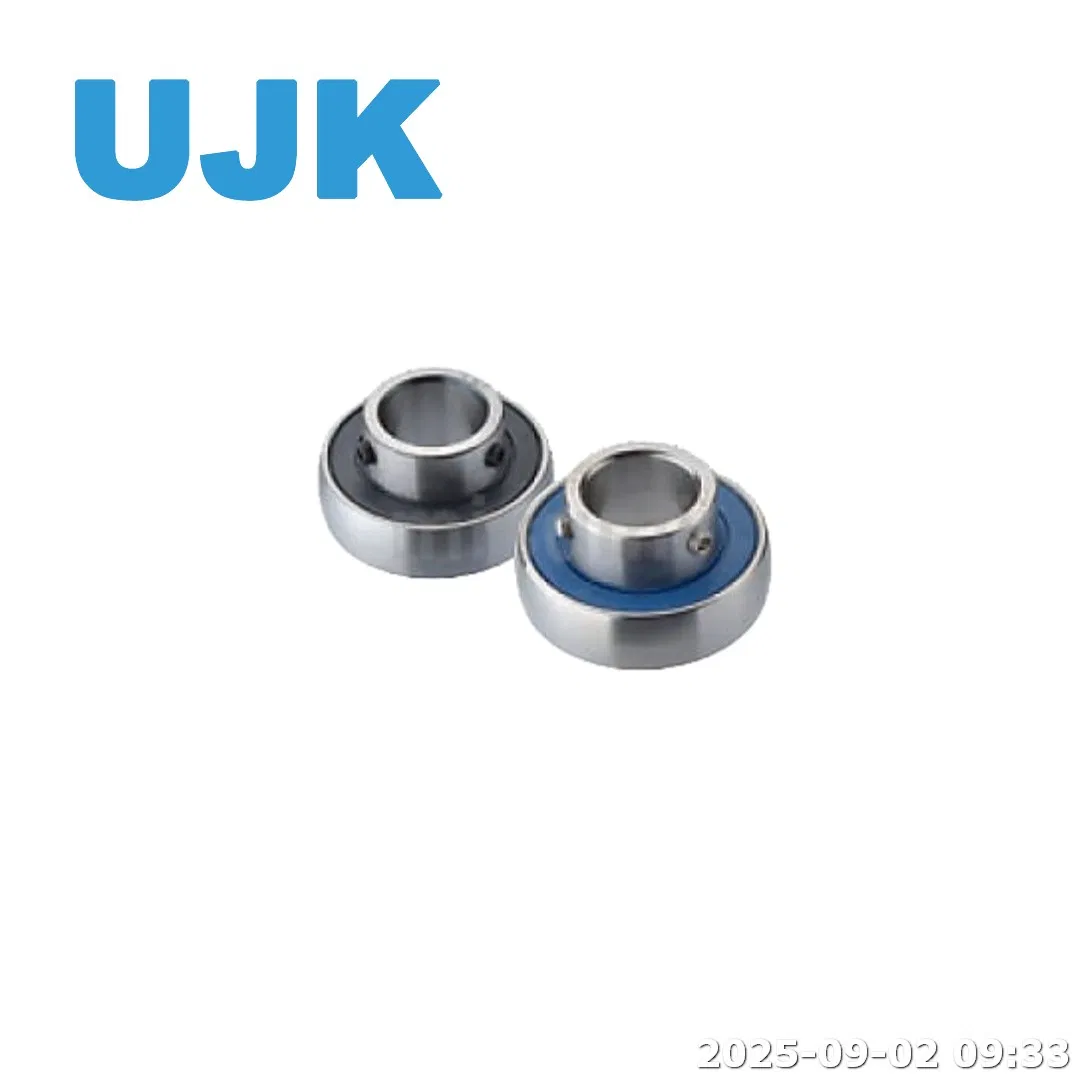

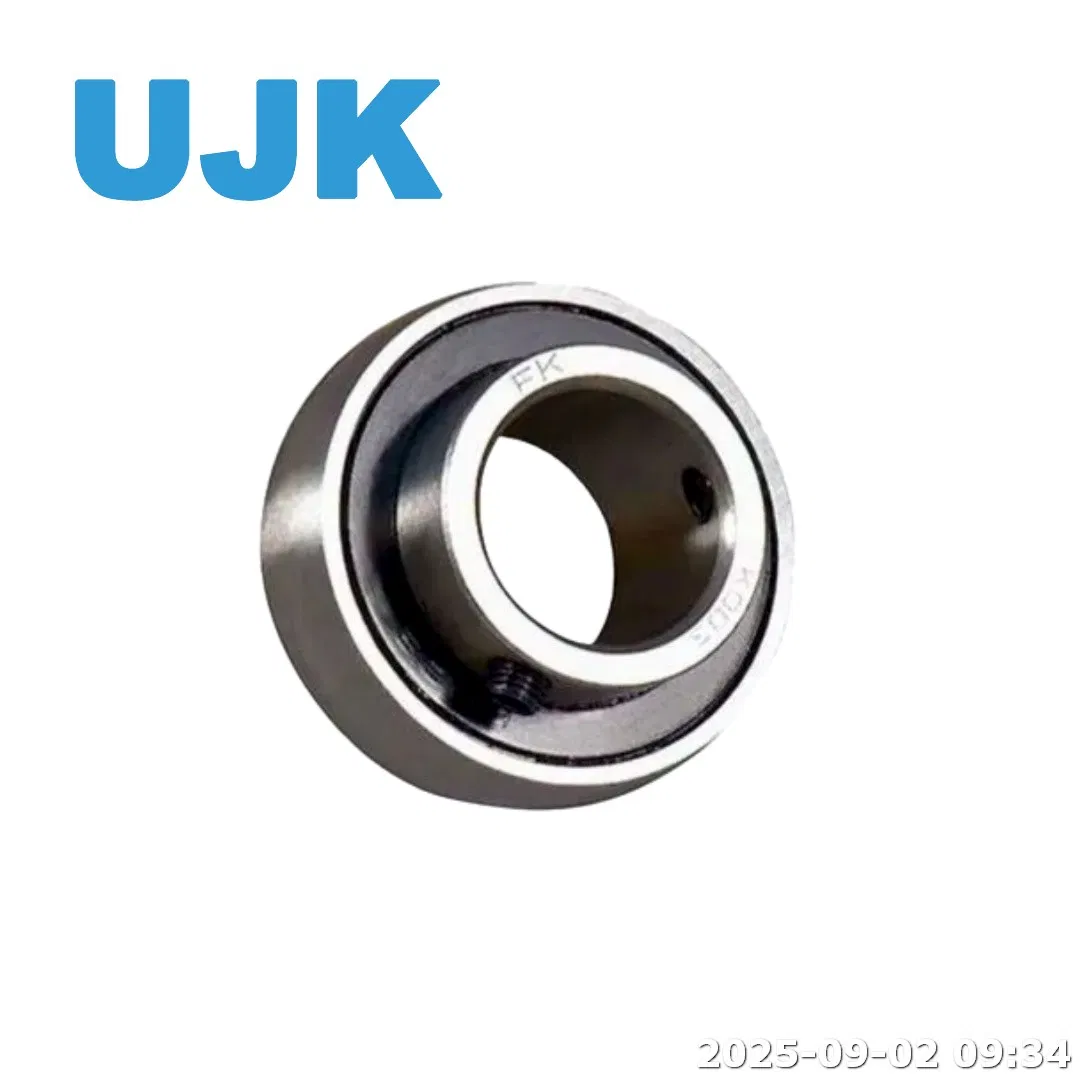

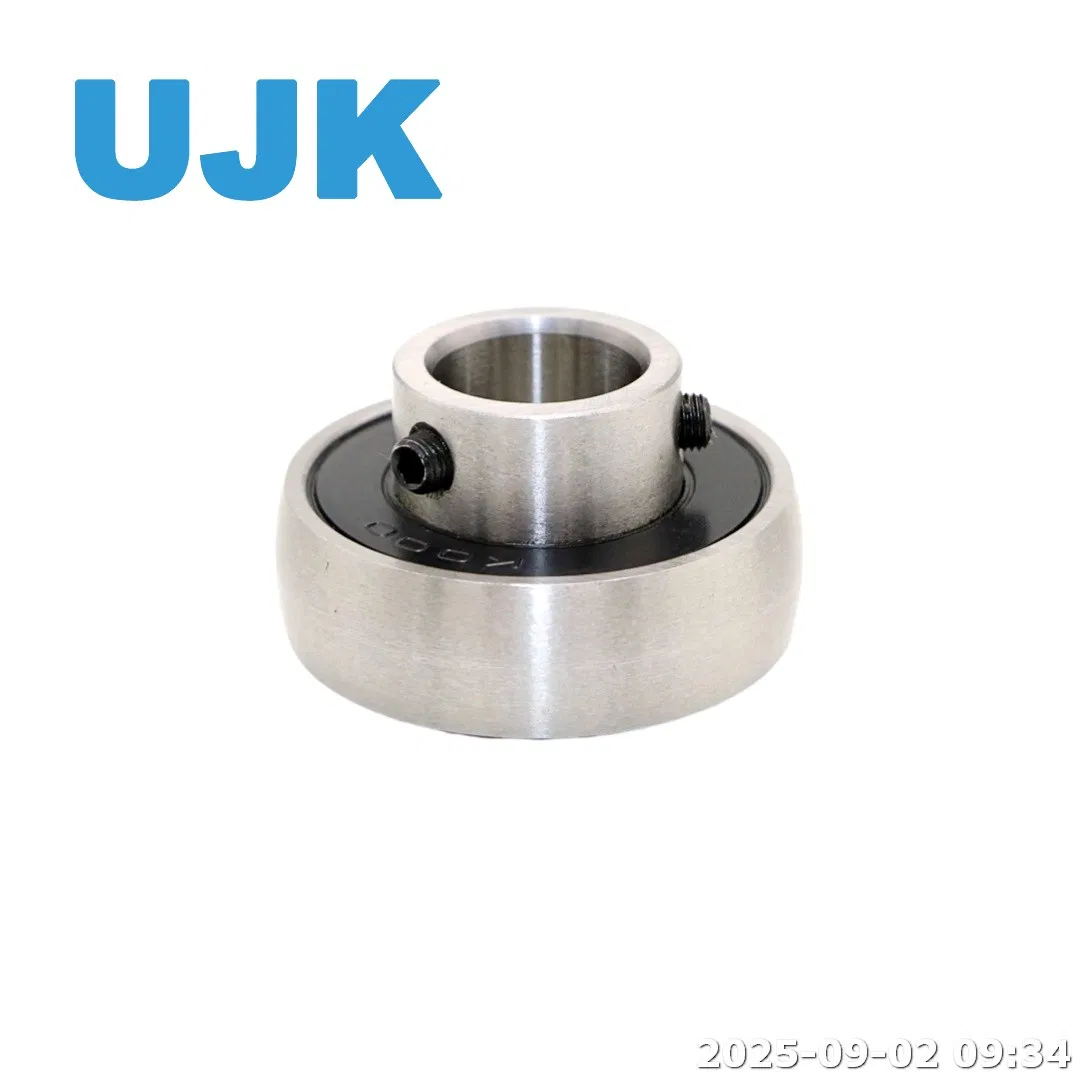

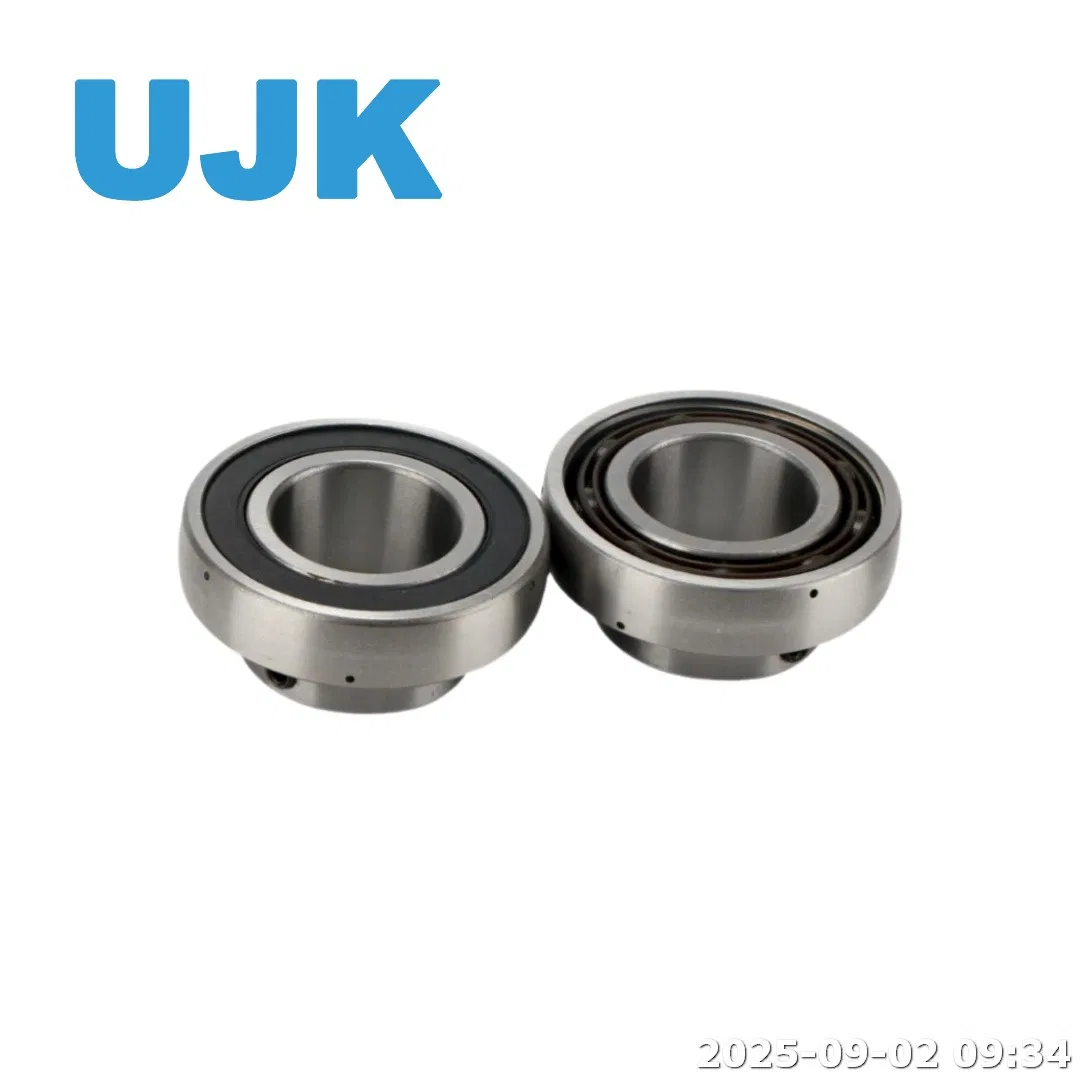

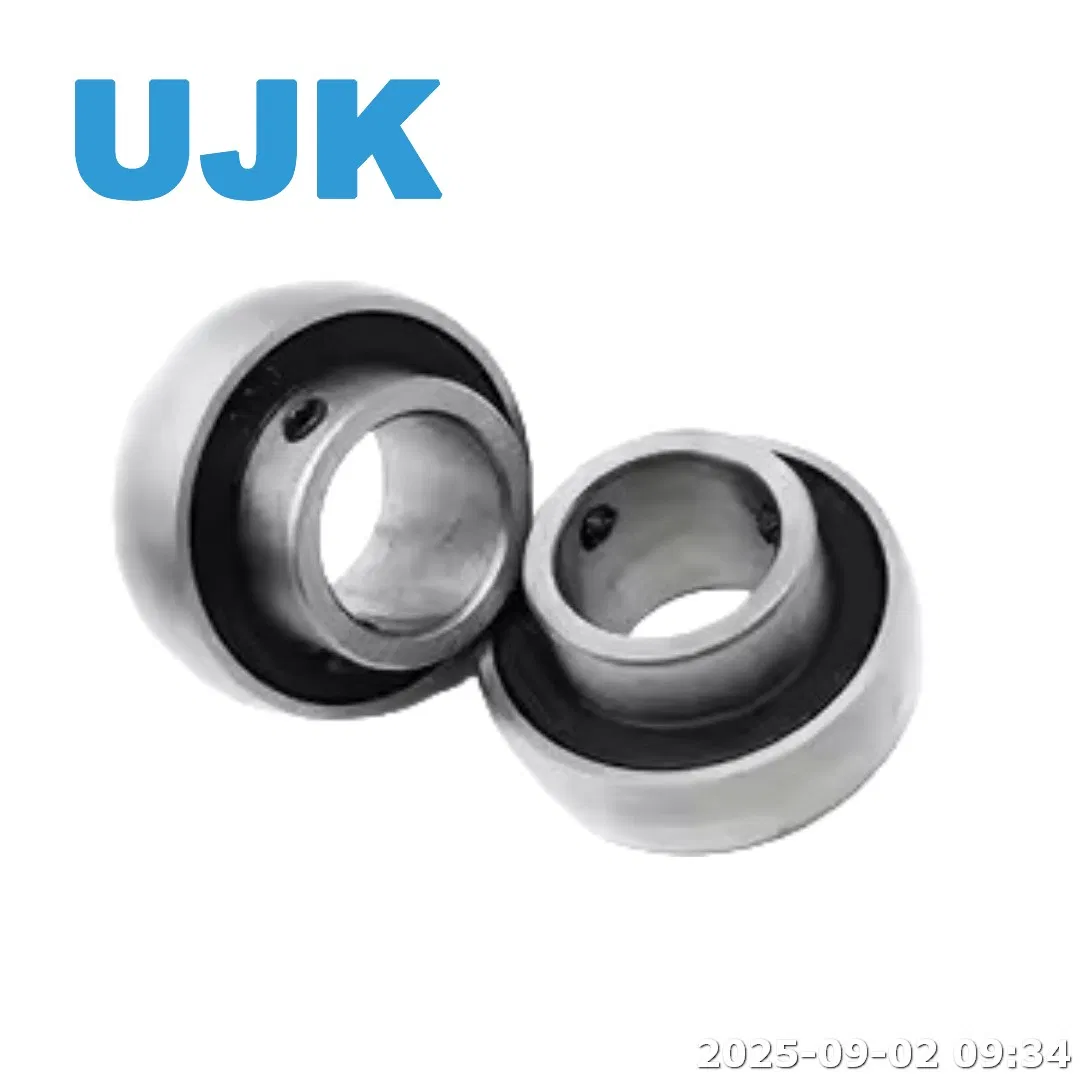

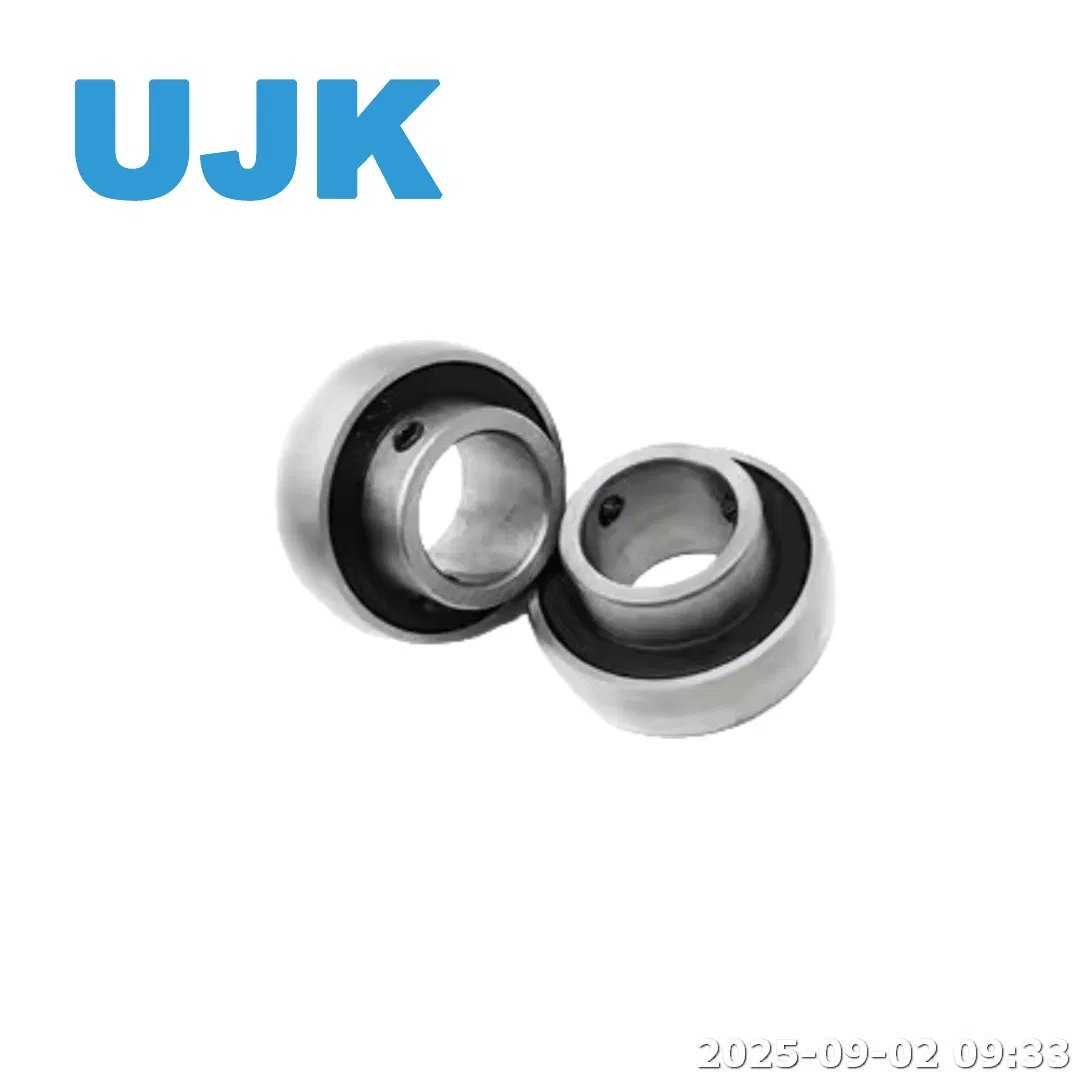

Insert Bearing Chrome Steel and Stainless Steel K000 K001 K002 K003 K004 K005 K006
|
Still deciding? Get samples of $ !
Request Sample
|
Product Details
| Customization: | Available |
|---|---|
| Vibration: | Zv1 Zv2 Zv3 |
| Hardness: | HRC60--62 |
Diamond Member Since 2018
Suppliers with verified business licenses
Audited Supplier Audited by an independent third-party inspection agency
Find Similar Products
- Overview
- Product Description
Basic Info.
Model NO.
K000 K001 K002 K003 K004 K005 K006
Cage
Steel Nylon Brass
Material
Chrome Steel Gcr15
Service
OEM
Grease
Sheel Great Wall
Precision
P0 P6 P5
Package
Industry or Single Box
Transport Package
Industry or Single Box
Specification
Standard
Trademark
UJK
Origin
China
HS Code
84821020
Production Capacity
100000
Product Description
| Bearing NO. | Dimensions(mm/in.) | Dynamic load ratings(N) | Static load ratings(N) | Weight(kg) | |||||||
| d | D | B | C | r | S | G | ds | ||||
| K000 | 10 | 26 | 14 | 8 | 0.5 | 4 | 3 | M3X0.35 | 4606 | 1906 | 0.02 |
| SS-K000 | 10 | 1.0236 | 0.551 | 0.315 | 0.5 | 0.157 | 0.118 | M3X0.35 | 4606 | 1906 | 0.02 |
| K001 | 12 | 28 | 14.5 | 8 | 0.5 | 4 | 3 | M3X0.35 | 5096 | 2401 | 0.03 |
| SS-K001 | 12 | 1.1024 | 0.571 | 0.315 | 0.5 | 0.157 | 0.118 | M3X0.35 | 5096 | 2401 | 0.03 |
| K002 | 15 | 32 | 16.5 | 9 | 0.5 | 4.5 | 3.5 | M4X0.5 | 5586 | 2842 | 0.05 |
| SS-K002 | 15 | 1.2598 | 0.65 | 0.354 | 0.5 | 0.177 | 0.138 | M4X0.5 | 5586 | 2842 | 0.05 |
| K003 | 17 | 35 | 17.5 | 10 | 0.5 | 5 | 3.5 | M4X0.5 | 5978 | 3284 | 0.05 |
| SS-K003 | 17 | 1.3779 | 0.689 | 0.394 | 0.5 | 0.197 | 0.138 | M4X0.5 | 5978 | 3284 | 0.05 |
| K004 | 20 | 42 | 21 | 12 | 1 | 6 | 4 | M5X0.5 | 9359 | 5047 | 0.09 |
| SS-K004 | 20 | 1.6535 | 0.827 | 0.472 | 1 | 0.236 | 0.157 | M5X0.5 | 9359 | 5047 | 0.09 |
| K005 | 25 | 47 | 22.5 | 12 | 1 | 6 | 4.5 | M5X0.5 | 10094 | 5831 | 0.1 |
| SS-K005 | 25 | 1.8504 | 0.886 | 0.472 | 1 | 0.236 | 0.177 | M5X0.5 | 10094 | 5831 | 0.1 |
| K006 | 30 | 55 | 24.5 | 13 | 1.5 | 6.5 | 5 | M5X0.5 | 13230 | 8281 | 0.15 |
| SS-K006 | 30 | 2.1653 | 0.965 | 0.512 | 1.5 | 0.256 | 0.197 | M5X0.5 | 13230 | 8281 | 0.15 |
