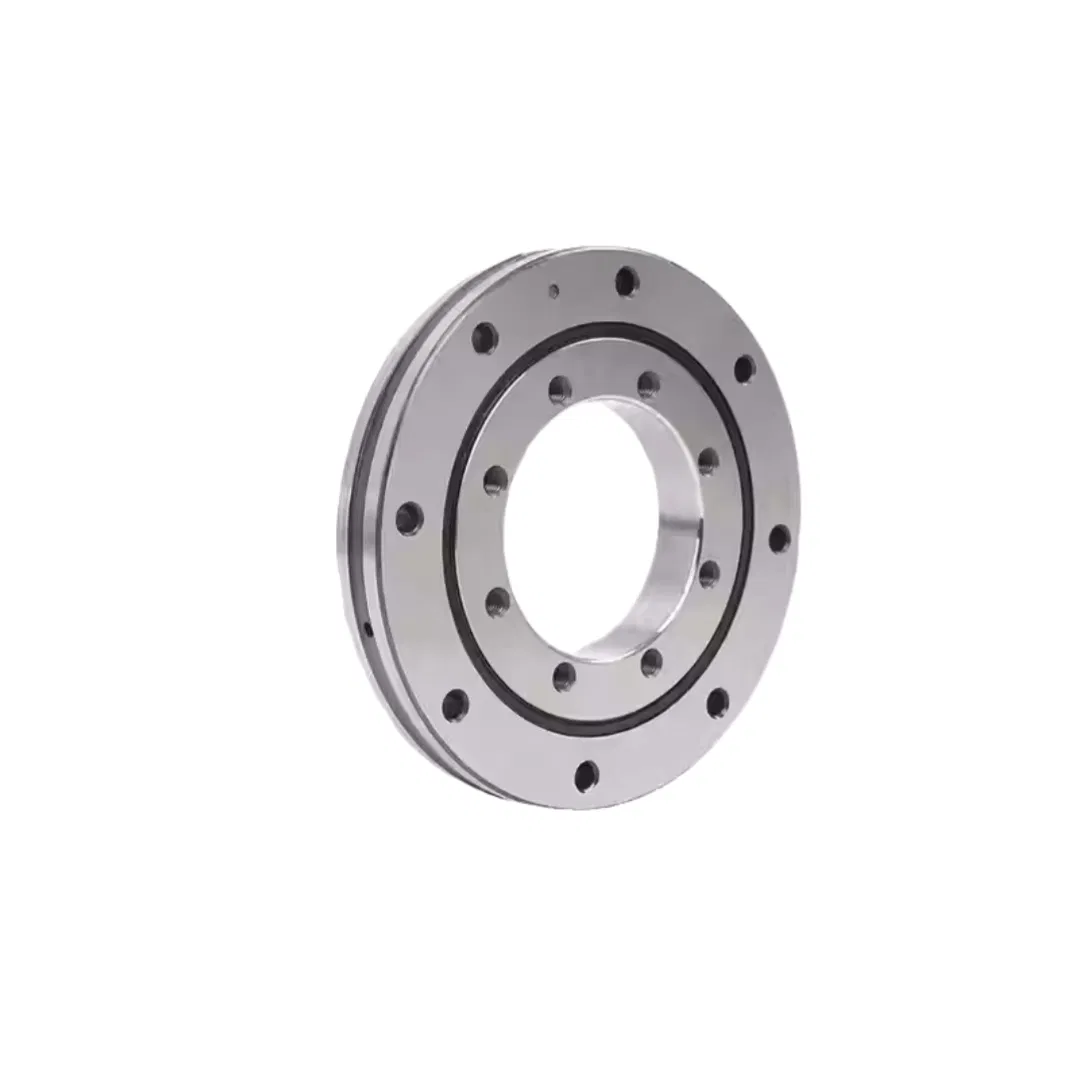

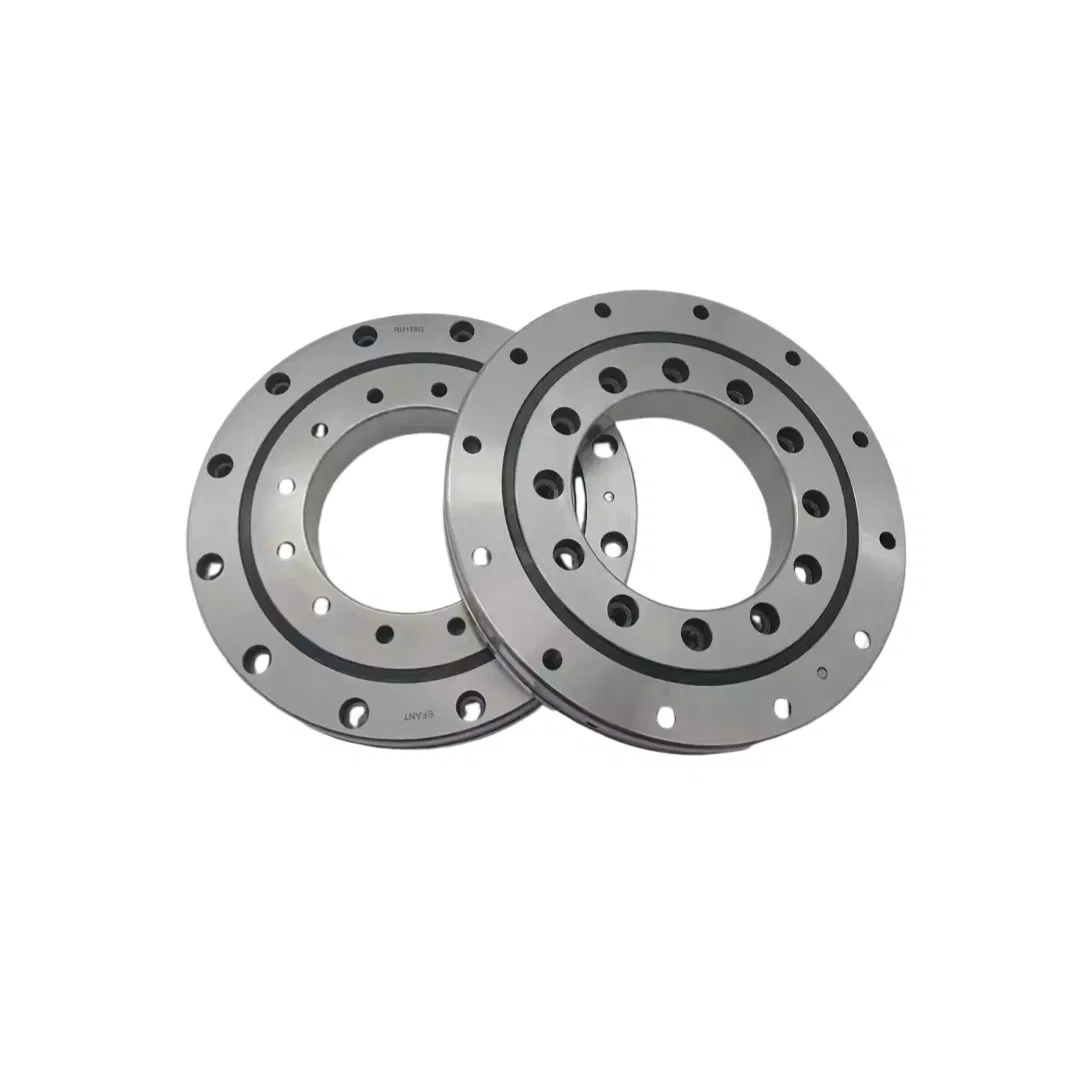

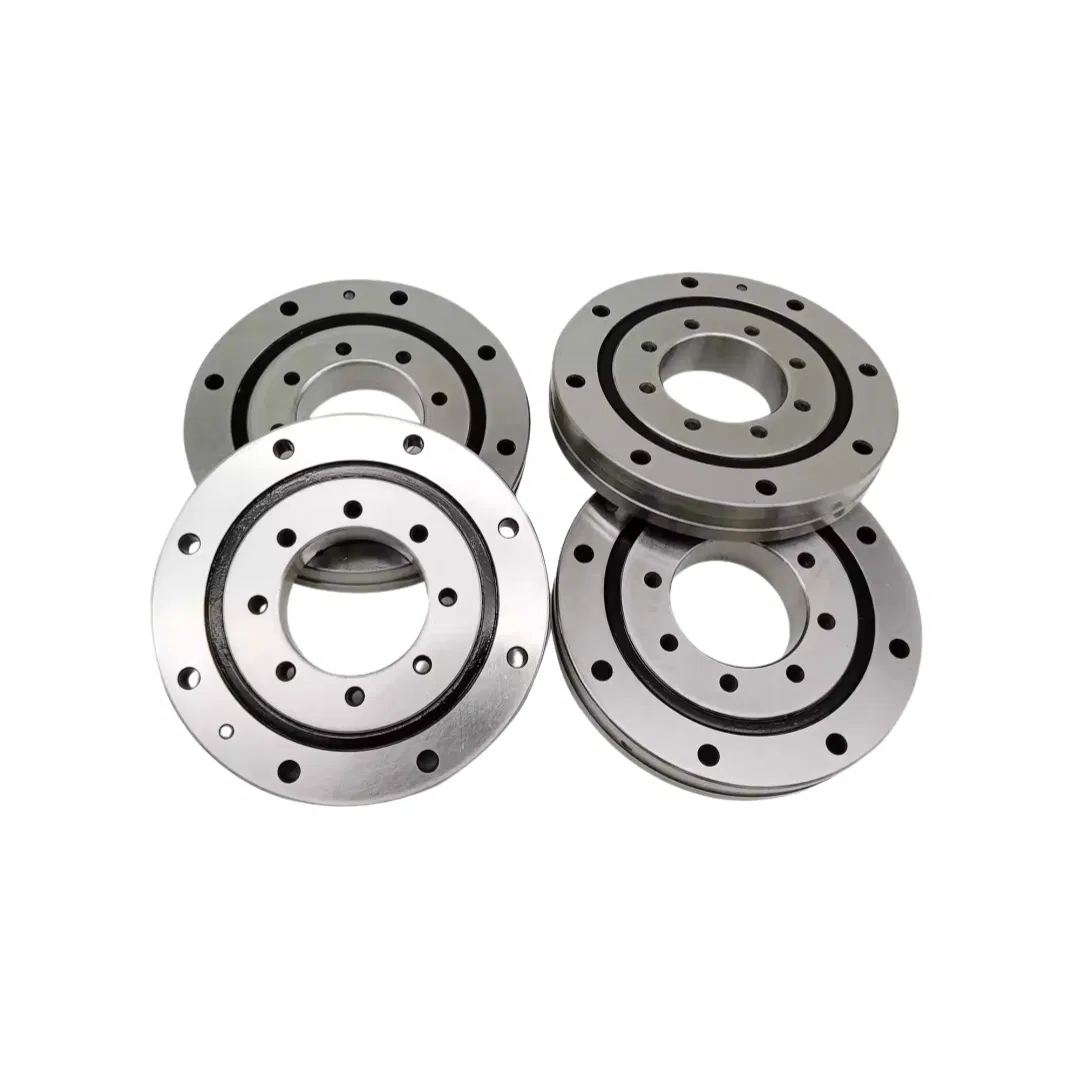

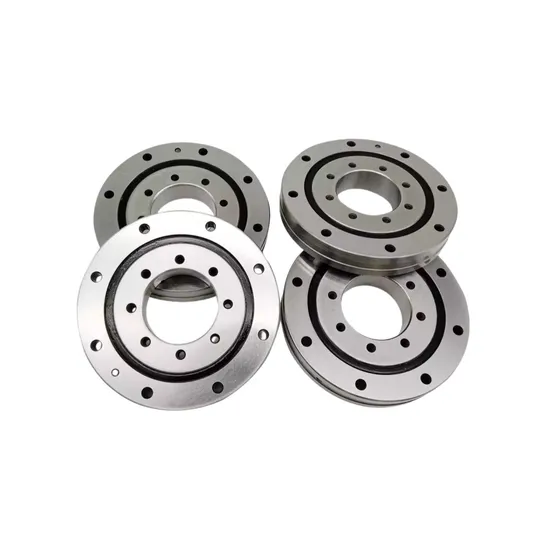

Durability and Longevity Cross Roller Bearing Crbh 14025A Size140*200*25mm for Robotic Arms and Joints

Crossed Roller Bearings: The Pinnacle of Precision and Rigidity

Overview
A crossed roller bearing is a specialized type of rotary bearing characterized by its cylindrical rollers arranged in a crisscross (90°) pattern between two integral raceways. This unique alternating, orthogonal arrangement allows a single bearing to simultaneously support high loads in all directions-radial, axial, and moment loads-with exceptional precision and rigidity. This design makes them fundamentally superior to combinations of traditional bearings for applications requiring high accuracy and compactness.

Key Features & Advantages:

• High Rigidity and Load Capacity: The line contact of the rollers and the cross arrangement provide maximum support, enabling the bearing to handle complex combined loads with minimal elastic deformation.

• High Rotational Accuracy: Manufactured to ultra-precise tolerances (e.g., P5, P4, ABEC 5, ABEC 7), they ensure extremely smooth and accurate rotation, which is critical for precision machinery.

• Compact Design & Space Saving: A single crossed roller bearing replaces the need for multiple conventional bearings arranged in pairs (e.g., two angular contact bearings), significantly reducing the overall size and weight of the assembly.

• Simplified Design and Assembly: Their single-unit design simplifies the surrounding structure, reduces the number of components, and eases installation, ensuring optimal preload and alignment.

• Smooth Motion: The precision-ground rollers and raceways provide consistent, low-friction motion with high stiffness.

Common Types and Mounting Styles:

• Inner Ring Split / Outer Ring Integral: The inner ring is split into two parts for easy installation and precise preload adjustment by tightening connecting bolts.

• Outer Ring Split / Inner Ring Integral: The outer ring is split, favoring outer ring mounting.

• Standard Ring (Non-Split): Typically requires a specially designed housing for installation.

Common Model Series Prefixes:

The nomenclature varies significantly by manufacturer, but common series include:

• XR/CRB/CRBH Series: A very common type where the inner ring is split and the outer ring is integral. (e.g., XR from IKO, CRB from THK, CRBH from NSK).

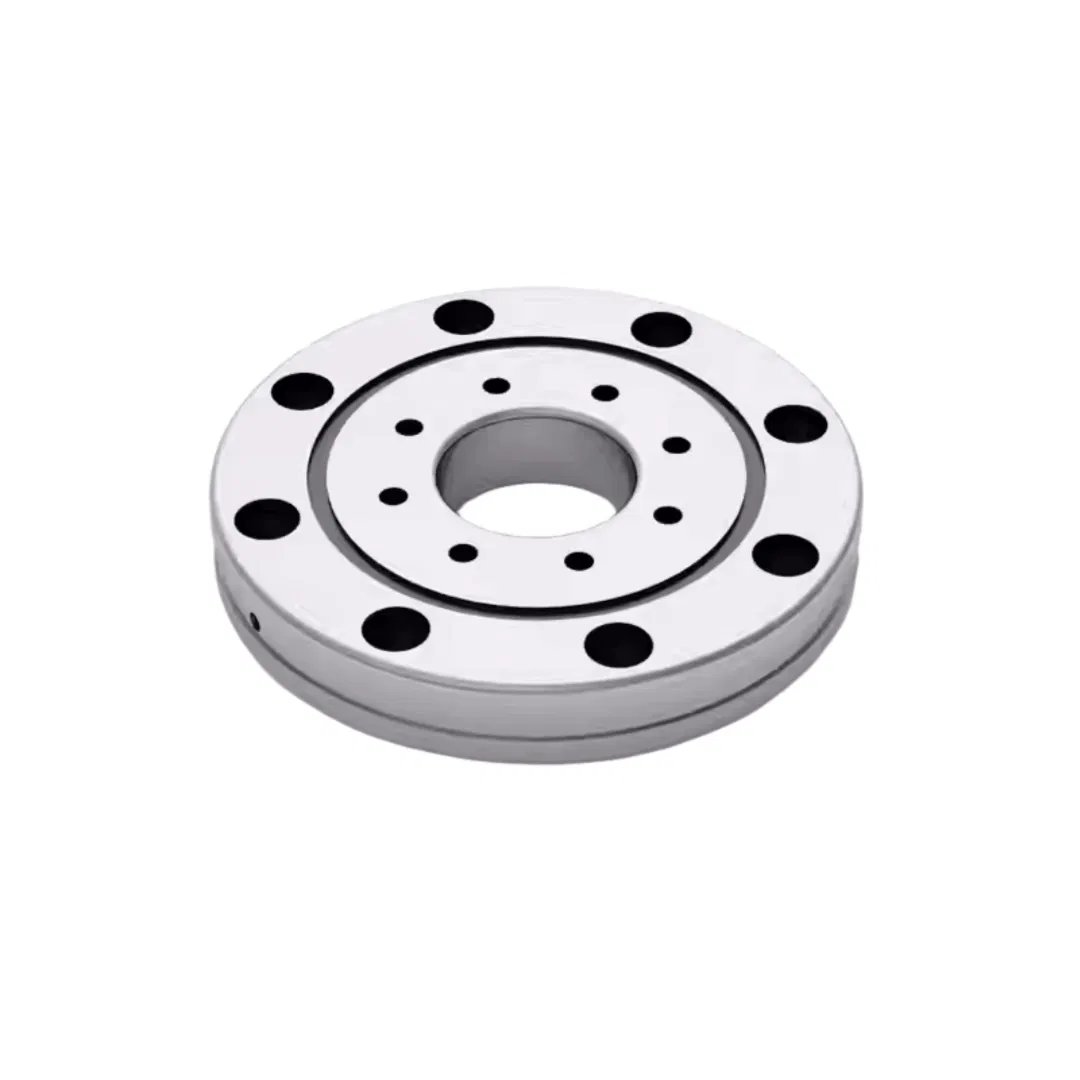

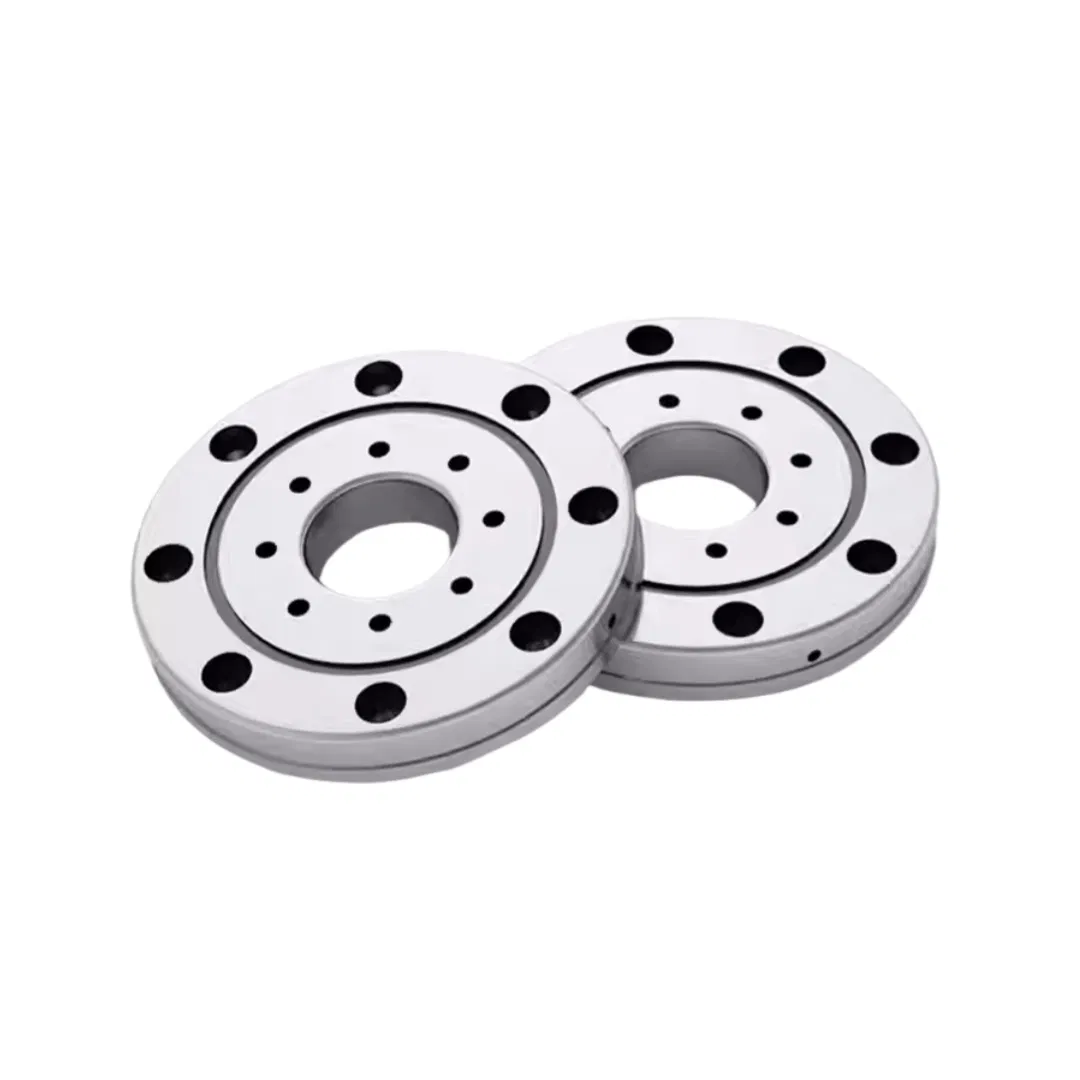

• RU/RA/RE Series: Often feature a single-piece outer ring with mounting holes for direct installation onto a machine surface.

• XR/JXR Series (Thin-Type): Designed for applications with severe space constraints. (e.g., JXR from IKO).

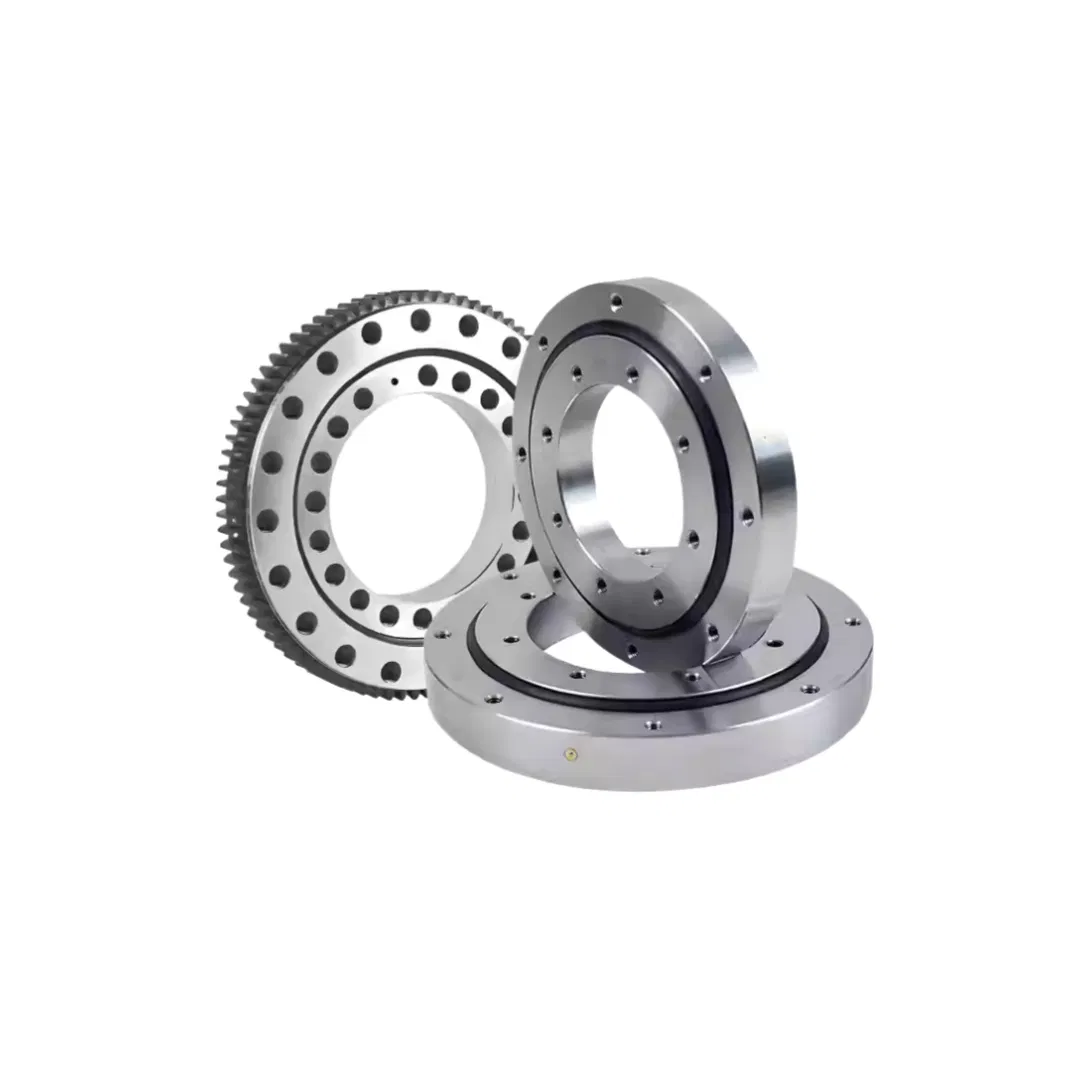

• Crossed Roller Slewing Rings: Large-diameter bearings for rotary tables, often with gear teeth integrated into the outer or inner ring.

Typical Applications:
Crossed roller bearings are indispensable in high-precision fields:

• Robotics: Robotic arm joints, rotary actuators, and precision reducers.

• Machine Tools: Rotary tables, indexing heads, machining centers, and grinding machine spindles.

• Semiconductor Manufacturing: Wafer handling robots, stepper stages, and inspection equipment.

• Medical Equipment: CT and MRI scanner gantries, surgical robot joints.

• Aerospace and Defense: Radar antenna bases, optical aiming and guidance systems.

• Measuring and Inspection Instruments: Precision rotary stages for coordinate measuring machines (CMMs).
