29416 Bearing 29416e Spherical Thrust Roller Bearing 29416-E1 29416m 29416-Ej 29414em 29416 M Bearings
|
Still deciding? Get samples of $ !
Order Sample
|
| Customization: | Available |
|---|---|
| Package: | Plastic Tube or Single Box |
| Precision: | P0 P6 P5 |
| Shipping Cost: | Contact the supplier about freight and estimated delivery time. |
|---|
| Payment Methods: |
|
|---|---|
| Support payments in USD |
| Secure payments: | Every payment you make on Made-in-China.com is protected by the platform. |
|---|
| Refund policy: | Claim a refund if your order doesn't ship, is missing, or arrives with product issues. |
|---|
Suppliers with verified business licenses
Audited Supplier Audited by an independent third-party inspection agency
Basic Info.
Packaging & Delivery
Product Description

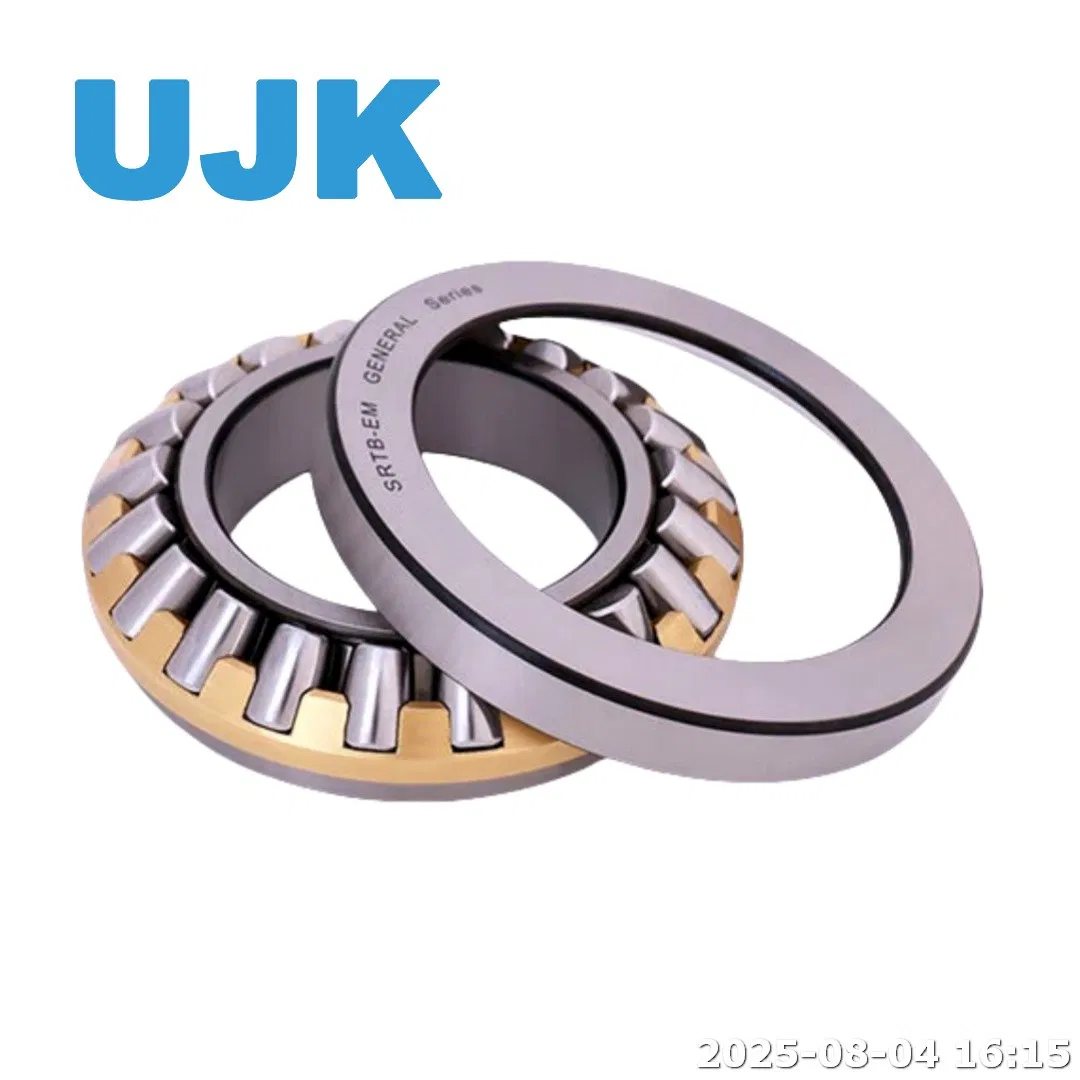

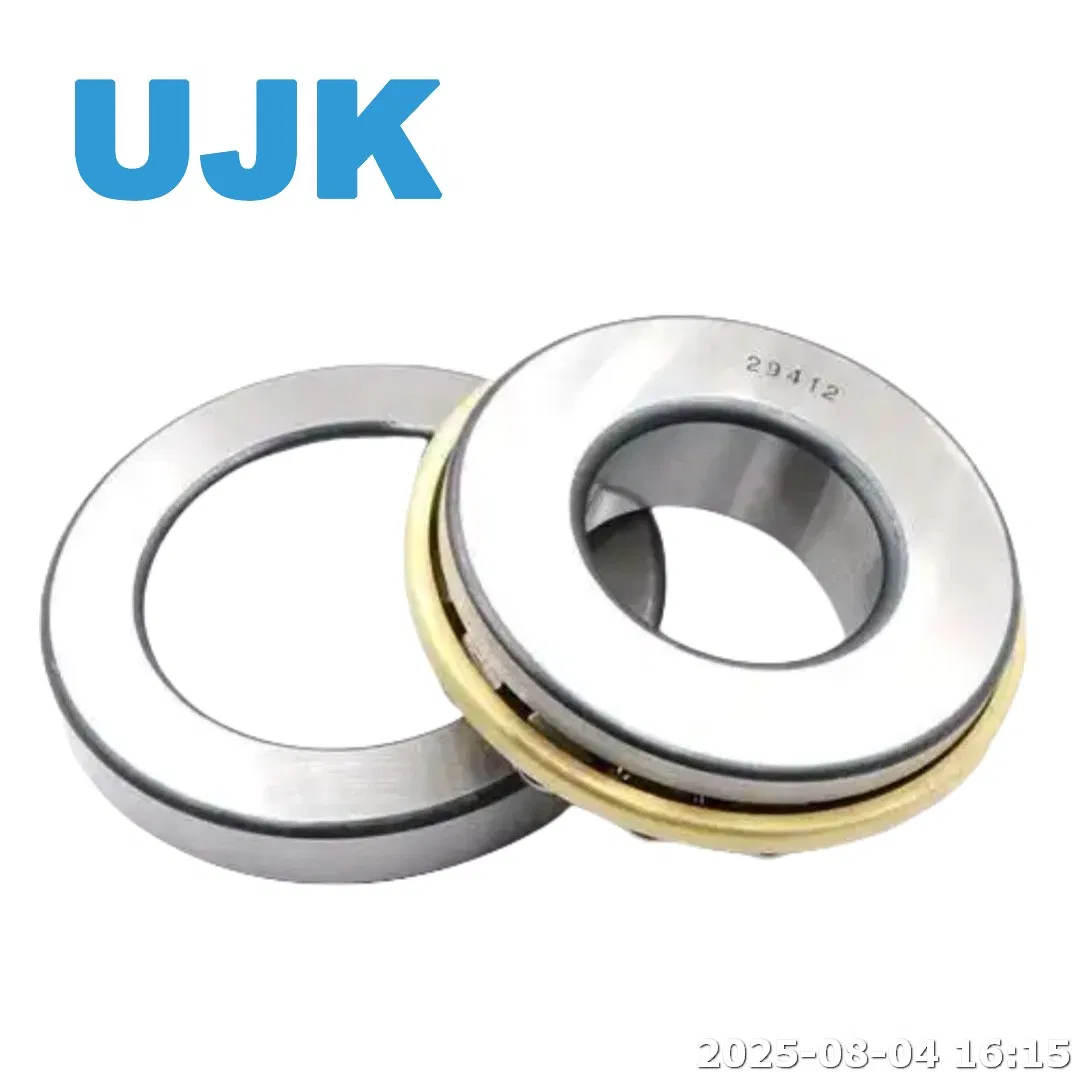

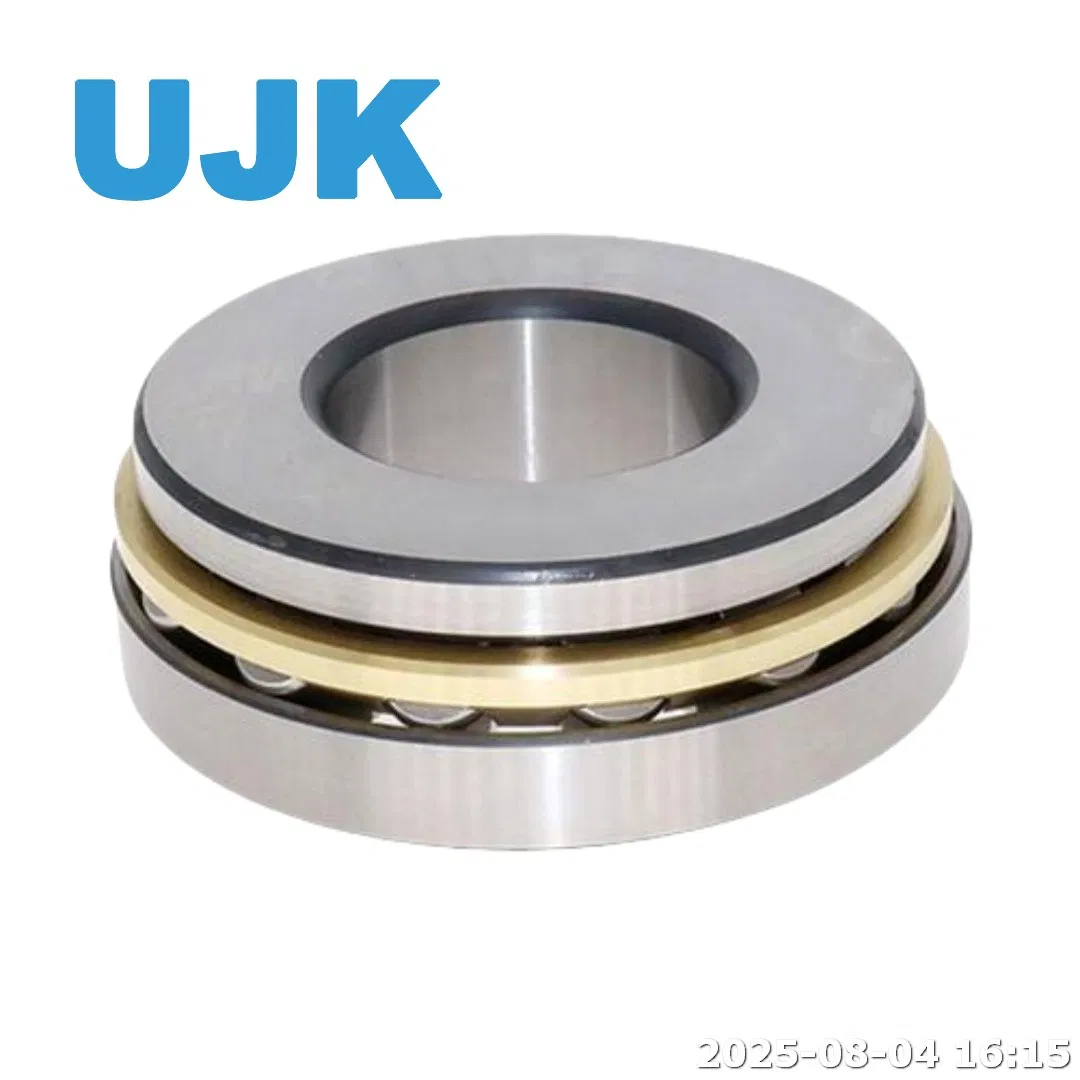

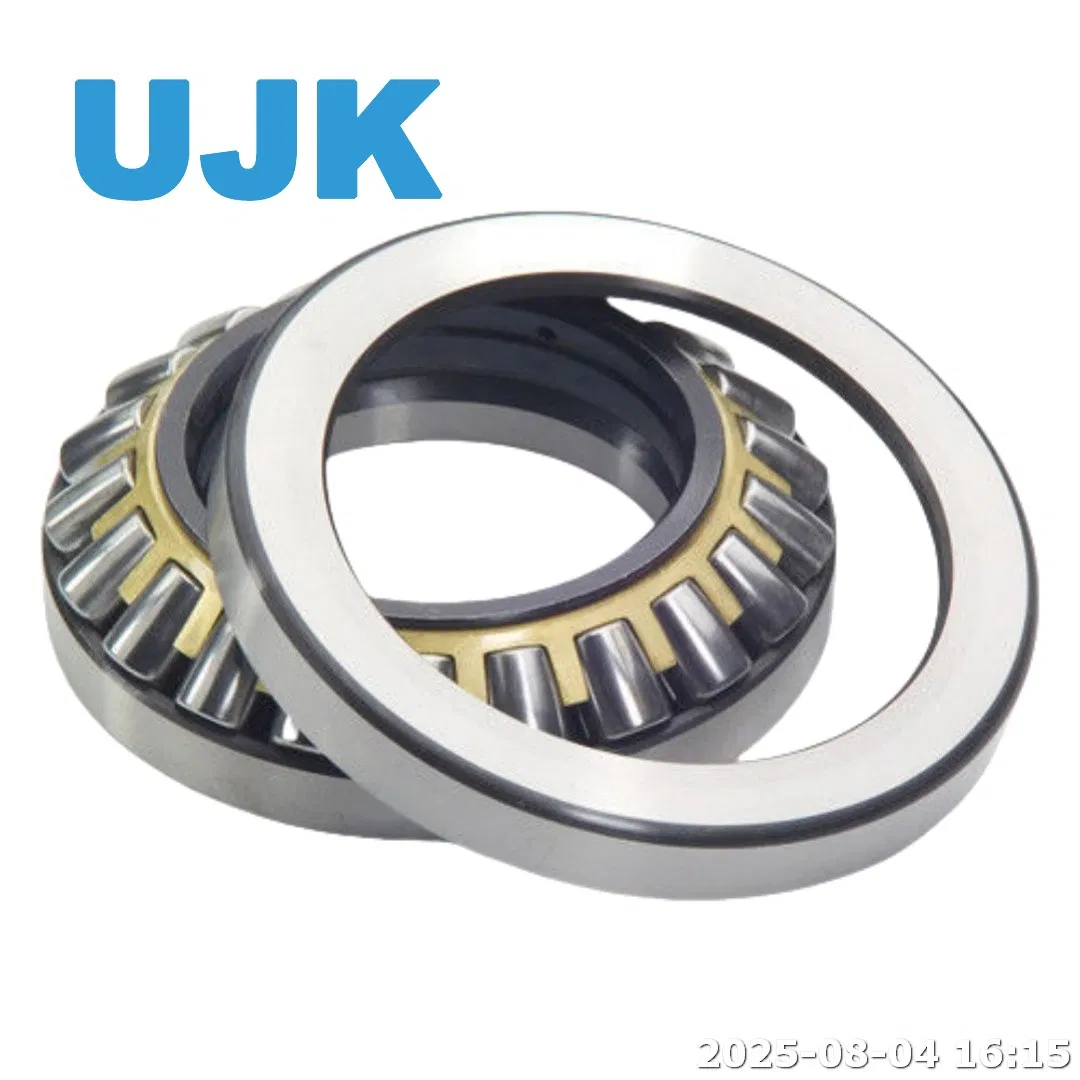

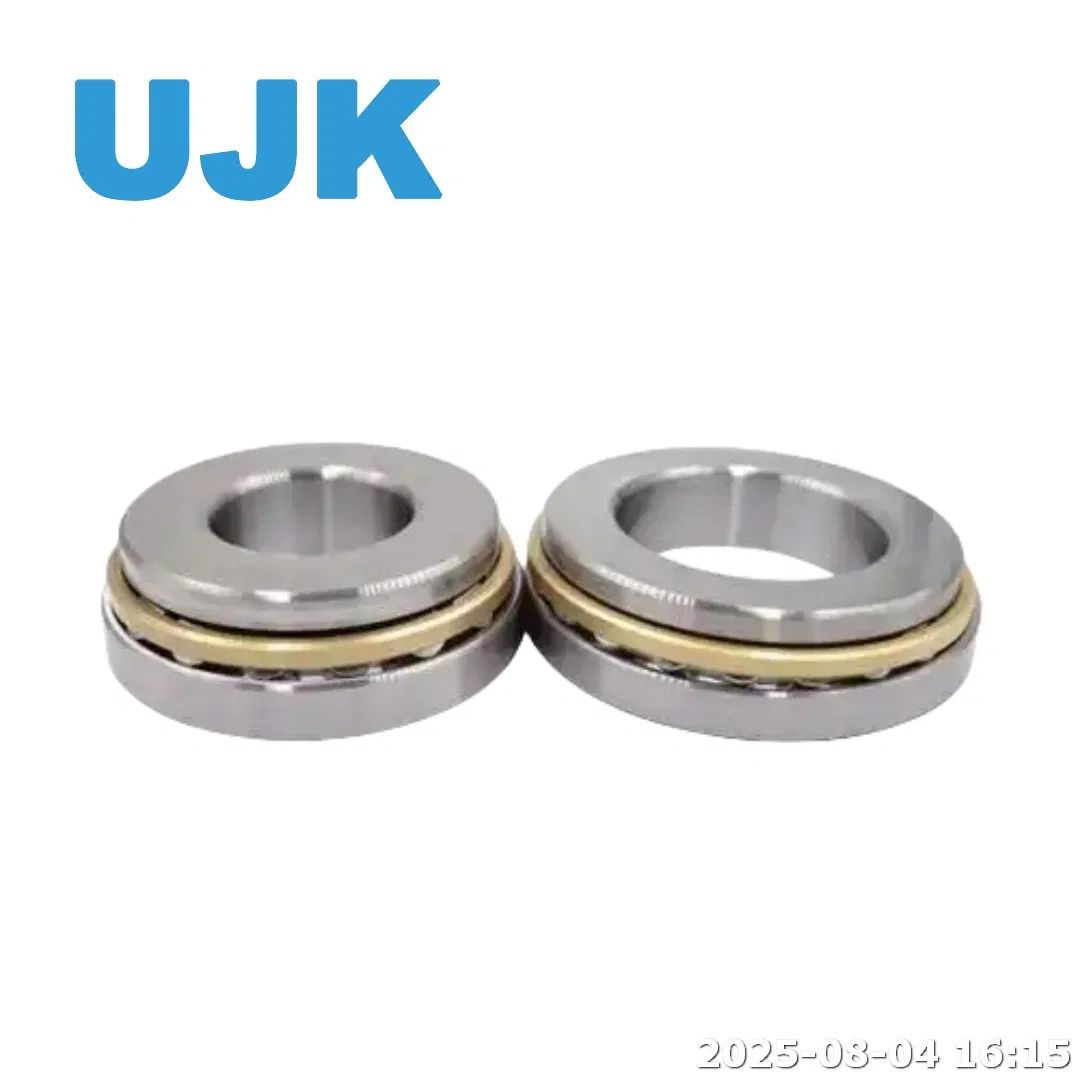

Product Overview: UJK Thrust Spherical Roller Bearing
Engineered for Heavy Axial Loads and Self-Alignment
The UJK Thrust Spherical Roller Bearing is a high-capacity axial bearing designed to accommodate heavy unidirectional thrust loads while compensating for shaft misalignment. Combining a spherical housing washer and asymmetrical barrel rollers, it delivers superior performance in applications requiring high axial rigidity, shock resistance, and operational reliability under misaligned conditions3.
Key Features & Benefits
Self-Aligning Capability
-
Compensates for ±2-3° misalignment via spherical housing washer raceway3.
-
Prevents edge loading and premature failure in bent shafts or uneven housings.
Exceptional Load Capacity
-
Asymmetrical barrel rollers optimize stress distribution.
-
Handles axial loads 30-50% higher than standard thrust ball bearings.
UJK Performance Enhancements
-
Premium bearing steel (HRC 60-64 hardness) with advanced heat treatment.
-
Machined brass cages for high-speed stability (up to 1,500 rpm)3.
-
Optimized roller profiles reduce friction and extend L10 fatigue life.
Robust Design Options
-
Open design: For centralized lubrication systems.
-
Sealed variants (2RS): Integrated rubber seals for contaminated environments.
-
Tapered bore options: For adapter sleeve mounting (suffix K).
Model & Dimension Specifications (Typical UJK Series)
| Model | Shaft Washer d (mm) | Housing Washer D (mm) | Height T (mm) | Dynamic Load (Ca) kN | Static Load (Coa) kN | Speed Limit (rpm) |
|---|---|---|---|---|---|---|
| UJK 29220 | 100 | 170 | 42 | 380 | 1,050 | 1,400 |
| UJK 29324 | 120 | 210 | 60 | 780 | 2,200 | 1,200 |
| UJK 29436 | 180 | 300 | 85 | 1,550 | 4,500 | 900 |
| UJK 29444 | 220 | 340 | 105 | 2,100 | 6,100 | 800 |
| UJK 29660 | 300 | 500 | 155 | 4,800 | 12,000 | 600 |
*Notes:
-
d: Shaft washer bore diameter
-
D: Housing washer outer diameter
-
T: Total bearing height
-
Load ratings per ISO 281 (mineral oil lubrication)*
