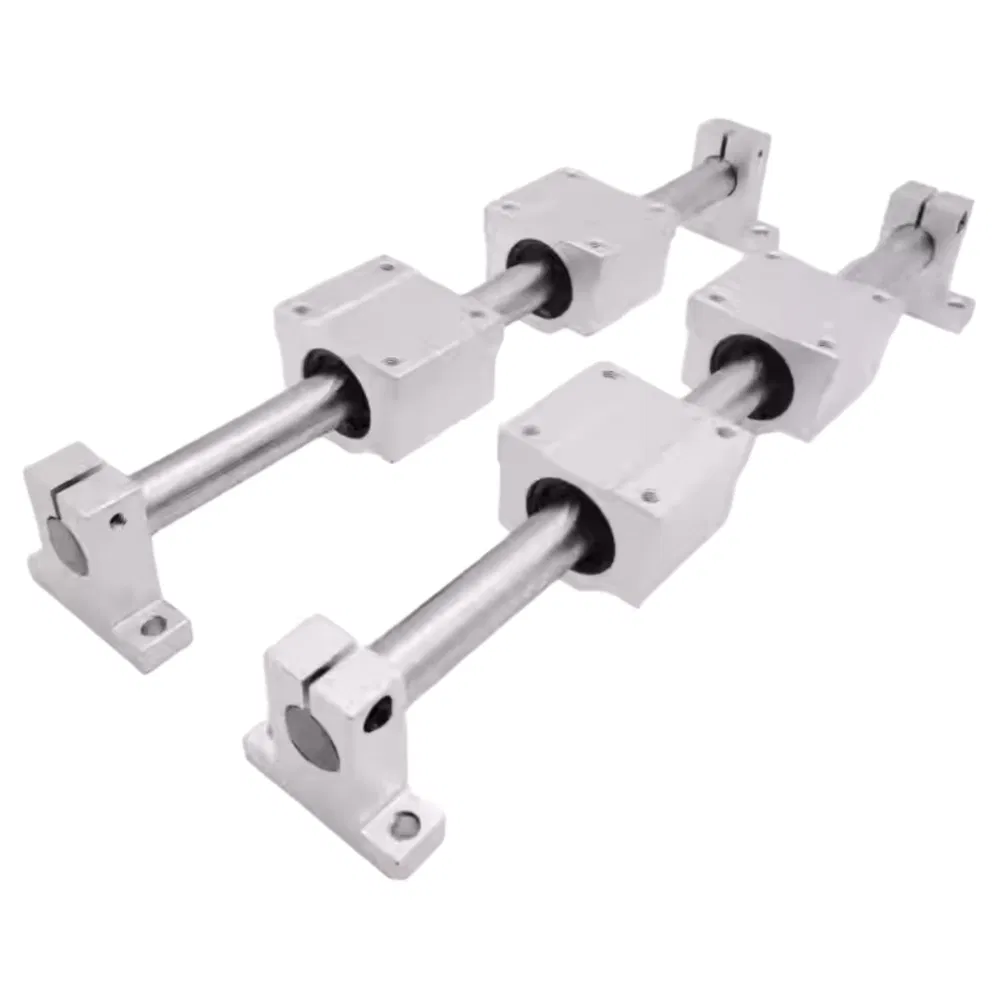

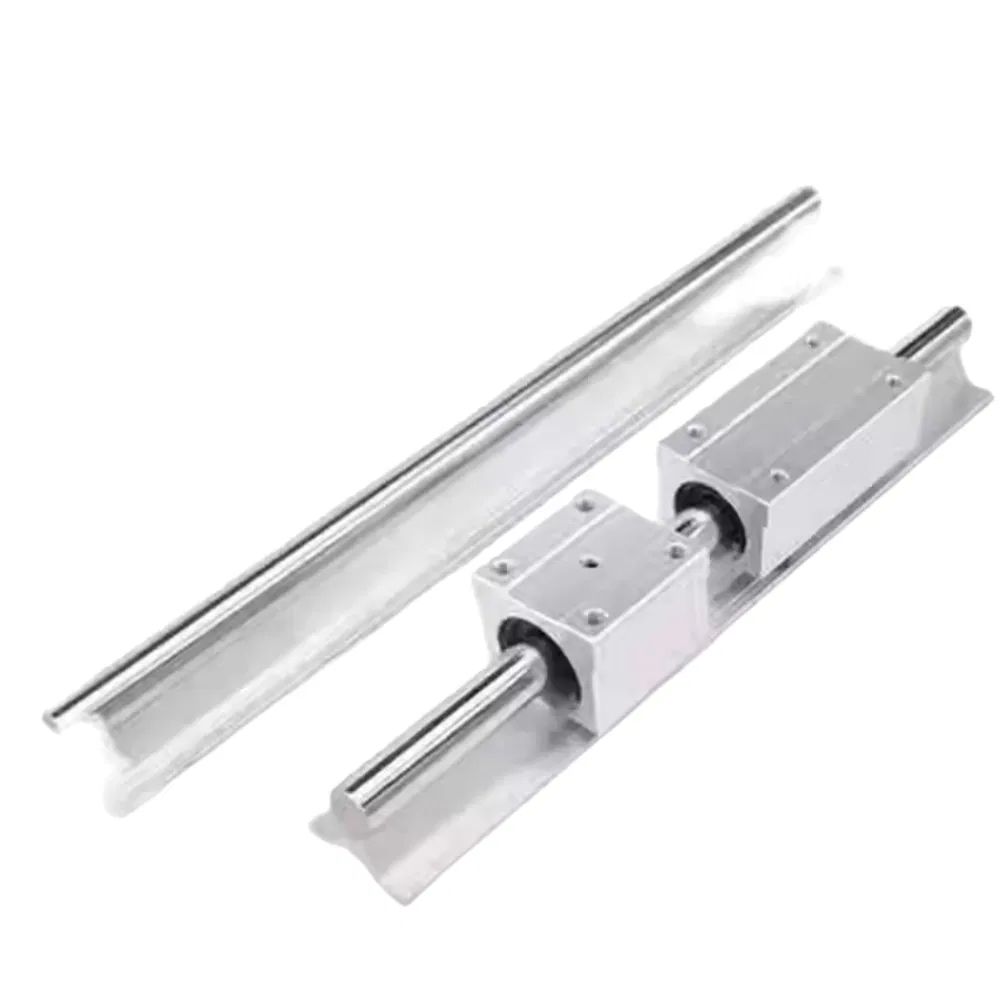

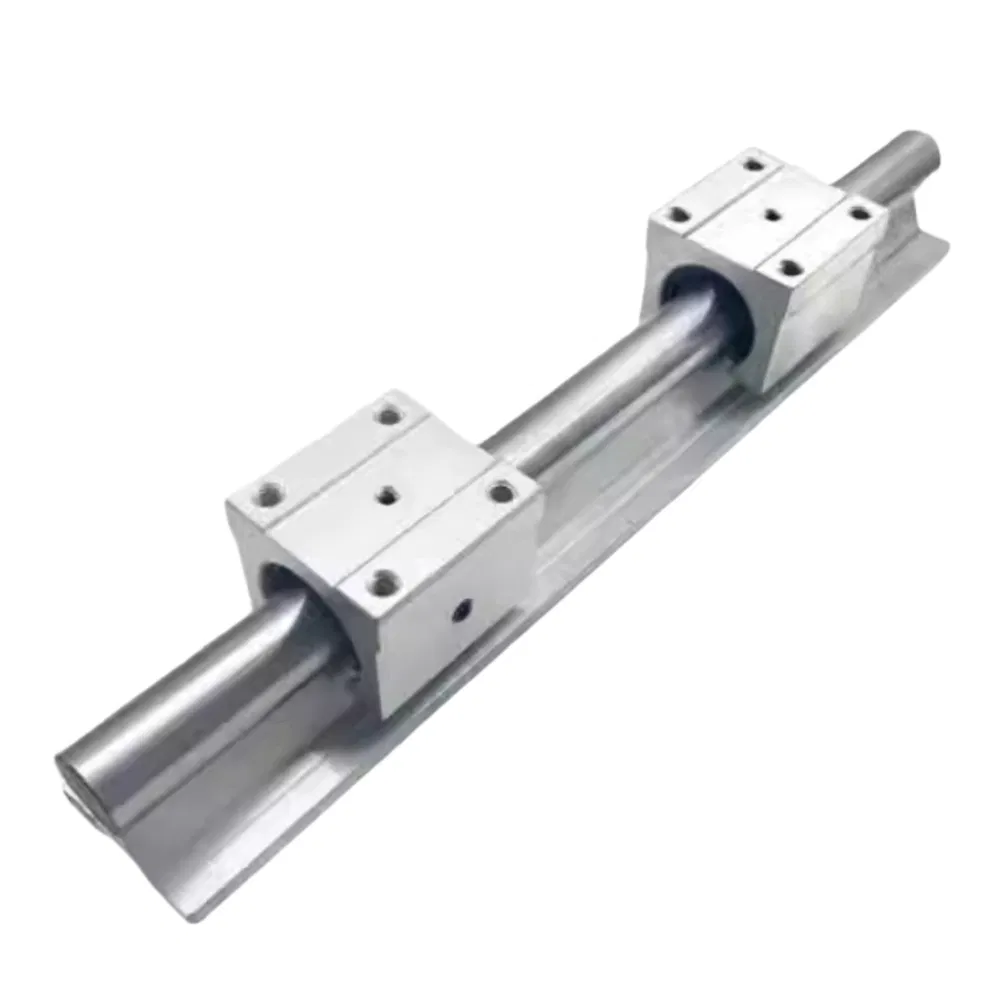

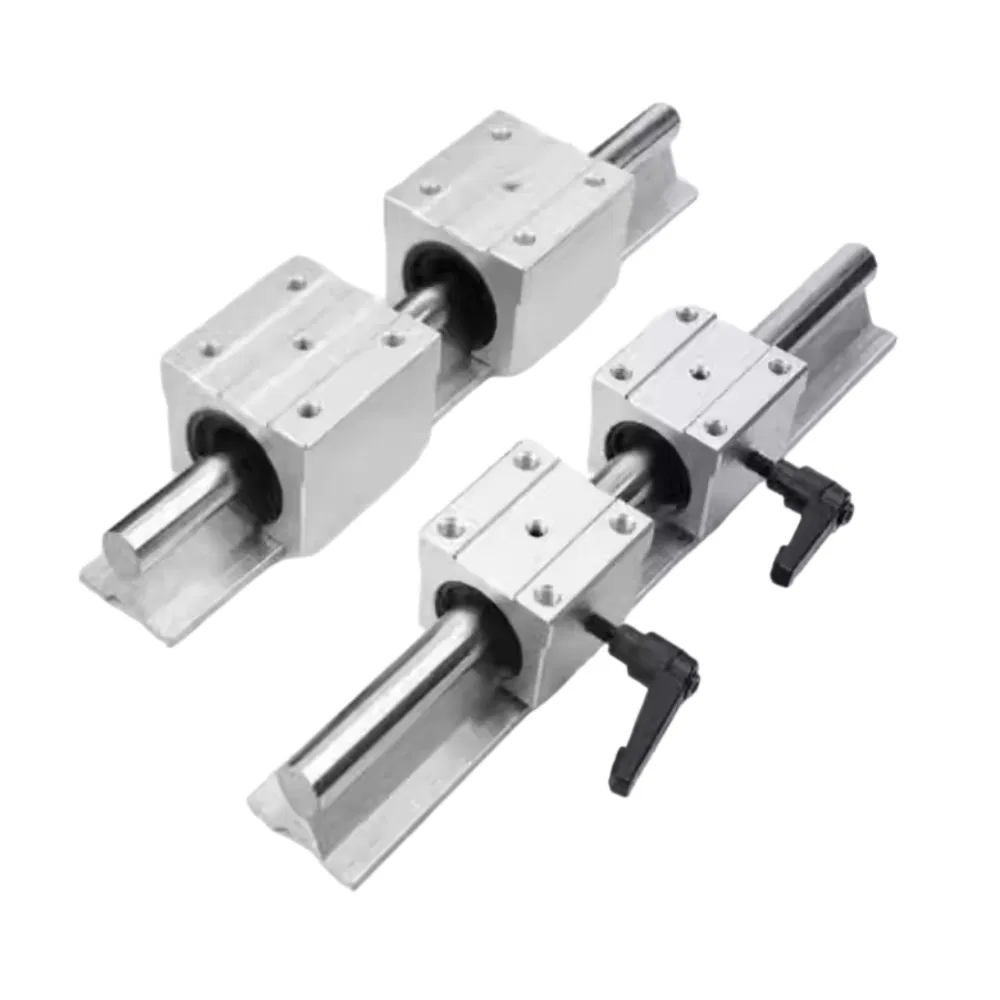

Aluminum Alloy Open Top Wire Locking Ring Support Rail Unit Linear Optical Axis Guide with Dedicated Bearing Seat

English Introduction to Linear Bearing Housing Units (SC, SCJ, and SCE Series)

Linear Bearing Housing Units are complete, ready-to-install assemblies that integrate a standard linear ball bearing into a robust, precision-machined housing. These units are designed for simplicity, durability, and ease of integration into machinery and automation systems. They eliminate the need to press a bearing into a custom-machined housing, significantly reducing design time, manufacturing costs, and assembly complexity.

The primary function of these units is to support and guide a hardened and ground shaft, providing smooth, low-friction linear motion. They are characterized by their split-type design, which allows for easy installation and removal from the shaft without disturbing other components.

Series Overview and Classification:

1. SC Series Standard Housing Units

• Description: The SC series represents the standard and most common type of linear housing unit. It typically features a cast iron or carbon steel housing, offering excellent strength and vibration damping properties. The design includes a split-type housing and a split-type linear ball bearing inside.

• Key Features:

  • Standard Duty: Balanced performance for a wide range of applications.

  • Split Design: The housing cap can be removed, allowing the unit to be clamped onto the shaft anywhere along its length. This simplifies assembly and maintenance.

  • Fixed Alignment: The bearing is rigidly seated within the housing, requiring accurate shaft alignment during installation.

• Common Model Suffixes:

  • SC...: Standard unit.

  • SC...L: A longer version, offering higher load capacity and improved rigidity for a given bore size.

2. SCE Series Self-Aligning Housing Units

• Description: The SCE series is a advanced variant designed to compensate for mounting inaccuracies. The key difference from the SC series is the incorporation of a spherical aligning seat between the outer ring of the bearing and the housing.

• Key Features:

  • Self-Alignment Capability: The internal spherical design allows the bearing to pivot slightly, automatically compensating for angular misalignment of the shaft (typically up to ±2°). This prevents binding and ensures smooth operation even if the mounting surfaces are not perfectly parallel.

  • Reduced Stress: By accommodating misalignment, it reduces edge loading on the bearing and shaft, extending service life.

  • Split Design: Retains the convenient split-type housing for easy installation.

• Common Model Suffixes:

  • SCE...: Standard self-aligning unit.

  • SCE...L: A longer, self-aligning version for higher load capacity.

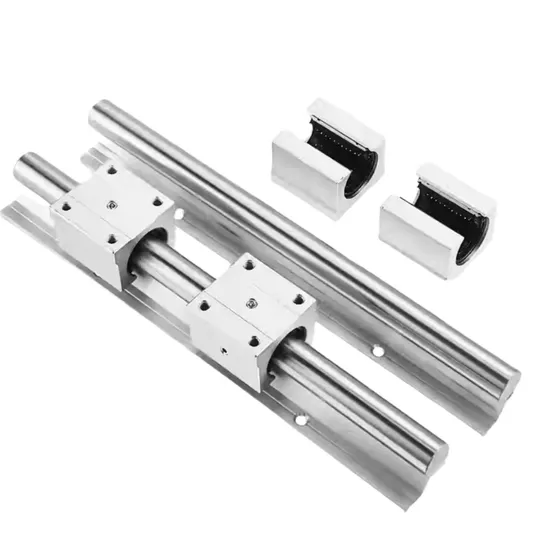

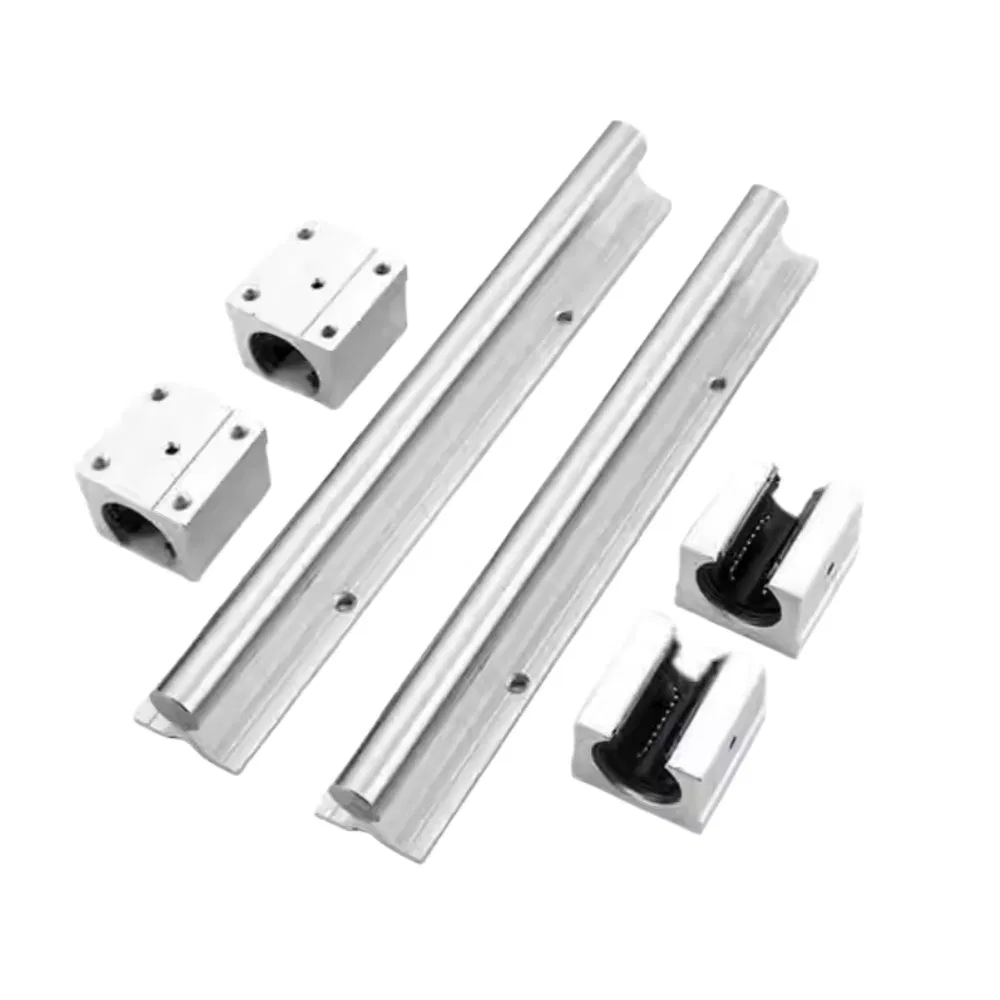

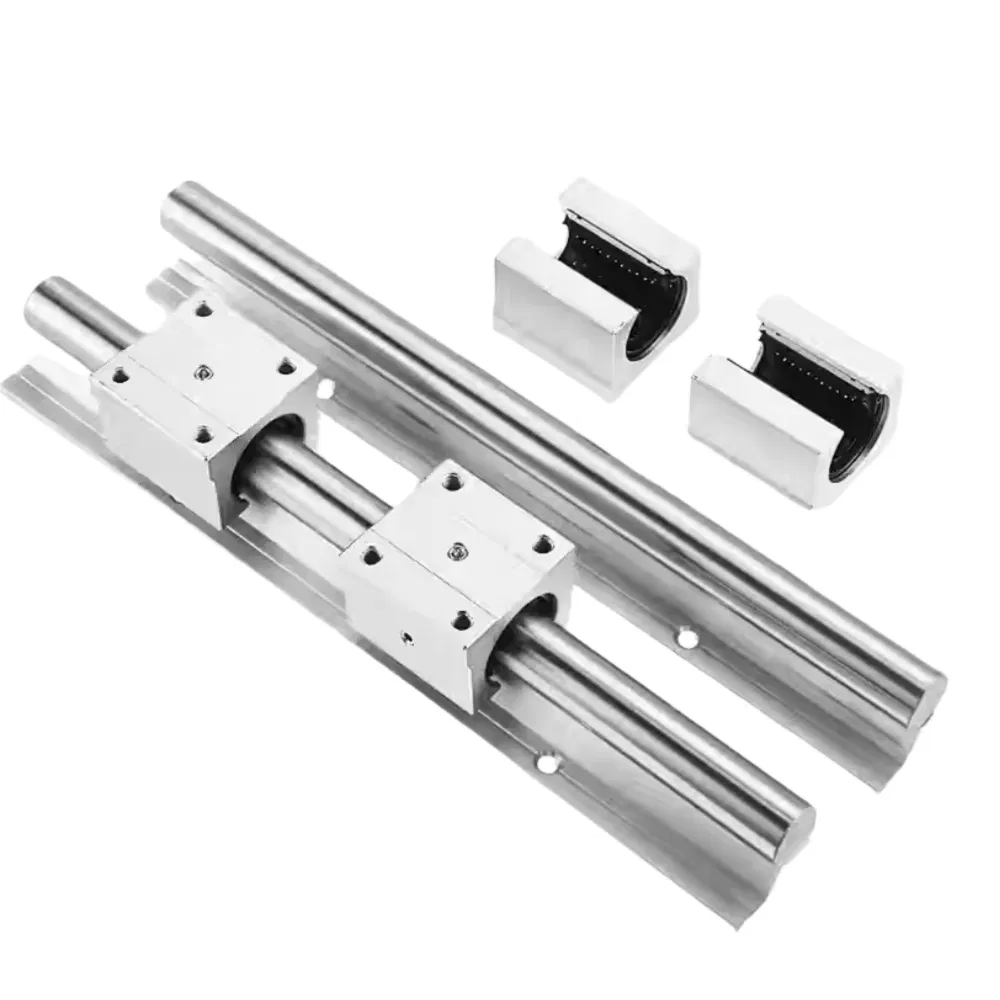

3. SCJ Series Open-Type Housing Units

• Description: The SCJ series features a unique open-type design. The housing has a large opening on the bottom and the integrated bearing is also open on its side.

• Key Features:

  • Radial Load Capacity: Specifically designed to support primarily radial loads (loads perpendicular to the shaft).

  • Shaft Support: The open design allows the unit to act as a simple support block for the shaft, often used in conjunction with other closed units.

  • Easy Mounting: The open nature makes it exceptionally easy to mount and dismount from the shaft.

  • Cost-Effective: Often a more economical choice for applications where the full radial support of a closed housing is not required.

Summary and Application Guide:

• For General Applications: Use the standard SC Series. It is the versatile, all-round choice for most machinery.

• For Imperfect Mounting Conditions: Use the SCE Series if there is a risk of shaft misalignment. This is critical for long travel lengths or on frames where precision machining is difficult.

• For Radial Loads and Simple Support: Use the SCJ Series as an end support or in applications where only radial loads are present and easy access is needed.
